16-port XG-PON and GPON combo Board for MA5800 series OLT CGHF

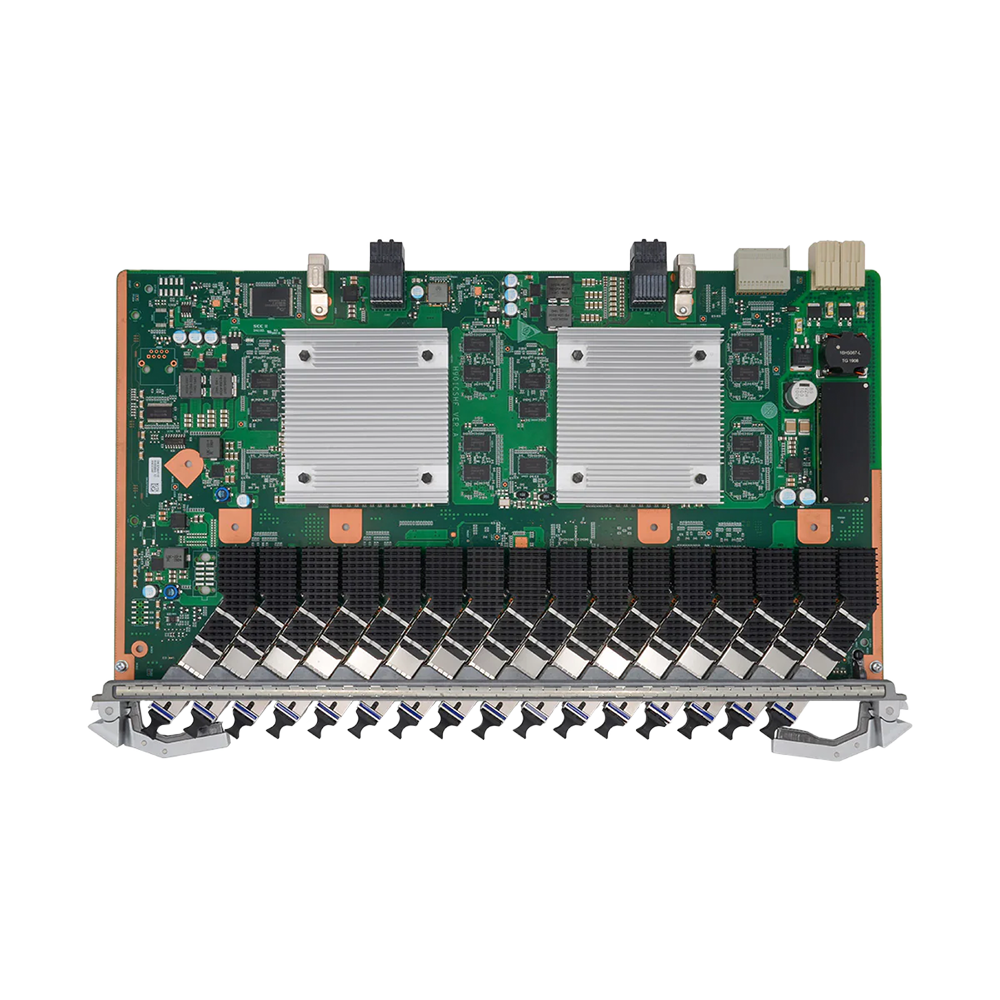

The H901CGHF board is an 16-port XG-PON and GPON Combo OLT interface board for Huawei SmartAX MA5800 series OLT including the MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

16 XG-PON&GPON ports (SFP+)
Maximum split ratio 1: 256
Port rate: GPON upstream: 1.244 Gbit/s
GPON downstream: 2.488 Gbit/s
XG-PON upstream: 2.488 Gbit/s
XG-PON downstream: 9.953 Gbit/s
Rate mode: Asymmetric rate
Forwarding capability: 200 Gbit/s

Kategori:
Specification
Service ports
GPON Port 16 XG-PON & GPON ports
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength GPON channel:
Tx: 1490 nm
Rx: 1310 nm
XG-PON channel:
Tx: 1577 nm
Rx: 1270 nm
Encapsulation Type SFP+
Port Rate GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON channel:
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
Minimum Output Optical Power GPON channel: 3 dBm
XG-PON channel: 4 dBm
Maximum Output Optical Power GPON channel: 7 dBm
XG-PON channel: 8 dBm
Maximum Receiver Sensitivity GPON channel: -32 dBm
XG-PON channel: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power GPON channel: -12 dBm
XG-PON channel: -9 dBm
Extinction Ratio 8.2 dB
Function
Forwarding capability 200 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON: 1024
XG-PON: 2048
Service flows per PON board 16352
Maximum frame size 2052 bytes
9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port 40 km
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 48 W
Maximum: 106 W
Operating temperature -40°C to +65°C
