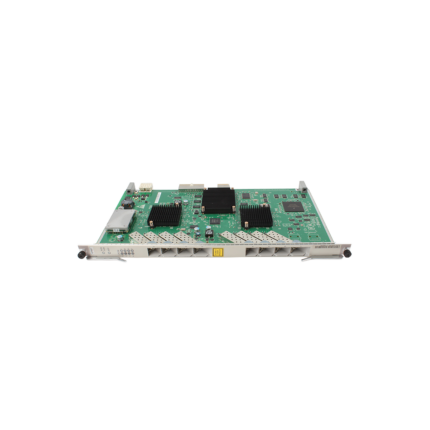

GPFD 16-port GPON OLT interface board with C++ SFP module

Huawei 16-GPON Port Interface Card with C+ SFP module

Apply to Huawei MA5683T, MA5680T, MA5608T OLT system

Available at 3 versions: H802GPFD, H803GPFD, H805GPFD

Support split ratio 1:128

Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s

Interface Type: SC/PC

Max Transmit Distance: 20KM

Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm



GPFD is a 16 port GPON interface card of Huawei OLT, provide GPON service access from ONT. GPFD can maximum access 16*128 GPON subscribers. GPFD has different part number like H80D00GPFD01, H80D00GPFD02 etc, but basically you only need to identity H802GPFD, H803GPFD, H805GPFD version, and with B+ or C+/C++ SFP module.

GPFD 16-port GPON OLT interface board with C++ SFP module
