Name: 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP GS1026PS2
Brand: Cudy
SKU: 970612
Price: 153.82 EUR
Availability: InStock

24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP GS1026PS2

153.82 €

GS1026PS2

Koha e arritjes së produktit : Sht 17, 2026 - Sht 18, 2026

Kodi i produktit : 970612 Kategori: Cudy, POE SWITCH - Cudy Brand: Cudy

Specification	Details
Model Version	GS1026PS2 1.0
1.25G SFP Slots	2× SFP Slots
Gigabit RJ45 Ports	26× Gigabit RJ45 Ports
Gigabit RJ45 PoE Ports	Ports #1~#24
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Notes	PoE ports comply with IEEE 802.3at/af standards
Extend Mode Ports	Ports #17~#24
LED Indicators	PowerDIP Mode (SW)PoE Status of Each PoE PortLink / ACT of Each Ethernet PortPoE Max Status
Physical Buttons	Default / Extend DIP SwitchPoE LED Toggle
PoE Watchdog Function	Enabled under Extend Mode to automatically reboot inactive connected clients
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
Optical Specification & Distance	Depends on the installed optical module
MAC Address Table	8192 Entries
Maximum Switching Capacity	56 Gbps
Maximum Forwarding Rate	41.664 Mpps
Packet Buffer	3 Mbit
Power Input Type	AC Inlet
Power Method	AC
Power Input	100-240V~, 50/60Hz
Power Supply	300W
Maximum Power Consumption (Without PoE)	20W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3x Flow Control802.3af PoE802.3at PoE
Grounding Method	Three-Prong Plug
EMS Protection	IEC/EN 61000-4-5 Level 4 Surge Protection:Power DM 2kV, CM 4kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	320 × 207 × 44 mm12.6 × 8.15 × 1.73 inches
Product Weight	1986 g (70.05 oz.)
Casing Material	Metal
Installation Method	DesktopRackmount via Brackets
Package Content	GS1026PS2Power CordMounting KitInstallation Guide
Retail Package Dimension	370 × 290 × 85 mm14.57 × 11.42 × 3.35 inches
Retail Package Weight	EU: 2534 g (89.38 oz.)
Carton Net Weight	EU: 12.7 kg (28 lbs)
Carton Gross Weight	EU: 13.6 kg (29.98 lbs)

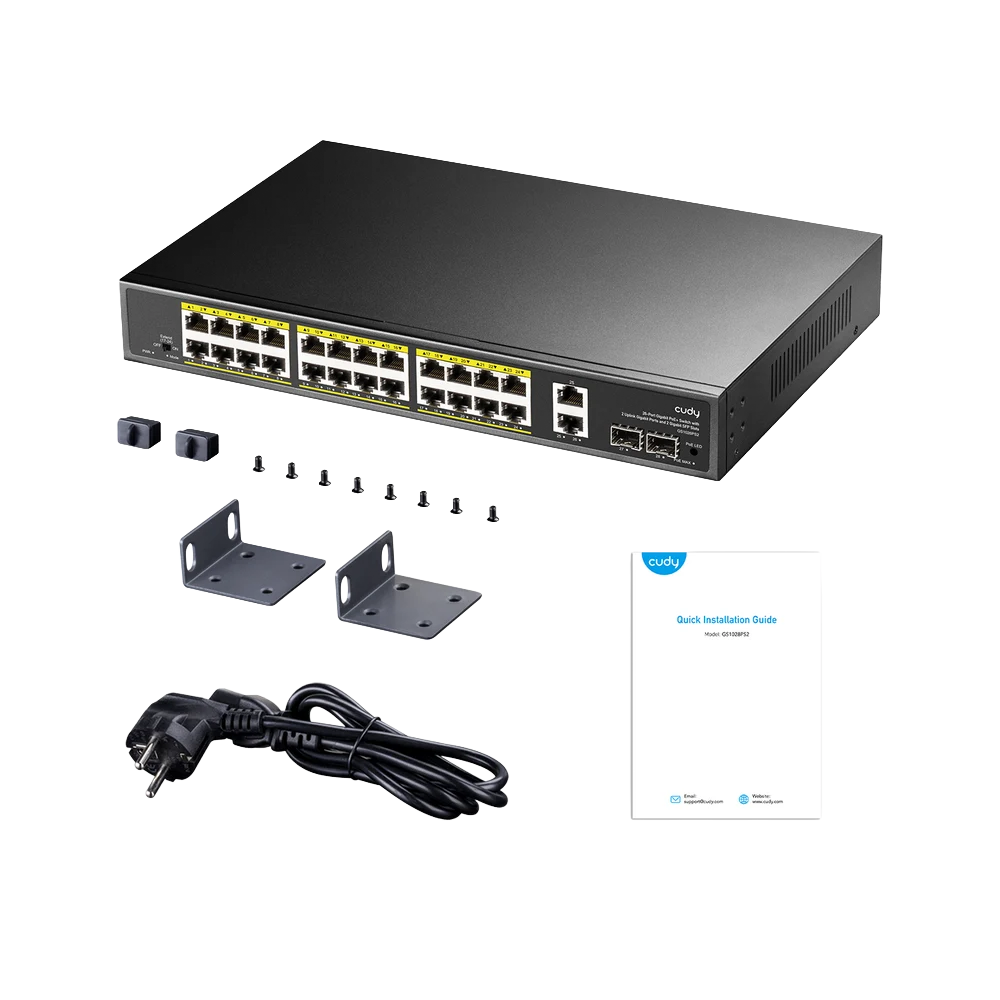

24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP GS1026PS2 - Figura 1

24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP GS1026PS2 - Figura 2

Click to enlarge

24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP GS1026PS2

Përshkrim

GS1026PS2 1.0 është një switch Gigabit PoE i menaxhueshëm me 26 porta, i projektuar për sisteme profesionale të kamerave IP, access point dhe rrjete të biznesit. Pajisja ofron 24× Gigabit PoE Ports, 2× 1.25G SFP Uplink Ports, fuqi totale deri në 300W, si dhe funksione praktike si Extend Mode me PoE Watchdog për transmetim deri në distanca të zgjatura. Me kapacitet switching deri në 56 Gbps, kasë metalike dhe mbështetje rackmount, është zgjidhje ideale për instalime profesionale me shumë pajisje PoE.

Specifications

Specification	Details
Model Version	GS1026PS2 1.0
1.25G SFP Slots	2× SFP Slots
Gigabit RJ45 Ports	26× Gigabit RJ45 Ports
Gigabit RJ45 PoE Ports	Ports #1~#24
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Notes	PoE ports comply with IEEE 802.3at/af standards
Extend Mode Ports	Ports #17~#24
LED Indicators	PowerDIP Mode (SW)PoE Status of Each PoE PortLink / ACT of Each Ethernet PortPoE Max Status
Physical Buttons	Default / Extend DIP SwitchPoE LED Toggle
PoE Watchdog Function	Enabled under Extend Mode to automatically reboot inactive connected clients
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
Optical Specification & Distance	Depends on the installed optical module
MAC Address Table	8192 Entries
Maximum Switching Capacity	56 Gbps
Maximum Forwarding Rate	41.664 Mpps
Packet Buffer	3 Mbit
Power Input Type	AC Inlet
Power Method	AC
Power Input	100-240V~, 50/60Hz
Power Supply	300W
Maximum Power Consumption (Without PoE)	20W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3x Flow Control802.3af PoE802.3at PoE
Grounding Method	Three-Prong Plug
EMS Protection	IEC/EN 61000-4-5 Level 4 Surge Protection:Power DM 2kV, CM 4kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	320 × 207 × 44 mm12.6 × 8.15 × 1.73 inches
Product Weight	1986 g (70.05 oz.)
Casing Material	Metal
Installation Method	DesktopRackmount via Brackets
Package Content	GS1026PS2Power CordMounting KitInstallation Guide
Retail Package Dimension	370 × 290 × 85 mm14.57 × 11.42 × 3.35 inches
Retail Package Weight	EU: 2534 g (89.38 oz.)
Carton Net Weight	EU: 12.7 kg (28 lbs)
Carton Gross Weight	EU: 13.6 kg (29.98 lbs)

DATASHEET
