Name: 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports GS1010P
Brand: Cudy
SKU: 9436
Price: 40.02 EUR
Availability: InStock

8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports GS1010P

40.02 €

GS1010P

Koha e arritjes së produktit : Sht 18, 2026 - Sht 21, 2026

Kodi i produktit : 9436 Kategori: Cudy, POE SWITCH - Cudy Brand: Cudy

Specification	Details
Model Version	GS1010P 1.0
Gigabit RJ45 Ports	10× Gigabit RJ45 Ports
Gigabit RJ45 PoE Ports	Ports #1~#8
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Management	PoE ports comply with IEEE 802.3at/af standards
Extend Mode Ports	Ports #7~#8
VLAN Mode Ports	Ports #1~#8
LED Indicators	PowerSpeed / Link / ACT of Each Ethernet PortPoE Status of Each PoE Port
Physical Switch	VLAN / Default / Extend DIP Switch
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
MAC Address Table	2048 Entries
Maximum Switching Capacity	20 Gbps
Maximum Forwarding Rate	14.88 Mpps
Jumbo Frame	2 KB
Packet Buffer	448 Kbit
Power Input Type	AC Inlet
Power Method	AC
Power Input	100-240V~, 50/60Hz
Power Supply	120W
Maximum Power Consumption (Without PoE)	10W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3x Flow Control802.3af PoE802.3at PoE
Grounding Method	Three-Prong Plug
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	220 × 150 × 44 mm8.66 × 5.91 × 1.73 inches
Product Weight	630 g (22.22 oz.)
Casing Material	Metal
Installation Method	DesktopRackmount via Brackets (Brackets not included)
Package Content	GS1010PPower CordInstallation Guide
Retail Package Dimension	245 × 190 × 60 mm9.65 × 7.48 × 2.36 inches
Retail Package Weight	EU: 936 g (33.02 oz.)
Units per Carton	16 Units
Carton Net Weight	EU: 15.0 kg (33.07 lbs)
Carton Gross Weight	EU: 15.5 kg (34.17 lbs)
Carton Dimension	51.4 × 42.9 × 27.2 cm20.24 × 16.89 × 10.71 inches

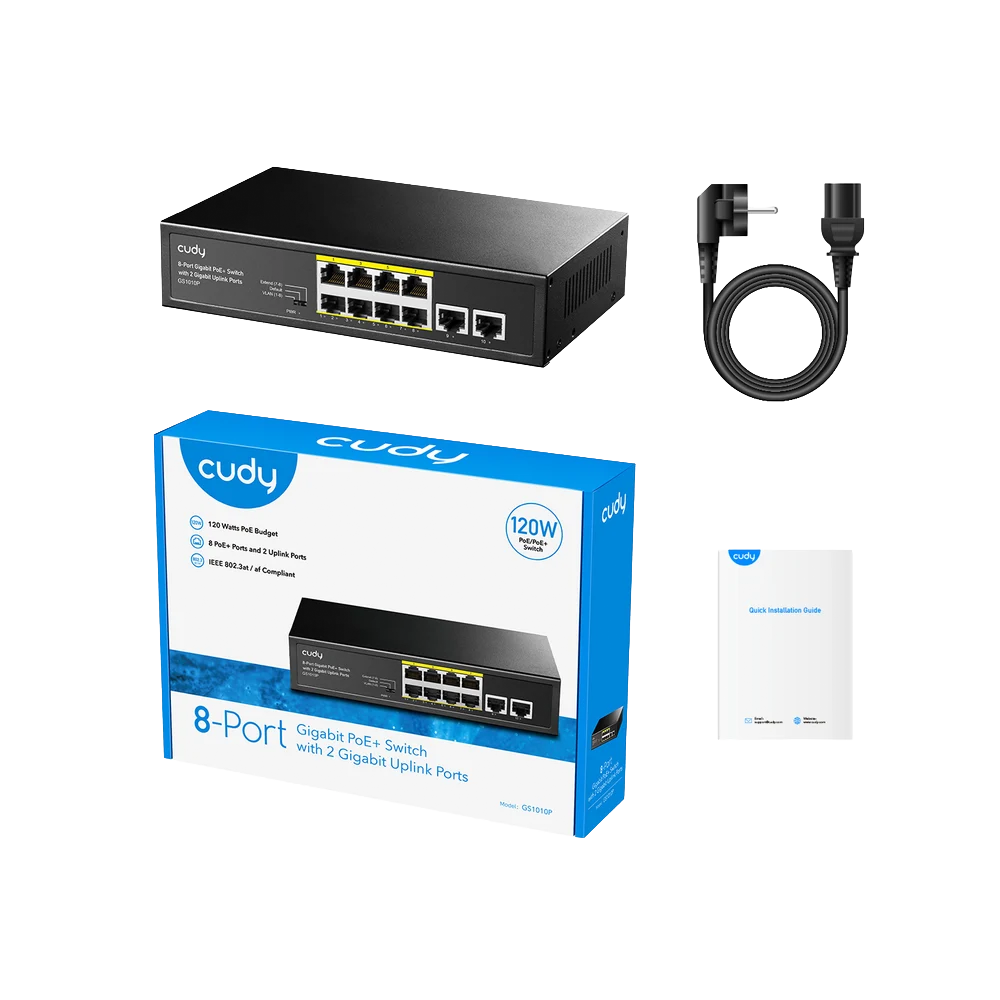

8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports GS1010P - Figura 1

8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports GS1010P - Figura 2

Click to enlarge

8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports GS1010P

Përshkrim

GS1010P 1.0 është një switch Gigabit PoE me 10 porta, i projektuar për sisteme të monitorimit IP, access point dhe rrjete të vogla profesionale. Pajisja ofron 8× Gigabit PoE Ports me mbështetje IEEE 802.3af/at, fuqi deri në 30W për port, si dhe funksione praktike si Extend Mode dhe VLAN Mode për konfigurime fleksibile të rrjetit. Me 20 Gbps switching capacity, kasë metalike dhe mundësi instalimi desktop ose rackmount, është zgjidhje e përshtatshme për instalime profesionale me kërkesa të larta për stabilitet.

Specifications

Specification	Details
Model Version	GS1010P 1.0
Gigabit RJ45 Ports	10× Gigabit RJ45 Ports
Gigabit RJ45 PoE Ports	Ports #1~#8
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Management	PoE ports comply with IEEE 802.3at/af standards
Extend Mode Ports	Ports #7~#8
VLAN Mode Ports	Ports #1~#8
LED Indicators	PowerSpeed / Link / ACT of Each Ethernet PortPoE Status of Each PoE Port
Physical Switch	VLAN / Default / Extend DIP Switch
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
MAC Address Table	2048 Entries
Maximum Switching Capacity	20 Gbps
Maximum Forwarding Rate	14.88 Mpps
Jumbo Frame	2 KB
Packet Buffer	448 Kbit
Power Input Type	AC Inlet
Power Method	AC
Power Input	100-240V~, 50/60Hz
Power Supply	120W
Maximum Power Consumption (Without PoE)	10W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3x Flow Control802.3af PoE802.3at PoE
Grounding Method	Three-Prong Plug
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	220 × 150 × 44 mm8.66 × 5.91 × 1.73 inches
Product Weight	630 g (22.22 oz.)
Casing Material	Metal
Installation Method	DesktopRackmount via Brackets (Brackets not included)
Package Content	GS1010PPower CordInstallation Guide
Retail Package Dimension	245 × 190 × 60 mm9.65 × 7.48 × 2.36 inches
Retail Package Weight	EU: 936 g (33.02 oz.)
Units per Carton	16 Units
Carton Net Weight	EU: 15.0 kg (33.07 lbs)
Carton Gross Weight	EU: 15.5 kg (34.17 lbs)
Carton Dimension	51.4 × 42.9 × 27.2 cm20.24 × 16.89 × 10.71 inches
