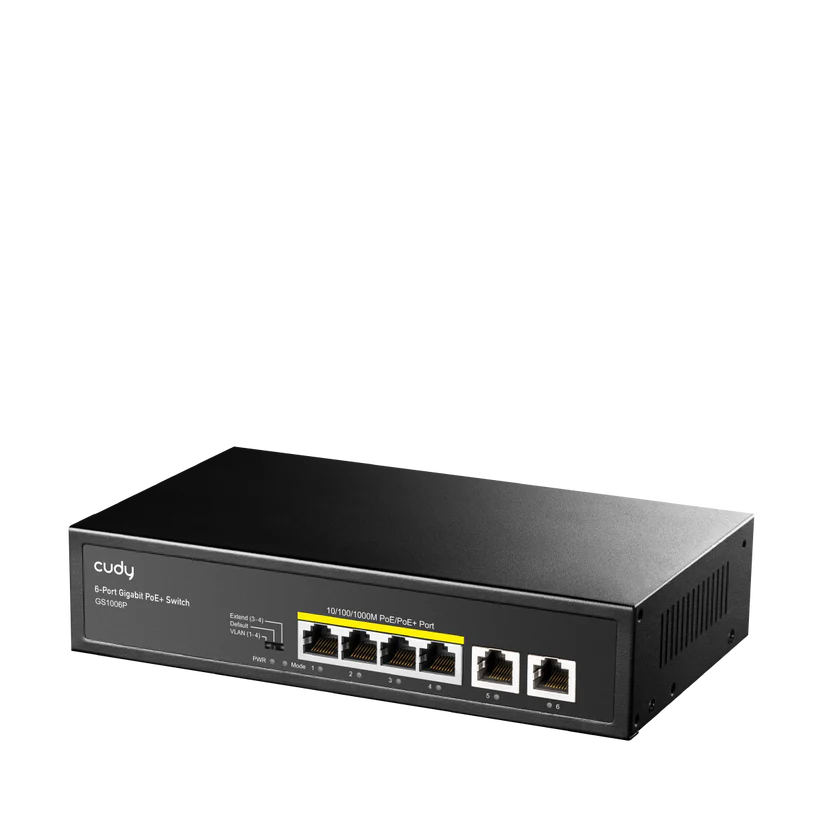

4-GbE PoE Switch with 2 Uplink GbE (GS1006P)


42.03

A rack-mounted 6-GbE PoE switch with a 65W power supply and a silent cooling system.


  •  4× GbE with 802.3at/af Mode A PoE
  •  2× Uplink GbE
  •  65W Power Supply
  •  Default/VLAN/Extend Modes
  •  Watchdog under VLAN or Extend Modes
  •  Desktop, Rack-Mount
  •  200×118×44 mm (7.87×4.65×1.73”)
Kodi i produktit : 9679 Kategori: ,
Model Version GS1006P 2.0
Interfaces Physical Buttons VLAN/Default/Extend DIP Switch
Gigabit RJ45 Ports 2
Gigabit RJ45 PoE Ports 4
Max Power on a Single PoE Port 30W
PoE Port Notes PoE ports support 802.3at/af standards.
Extend Mode Ports #3~#4
VLAN Mode Ports #1~#4
LED
  • Power
  • DIP Mode (SW)
  • Link/ACT of Each Ethernet Port
Power Input AC Inlet
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table 2048
Max Switching Capacity 12 Gbps
Max Forwarding Rate 8.928 Mpps
Jumbo Frame 9 KB
Packet Buffer 1 Mbit
Power Power Methods AC
AC 100-240V 50/60Hz
Max Power Consumption 65W
Max Power Excluding PoE 5W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-T
  • 802.3ab 1000BASE-T
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Port Management Watchdog
Port Management Note The Watchdog is on under the VLAN/Extend modes and will attempt to reboot the plugged-in but inactive client.
Reliability Grounding Methods Three-Prong Plug
Lightning/Surge Protection 4kV
ESD Contact Protection 6kV
ESD Air Protection 8kV
Environment Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Mechanical Dimension 200×118×44 mm
7.87×4.65×1.73 inches
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets
