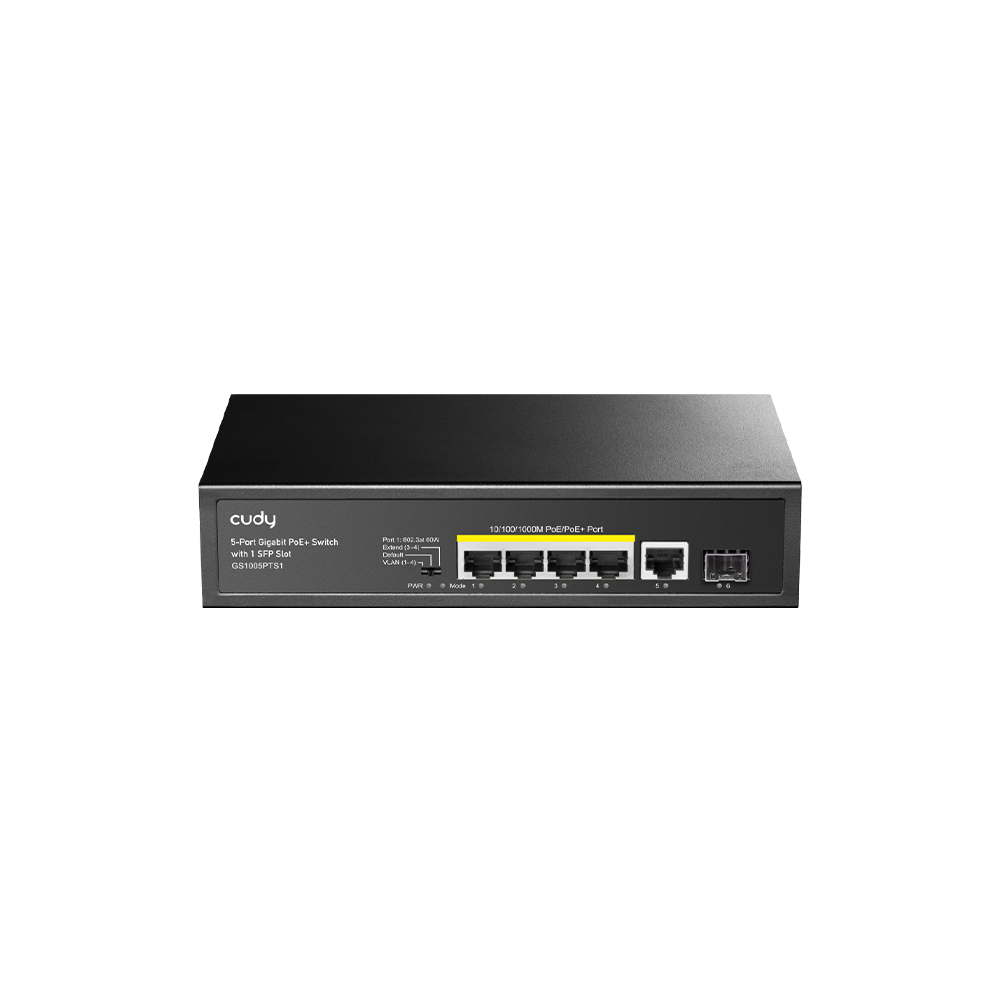

5-Port Gigabit PoE+ Switch with 1 SFP Port 120W (GS1005PTS1)


GS1005PTS1
● 120 watts PoE power supply
● 4 Gigabit PoE ports and 1 Gigabit Ethernet ports 1Gigabit SFP
● Extend mode support remote PoE feeding up to 250m
● VLAN mode isolate each PoE Ports for security
● Watchdog reactivates the abnormalPD by resuming POE power
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed
DATASHEET

35.45  44.13



Model GS1005PTS1
Ethernet 4*10/100/1000M PoE Port

1*1000M RJ45 Port

1* Gigabit SFP Uplink Port

Switching Capacity 12Gbps
Throughput 8.928Mpps
Packet Buffer 1Mb
MAC Address 2K
Jumbo Frame 9216bytes
Transfer Mode Store and forward
MTBF 100000 hour
Network protocol IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol IEEE802.3af (15.4W)

IEEE802.3at (30W)

IEEE802.3at (4 Pair 60W)

Network Medium 10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

Optical Media Multimode fiber : 50/125, 62.5/125, 100/140μm

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Working Environment Working Temperature:-20~50°C

Storage Temperature:-40~85°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Working Height:Maximum10,000 feet

Storage heigh:Maximum 10,000 feet

PWR(power supply) Lighting:Powered

Un-Light:No Power

Mode(DIP) Lighting:VLAN

Un-Light:Default

Flashing:Extend

1-6 Gree(Link&Data) Lighting:Connecting

Flashing:Data Transmit

Un-Light:Disconnect

DIP Switch VLAN:Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

Extend:Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Product Dimension 200*118*44mm
Package Dimension 245*190*60mm
N.W 0.6kg
G.W 0.9kg
Packing Info Carton MEAS:505*320*402mm

Packing Qty:20units

Packing Weight:19KG

Package List Input Voltage :AC 100-240 V



Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
