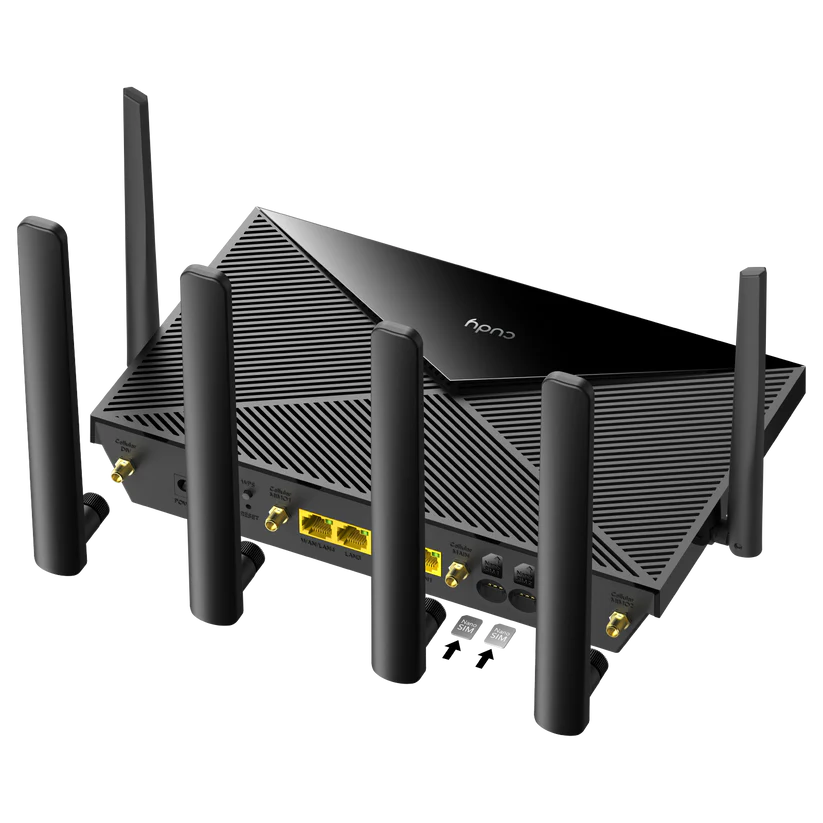

4G Cat 12 AC1200 Wi-Fi Router ( LT12 )


A 4G LTE Advanced Pro WiFi router with dual nano SIM slots and four GbE, providing high-performance and flexible networks for home, office, surveillance, exhibitions, and RV scenarios.


  •  4G Cat. 12 with Max 600 Mbps DL
  •  DL 3-Carrier Aggregation, 4×4 MIMO
  •  4-Stream Dual-Band Wi-Fi 5
  •  4× Gigabit Ethernet Ports
  •  2× Nano SIM Slots
  •  Detachable Cellular Antennas
  •  Cudy Mesh, VPN Server and Client
  • DATASHEET

157.62

Model Version LT12 1.0
CPU Chipset MT7621DAT+MT7613BEN+MT7603EN
CPU Details 880 MHz Dual-Core, MIPS1004Kc
Memory/Stroage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Cellular Celluar Standards 4G LTE Cat. 12
Cellular Antennas 4× Detachable
Detachable Cellular Antennas Connector SMA Female
SIM Options 2× Nano SIM Slots
Available Versions Version EU, US
EU Suitable Region Europe, Middle East, Africa, Australia, Brazil
EU Max DL Speed 600 Mbps (LTE-FDD), 430 Mbps (LTE-TDD)
EU Max UL Speed 150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD)
EU Cellular Features DL 3CA, DL 4×4 MIMO
EU Celluar Bands LTE-FDD: B1/3/5/7/8/20/28/
LTE-TDD: B38/40/41
WCDMA: B1/3/5/8
US Suitable Region United States, Canada
US Max DL Speed 600 Mbps (LTE-FDD), 430 Mbps (LTE-TDD)
US Max UL Speed 150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD)
US Cellular Features DL 3CA, DL 4×4 MIMO
US Celluar Bands LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71
LTE-TDD: B41/48
Wireless 5 GHz Wi-Fi Speed 867 Mbps
Wi-Fi Bands EU
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
5 GHz Anntenna Gain Max 5.18dBi
2.4 GHz Antenna Gain Max 3.16dBi
Detachable Wi-Fi Antennas Connector RP-SMA Female
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Wi-Fi Transmission Power
  • CE:
    <20 dBm (2.4 GHz)
    <23 dBm (5.15 GHz ~ 5.35 GHz)
  • FCC:
    <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)
    <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz)
Range Performance Max: 120 m (394 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Two wooden walls with thickness < 3.8 cm (1.5”)
One concrete wall with thickness < 20 cm (7”)
Interfaces Physical Buttons
  • WPS Button
  • Reset Button
Gigabit RJ45 Ports 4
Ethernet Notes One port supports WAN/LAN configuration, and the rest are LAN ports
LED
  • Power
  • Internet
  • Wi-Fi
  • Cellular
Power Input DC Jack
Power Power Methods DC
DC 12V 1.5A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
Reliability ESD Air Protection 4kV
ESD Contact Protection 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Package Content
  • Main Product
  • Detachable Antennas
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Mechanical Dimension 253×152.5×48.2 mm
9.96×6×1.9 inches
Installation
  • Desktop
  • Wall-Mounting
