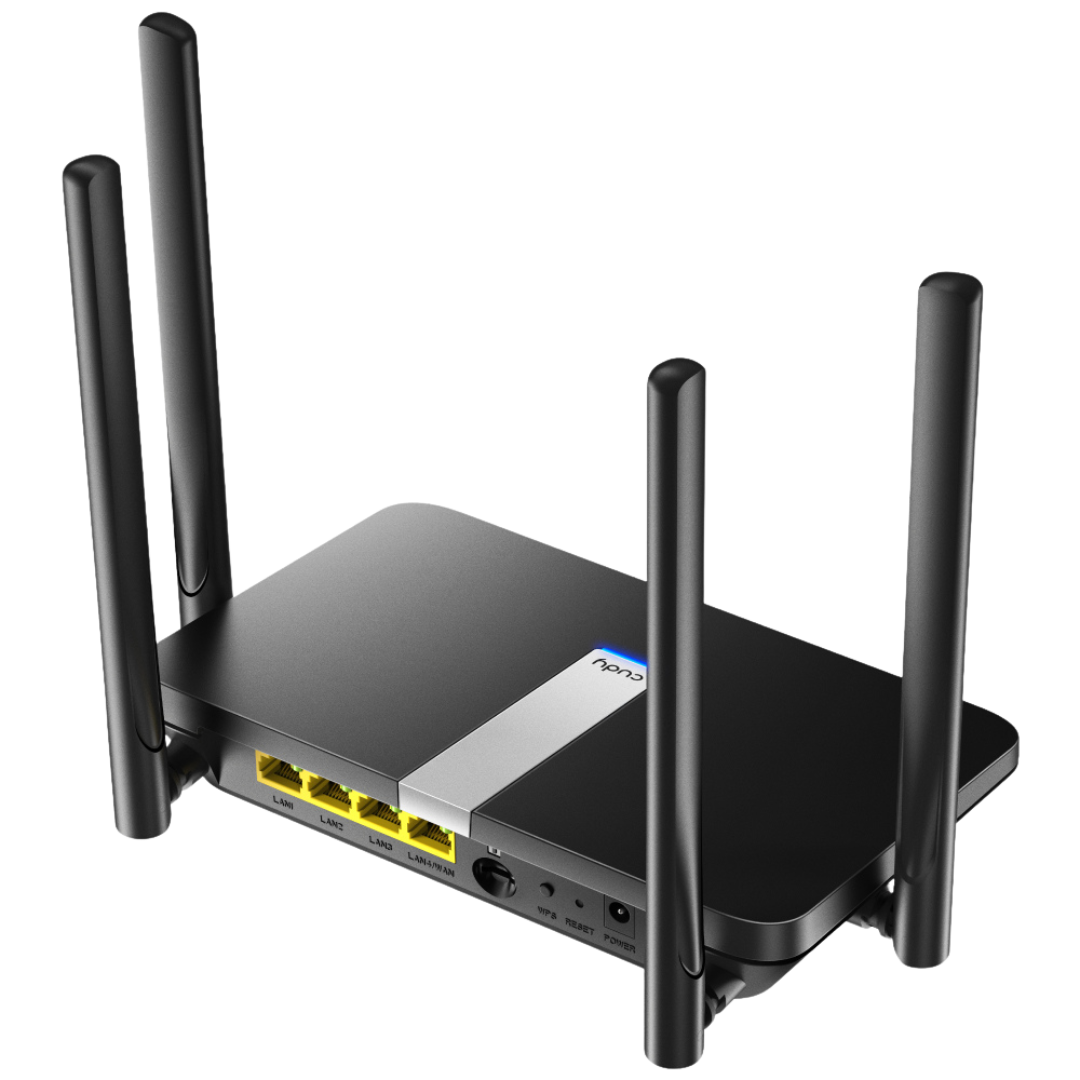

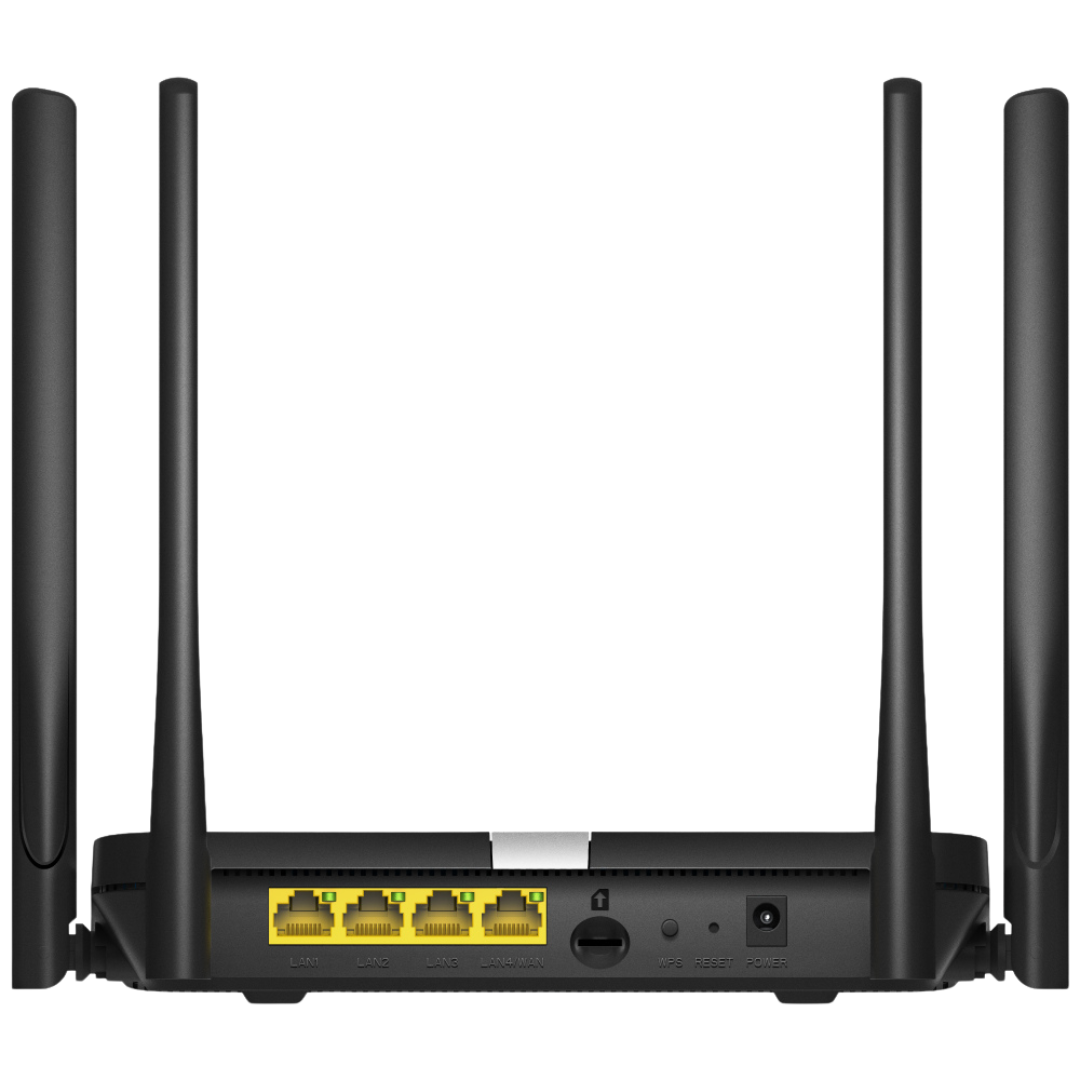

AC1200 Wi-Fi Mesh 4G LTE Router ( LT500 )
AC1200 Wi-Fi Mesh 4G LTE Router ( LT500 ) - Image 2
AC1200 Wi-Fi Mesh 4G LTE Router ( LT500 ) - Image 3
,

AC1200 Wi-Fi Mesh 4G LTE Router ( LT500 )

Availability:

Out of stock

LT500_EU/AU
● Up to 150 / 50Mbps LTE speed
● AC1200 Wi-Fi for a smoother experience
● High gain antennas expand coverage
● PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier VPN
● Flexible WAN/LAN port for dual connectivity
● Compatible with 15 DDNS providers
● DNS over Cloudflare/NextDNS/Google

DATASHEET

50.50 € 42.08 €

Out of stock

Model Version LT500 2.0
CPU Chipset MT7628A+MT7613B
CPU Details 580 MHZ Single-Core, MIPS24KEC
Memory/Stroage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Cellular Celluar Standards 4G Cat. 4
Cellular Antennas 2× Fixed
SIM Options 1× Nano SIM Slot
Available Versions Version EU, US, AU
EU Suitable Region Europe, Middle East, Africa
EU Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
EU Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
EU Cellular Features DL 2×2 MIMO
EU Celluar Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
US Suitable Region United States, Canada
US Max DL Speed 150 Mbps
US Max UL Speed 50 Mbps
US Cellular Features DL 2×2 MIMO
US Celluar Bands LTE-FDD: B2/4/5/12/13/14/66/71
WCDMA: B2/4/5
AU Suitable Region Latin America, Australia, New Zealand
AU Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
AU Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
AU Cellular Features DL 2×2 MIMO
AU Celluar Bands LTE-FDD: B1/2/3/4/5/7/8/28/66
LTE-TDD: B40
WCDMA: B1/2/4/5/8
GSM: B2/3/5/8
Wireless 5 GHz Wi-Fi Speed 867 Mbps
Wi-Fi Bands EU
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
5 GHz Anntenna Gain Max 4.8dBi
2.4 GHz Antenna Gain Max 5.19dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Wi-Fi Transmission Power
  • CE:
    <20 dBm (2.4 GHz)
    <23 dBm (5.15 GHz ~ 5.35 GHz)
  • FCC:
    <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)
    <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz)
Range Performance Max: 100 m (328 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Two wooden walls with thickness < 3.8 cm (1.5”)
One concrete wall with thickness < 10 cm (4”)
Interfaces Physical Buttons
  • WPS Button
  • Reset Button
10/100 Mbps RJ45 Ports 4
Ethernet Notes One port supports WAN/LAN configuration, and the rest are LAN ports
LED
  • System
  • Speed/Link/ACT of Each Ethernet Port
Power Input DC Jack
Power Power Methods DC
DC 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability ESD Air Protection 4kV
ESD Contact Protection 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Package Content
  • Main Product
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Mechanical Dimension 204.8×133.2×38.3 mm
8.06×5.24×1.51 inches
Installation
  • Desktop
  • Wall-Mounting
SKU: 7597 Categories: ,
Lloji i antenës së Wi-Fi-së: Wifi / LTE
Sim Slots 1
RJ45 Ethernet interface 4
Wifi Wifi 6
Wifi 2.4 GHz 300Mbps
Wifi 5 GHz 867Mbps
LTE FDD Max 150 Mbps
LTE TDD Max 50 Mbps
