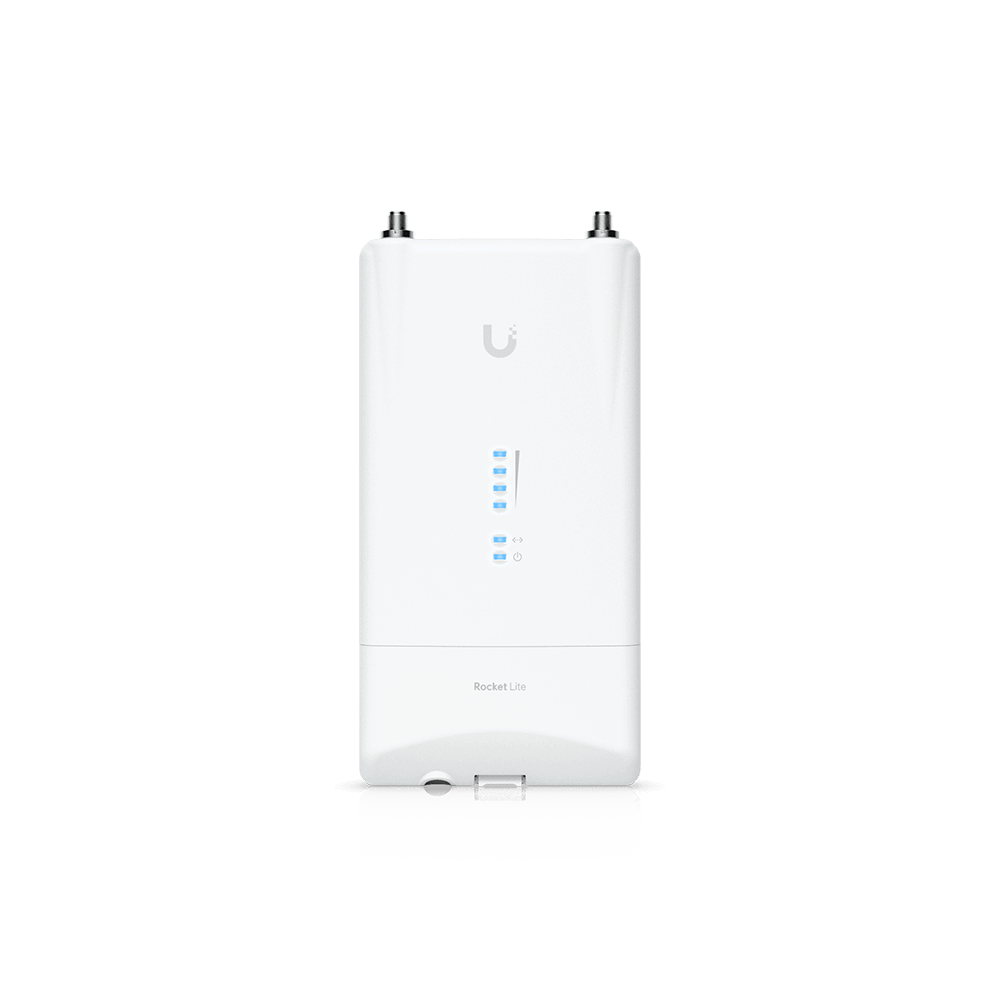

airMAX Rocket AC Lite
R5AC-LITE
Specifications
| Category | Specification | Details |
|---|---|---|
| Mechanical | Dimensions | 162 × 84 × 37 mm (6.4 × 3.3 × 1.5 in) |
| Weight | 250 g (8.8 oz) | |
| Enclosure Material | UV-stabilized plastic | |
| Hardware | Networking Interface | 1 × Gigabit Ethernet (RJ45) |
| Power Method | Passive PoE 2-pair (4,5+; 7,8 return) | |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) | |
| Supported Voltage Range | 20 – 27V DC | |
| Max Power Consumption | 8.5 W | |
| ESD / EMP Protection | Air / Contact ±24 kV | |
| RF Connectors | 2 × RP-SMA (Waterproof) | |
| LEDs | Power, LAN, 4 × Signal Strength | |
| Shock & Vibration | ETSI300-019-1.4 | |
| Environment | Operating Temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
| Operating Humidity | 5% – 95% RH (non-condensing) | |
| Radio Frequency | Management Radio (Worldwide) | 5150 – 5875 MHz |
| US / CA Bands | U-NII-1: 5150 – 5250 MHzU-NII-2A: 5250 – 5350 MHzU-NII-2C: 5470 – 5725 MHzU-NII-3: 5725 – 5850 MHz | |
| Compliance | Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
