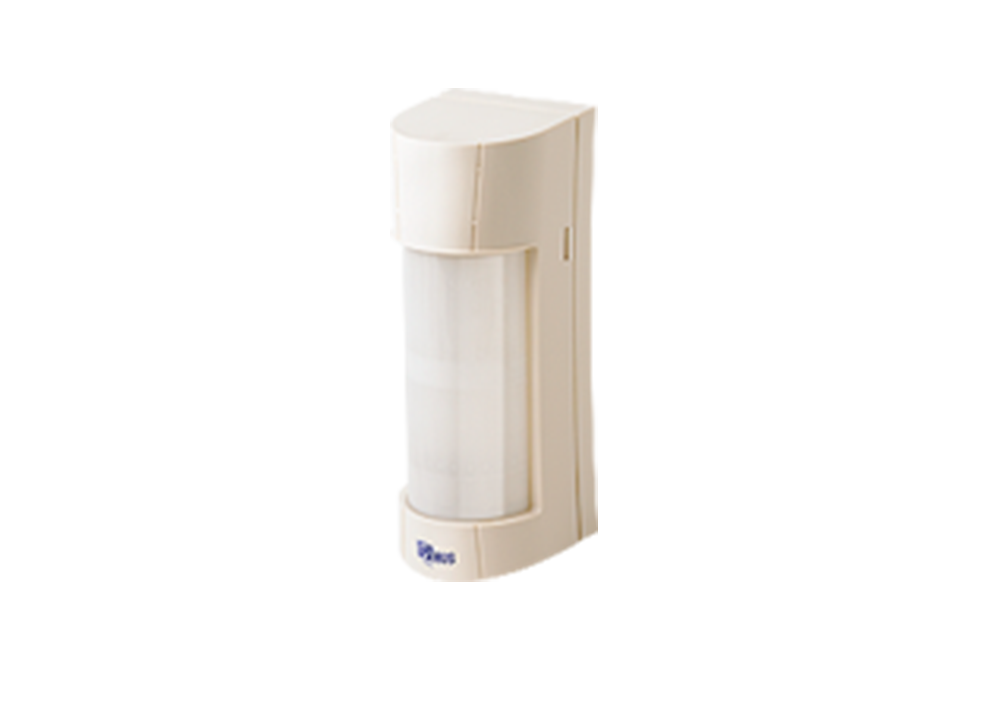

AVS Spectrum DT AM

– Detection through double PIR and microwave 10.525 GHz
– Detection range from 3 to 12 meters
– Antimasking with active IR
– Tamper through accelerometer
– Light filter
– Digital temperature compensation
– Detection angle up to 100°
– Orientation horizontal plane 180°
– Installation height 1,2 meters with standard lens
– 2,2 meters with SSL optional lens
– PET Immunity
– Block input for microwave switching and relay alarm
– Auxiliary input for tamper or alarm
– Alarm output c/nc
– Antimasking output c/nc
– Tamper output c/nc
– End of line resistors selectable for: Alarm-Tamper-Antimasking (2,2-4,7-5,6-10 Kohm)
– Walk test with led and buzzer activation
– Power supply from 10.5 Vdc to 15 Vdc
– Power consumption in hush: 21 mA
– Power consumption in alarm: 25 mA
– Dimensions (D x W x H): 68,3 x 75,4 x 189,4 mm

Protection class: IP 55
