MESH System

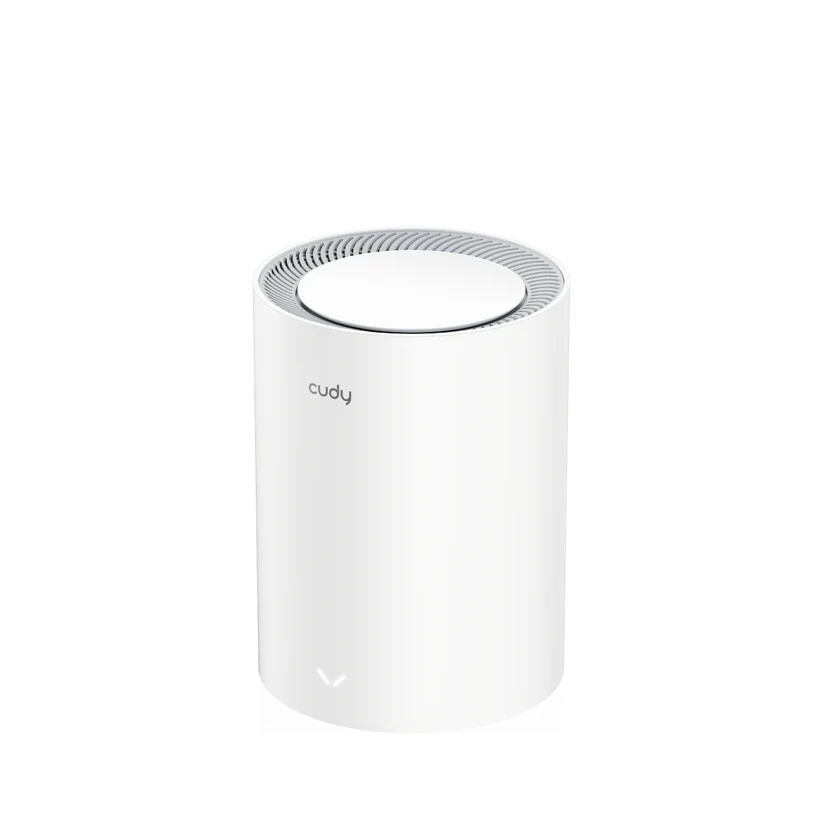

AX3000 2.5G Mesh Wi-Fi 6 System White M3000 2.0 ( 1Pack )
Availability:
Out of stock
A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands, featuring Cudy Mesh, app control, VPN, HE160, OFDMA and MU-MIMO. Suitable for internet access up to 2.5 Gbps.
- 1.3 GHz Dual-Core CPU
- 5-Stream Dual-Band Wi-Fi 6
- 200 Connected Devices
- Fast Roaming
- WireGuard, OpenVPN, ZeroTier
- DATASHEET
42.09 € 35.07 €
Out of stock
| Model Version | M3000 2.0 | |
|---|---|---|
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Stroage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| Wi-Fi Bands | EU + DFS, US + DFS | |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 3T3R (3×3 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 5× Internal | |
| 5 GHz Anntenna Gain Max | 5.1dBi | |
| 2.4 GHz Antenna Gain Max | 4.2dBi | |
| FEM or PA/LNA |
|
|
| Range Performance | Max: 130 m (427 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
|
| Wall Performance | Three wooden walls with thickness < 3.8 cm (1.5”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”) |
|
| Wi-Fi Transmission Power |
|
|
| Interfaces | 2.5G RJ45 Ports | 1 |
| Gigabit RJ45 Ports | 1 | |
| Ethernet Notes | The 2.5G port is WAN port, the Gigabit port is LAN port | |
| LED |
|
|
| Physical Buttons |
|
|
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC |
|
| Reliability | Environment |
|
| Mechanical | Installation |
|
| Power | Basic Power Saving | 0 |
| Mechanical | Dimension | Φ110×154.5 mm Φ4.33×6.08 inches |
| Product Weight |
|
|
| Package Content |
|
|
