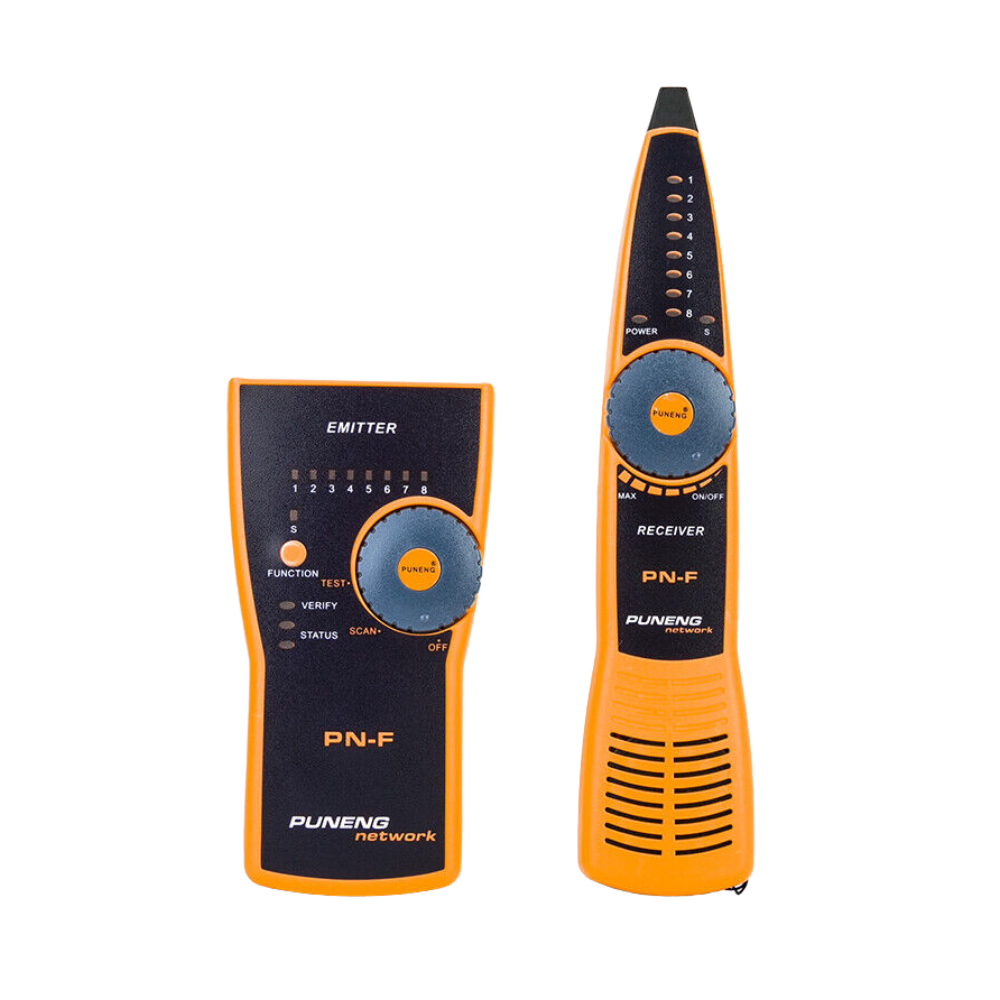

Cable Tester (WKCT-PNF)

Features:

Find wire on all types of connected operating Ethernet switch/router/PC terminal

Directly insert telephone wire with RJ11 plug into the RJ11, RJ45 plug into the RJ45 socket of the wire trackers emitter

Push DIP switch of emitter to position of SCAN/TEST then wire finding indicator status flashes meaning normal work of emitter

Press downward the inching button

Use the probe of receiver to find target wire at the other end

During testing, function switchover button can be pressed for switchover of dual-tone

Finding function: for telephone, network and electric wires

Collation function

Open or short circuits testing functions

DC level testing function

Telephone line signal detect

Low-voltage alarm function

Earphone function

Spotlight function

Telecom post bureaus/net bars/telecom engineering companies/network engineering companies/ power supplies/army and other departments requiring wire

Specification:

Signal transmission format: Mulit-frequency impulse

Signal output level: 8Vp-p

Signal transfer distance: 3Km

Dimension:

Transmitter:approx.138x75x60mm/5.43×2.95×2.36inch

Reveiver:approx.220x50mm/8.66×1.97inch

Power: DC 9V Battery (not included)
