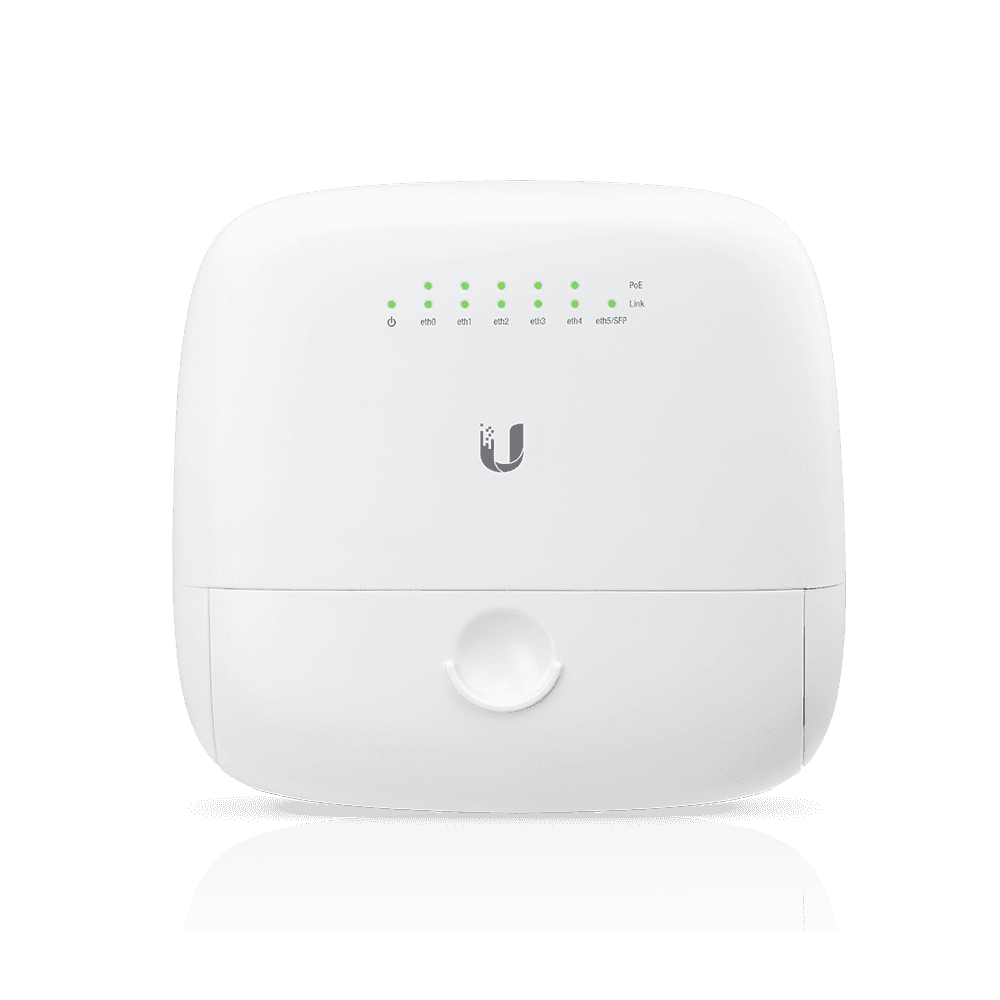

EdgePoint R6

140.04

EdgePoint Router, 6

Ubiquiti Networks EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile power capabilities. EP-R6 includes powerful routing features, such as load balancing and failover, providing redundancy and increased performance for outdoor wireless links. EP-R6 is powered by 24VDC or by PoE, and able to support 24V passive PoE to power most Ubiquiti products. A single, compact controller efficiently eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.

Product Features
• (5) RJ45 Ethernet ports
• (1) SFP Ethernet port
• 24VDC, 3A Terminal Block
• PoE Input: (5) 24V, 0.7A Passive PoE
• Output Ports: (1) SFP Port

Product Specifications
• Dimensions: 188.6 x 177.1 x 49.8mm (7.43 x 6.97 x 1.96″)
• Weight: 605g (1.33lbs)
• Enclosure Characteristics: Polycarbonate with UV Resistance
• Max. Power Consumption: 7W (excludes PoE output)
• Power Input:
(1) DC Terminal Block
(1) RJ34 (eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
• Power Supply: Min. 24V / 0.3A (excludes PoE output power)
• VDC Input: 24V, 3A
• Passive PoE Input: (1) 24V / 1.4A, 4-Pair (+1,2,3,4,5; -3,6,7,8) Passive PoE, eth0 (Do NOT Configure eth0 in PoE Output Mode if You’re Using a POE Input Power Source)
• Passive PoE Output: (5) 24V / 0.7A, 2-Pair (+4,5;-7,8) Passive PoE, eth0 to eth4
• Power Monitoring: (1) DC Terminal Block, Input Power / (1) RJ45, eth0, Input Power
• Supported Voltage Range: 26 to 16VDC
• Button: Reset
• LEDs:
System: Power
eth0 to eth4: Speed/Link/Activity, PoE
eth5/SFP: Speed/Link/Activity
• Data Ports: (5) 10/100/1000 RJ45 Ports + (1) 1Gbps SFP Port
• Processor: Dual-Core 880MHz, MIPS1004Kc
• System Memory: 256MB DDR3-1600 RAM
• Code Storage: 256MB NAND
• Certifications: CE, FCC, IC
• Pole Mount: Yes
• Operating Temperature: -40 to 65°C (-40 to 149°F)
• Operating Humidity: 10 to 90% non-condensing

Product Includes:
• (1) EdgePoint Router
• (1) Metal Strap
• (1) Gigabit PoE (24V, 1.25A) with Mounting Bracket
• (1) Power Cord
• (1) Quick start guide
