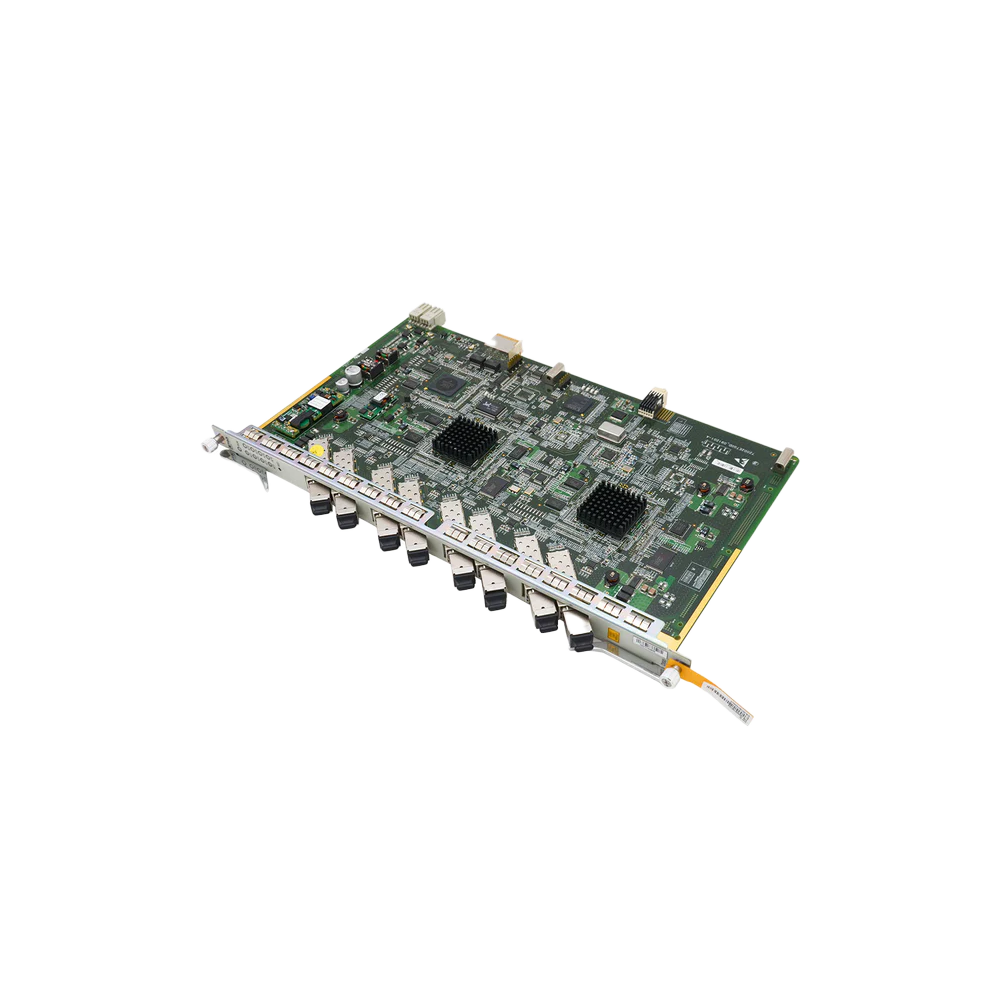

ZTE ETGO 8-port EPON Board for ZXA10 C300 series OLT
Përshkrim
| Specification | |
| Service ports | |
| EPON Port | 8-EPON Port |
| EPON SFP Module Specification | |
| Type | PX20 Module : Single Fiber Bidirectional Optical Module, Class PX20 |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | 1.25 Gbit/s |
| Minimun Output Optical Power | PX20 Module : 2.50 dBm |
| Maximum Output Optical Power | PX20 Module : 7.00 dBm |
| Maximum Receiver Sensitivity | PX20 Module : -30.00 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | PX20 Module : -6.0 dBm |
| Extinction Ratio | 9dB |
| Device Specifications | |
| Weight | 1.017kg |
| Dimensions (W x D x H) | 395.5 mm × 22.5 mm × 225 mm |
