Name: 6-Port 10/100M PoE+ Switch FS106P
Brand: Cudy
SKU: 970610
Availability: InStock

6-Port 10/100M PoE+ Switch FS106P

12.90 €

Koha e arritjes së produktit : Gus 27, 2026 - Gus 28, 2026

Kodi i produktit : 970610 Kategori: Cudy, POE SWITCH - Cudy Brand: Cudy

Specification	Details
Model Version	FS106P 1.0
10/100 Mbps RJ45 Ports	6× RJ45 Ports
10/100 Mbps RJ45 PoE Ports	Ports #1~#4
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Management	Intelligent Power ManagementAutomatically disconnects the lastly powered device when power budget is exceeded
Extend Mode Ports	Ports #1~#4
VLAN Mode Ports	Ports #1~#4
LED Indicators	PowerLink / ACT of Each Ethernet PortExtend StatusVLAN Status
Physical Switch	VLAN / Default / Extend DIP Switch
PoE Watchdog Function	Enabled under VLAN / Extend Modes to automatically reboot inactive connected clients
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
MAC Address Table	2048 Entries
Maximum Switching Capacity	1.2 Gbps
Maximum Forwarding Rate	0.8928 Mpps
Jumbo Frame	2 KB
Packet Buffer	570 Kbit
Power Input Type	DC Jack
Power Method	DC
Power Input	54V ⎓ 0.66A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 54V ⎓ 0.93A
Power Supply	36W
Maximum Power Consumption (Without PoE)	2W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3x Flow Control802.3af PoE802.3at PoE
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	138 × 61.5 × 24 mm5.43 × 2.42 × 0.94 inches
Product Weight	88.0 g (3.1 oz.)
Casing Material	Plastic
Installation Method	Desktop / Wall-Mount
Package Content	FS106PPower AdapterPower CordInstallation Guide
Retail Package Dimension	EU/US: 151 × 95 × 72 mm5.94 × 3.74 × 2.83 inches
Retail Package Weight	EU: 367.7 g (12.97 oz.)
Units per Carton	EU/US: 30 Units
Carton Net Weight	EU: 11.0 kg (24.25 lbs)
Carton Gross Weight	EU: 11.8 kg (26.01 lbs)
Carton Dimension	EU/US: 48 × 38 × 21.2 cm18.9 × 14.96 × 8.35 inches

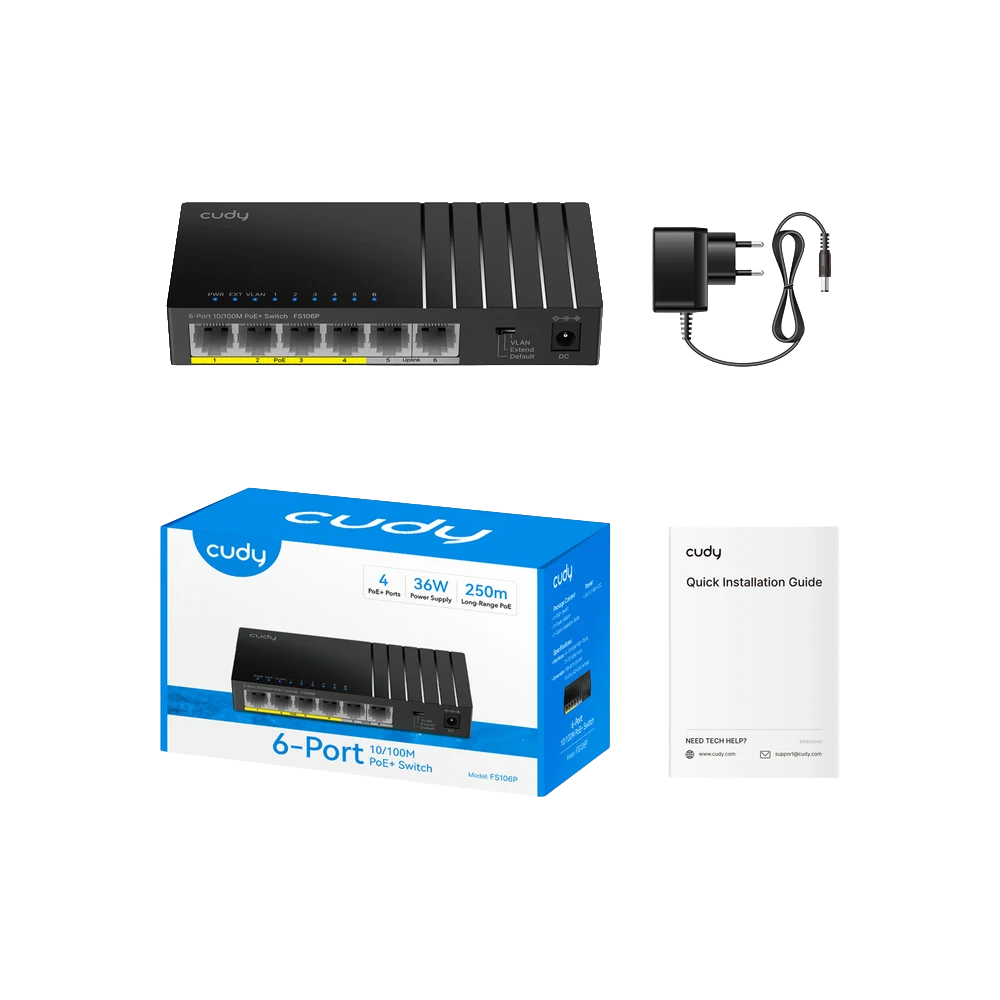

6-Port 10/100M PoE+ Switch FS106P - Figura 1

6-Port 10/100M PoE+ Switch FS106P - Figura 2

Click to enlarge

Përshkrim

FS106P 1.0 është një switch kompakt Fast Ethernet PoE me 6 porta, i projektuar për instalime të vogla të rrjetit dhe pajisjeve PoE si kamera IP, access point dhe telefona IP. Pajisja ofron 4× PoE Ports me mbështetje IEEE 802.3af/at, fuqi deri në 30W për port, si dhe funksione praktike si Extend Mode, VLAN Mode dhe PoE Watchdog për menaxhim inteligjent të pajisjeve të lidhura. Me dizajn kompakt dhe instalim desktop ose wall-mount, është zgjidhje ideale për sisteme të monitorimit dhe rrjete të vogla profesionale.

Specifications

Specification	Details
Model Version	FS106P 1.0
10/100 Mbps RJ45 Ports	6× RJ45 Ports
10/100 Mbps RJ45 PoE Ports	Ports #1~#4
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Management	Intelligent Power ManagementAutomatically disconnects the lastly powered device when power budget is exceeded
Extend Mode Ports	Ports #1~#4
VLAN Mode Ports	Ports #1~#4
LED Indicators	PowerLink / ACT of Each Ethernet PortExtend StatusVLAN Status
Physical Switch	VLAN / Default / Extend DIP Switch
PoE Watchdog Function	Enabled under VLAN / Extend Modes to automatically reboot inactive connected clients
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
MAC Address Table	2048 Entries
Maximum Switching Capacity	1.2 Gbps
Maximum Forwarding Rate	0.8928 Mpps
Jumbo Frame	2 KB
Packet Buffer	570 Kbit
Power Input Type	DC Jack
Power Method	DC
Power Input	54V ⎓ 0.66A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 54V ⎓ 0.93A
Power Supply	36W
Maximum Power Consumption (Without PoE)	2W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3x Flow Control802.3af PoE802.3at PoE
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	138 × 61.5 × 24 mm5.43 × 2.42 × 0.94 inches
Product Weight	88.0 g (3.1 oz.)
Casing Material	Plastic
Installation Method	Desktop / Wall-Mount
Package Content	FS106PPower AdapterPower CordInstallation Guide
Retail Package Dimension	EU/US: 151 × 95 × 72 mm5.94 × 3.74 × 2.83 inches
Retail Package Weight	EU: 367.7 g (12.97 oz.)
Units per Carton	EU/US: 30 Units
Carton Net Weight	EU: 11.0 kg (24.25 lbs)
Carton Gross Weight	EU: 11.8 kg (26.01 lbs)
Carton Dimension	EU/US: 48 × 38 × 21.2 cm18.9 × 14.96 × 8.35 inches
