Name: 5-Port Gigabit PoE+ Switch GS105P
Brand: Cudy
SKU: 970611
Availability: InStock

5-Port Gigabit PoE+ Switch GS105P

23.90 €

GS105P

Koha e arritjes së produktit : Gus 27, 2026 - Gus 28, 2026

Kodi i produktit : 970611 Kategori: Cudy, POE SWITCH - Cudy Brand: Cudy

Specification	Details
Model Version	GS105P 1.0
Gigabit RJ45 Ports	5× Gigabit RJ45 Ports
Gigabit RJ45 PoE Ports	Ports #1~#4
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Management	Intelligent Power ManagementAutomatically disconnects the lastly powered device when power budget is exceeded
Shielded RJ45 Ports	Supported
Extend Mode Ports	Ports #1~#4
VLAN Mode Ports	Ports #1~#4
LED Indicators	PowerPoE Status of Each PoE PortLink / ACT of Each Ethernet PortPoE Max Status
Physical Switches	VLAN / Default / Extend DIP SwitchPoE Watchdog On / Off Switch
PoE Watchdog Function	Automatically reboots connected clients that remain inactive for 5 minutes. Not recommended for devices with online auto-upgrade feature.
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
MAC Address Table	2048 Entries
Maximum Switching Capacity	10 Gbps
Maximum Forwarding Rate	7.44 Mpps
Jumbo Frame	15 KB
Packet Buffer	3 Mbit
Power Input Type	DC Jack
Power Method	DC
Power Input	54V ⎓ 0.66A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 54V ⎓ 0.66A
Power Supply	36W
Maximum Power Consumption (Without PoE)	4W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3x Flow Control802.3af PoE802.3at PoE
PoE Management	Intelligent Power Management
Grounding Method	Three-Prong Plug
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	119 × 85 × 28 mm4.69 × 3.35 × 1.1 inches
Product Weight	253.6 g (8.95 oz.)
Casing Material	Metal
Installation Method	Desktop / Wall-Mount

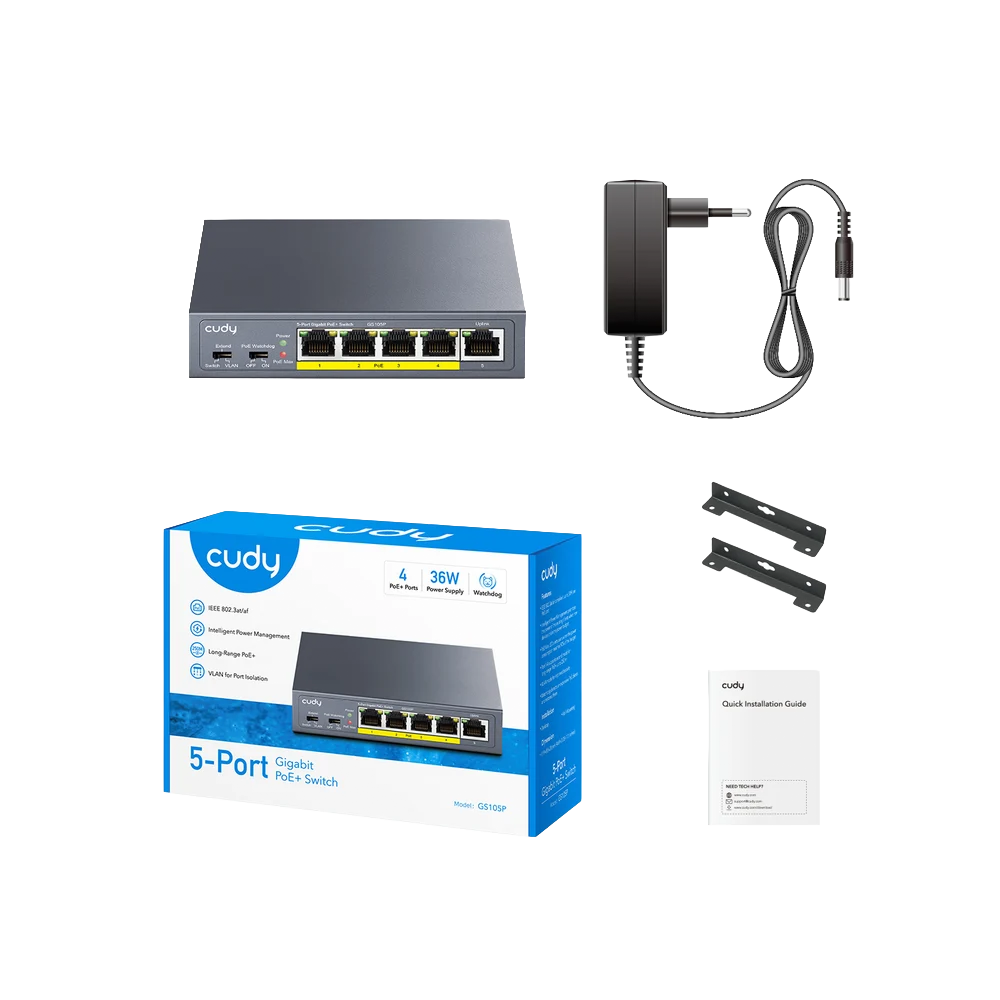

Package Content	GS105PPower AdapterPower CordInstallation Guide
Retail Package Dimension	165 × 123 × 60 mm6.5 × 4.84 × 2.36 inches
Retail Package Weight	EU: 580.0 g (20.46 oz.)
Units per Carton	20 Units
Carton Net Weight	EU: 11.1 kg (24.47 lbs)
Carton Gross Weight	EU: 11.6 kg (25.57 lbs)
Carton Dimension	37.6 × 26.4 × 33.8 cm14.8 × 10.39 × 13.31 inches

5-Port Gigabit PoE+ Switch GS105P - Figura 1

5-Port Gigabit PoE+ Switch GS105P - Figura 2

Click to enlarge

Përshkrim
Specifications

Përshkrim

GS105P 1.0 është një switch Gigabit PoE me 5 porta, i projektuar për furnizimin me energji dhe lidhjen e pajisjeve rrjetore si kamera IP, access point dhe telefona IP. Pajisja ofron 4× Gigabit PoE Ports me mbështetje IEEE 802.3af/at, fuqi deri në 30W për port, si dhe funksione të avancuara si Extend Mode, VLAN Mode dhe PoE Watchdog për menaxhim inteligjent të pajisjeve të lidhura. Me 10 Gbps switching capacity, kasë metalike dhe instalim desktop ose wall-mount, është zgjidhje ideale për sisteme sigurie dhe rrjete profesionale.

Specifications

Specification	Details
Model Version	GS105P 1.0
Gigabit RJ45 Ports	5× Gigabit RJ45 Ports
Gigabit RJ45 PoE Ports	Ports #1~#4
Maximum Power per PoE Port	30W
PoE Standards	IEEE 802.3af / IEEE 802.3at Support
PoE Port Management	Intelligent Power ManagementAutomatically disconnects the lastly powered device when power budget is exceeded
Shielded RJ45 Ports	Supported
Extend Mode Ports	Ports #1~#4
VLAN Mode Ports	Ports #1~#4
LED Indicators	PowerPoE Status of Each PoE PortLink / ACT of Each Ethernet PortPoE Max Status
Physical Switches	VLAN / Default / Extend DIP SwitchPoE Watchdog On / Off Switch
PoE Watchdog Function	Automatically reboots connected clients that remain inactive for 5 minutes. Not recommended for devices with online auto-upgrade feature.
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available only on Extend Mode ports when Extend Mode is activated
MAC Address Table	2048 Entries
Maximum Switching Capacity	10 Gbps
Maximum Forwarding Rate	7.44 Mpps
Jumbo Frame	15 KB
Packet Buffer	3 Mbit
Power Input Type	DC Jack
Power Method	DC
Power Input	54V ⎓ 0.66A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 54V ⎓ 0.66A
Power Supply	36W
Maximum Power Consumption (Without PoE)	4W
Supported IEEE 802.3 Protocols	802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3x Flow Control802.3af PoE802.3at PoE
PoE Management	Intelligent Power Management
Grounding Method	Three-Prong Plug
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Dimensions	119 × 85 × 28 mm4.69 × 3.35 × 1.1 inches
Product Weight	253.6 g (8.95 oz.)
Casing Material	Metal
Installation Method	Desktop / Wall-Mount
Package Content	GS105PPower AdapterPower CordInstallation Guide
Retail Package Dimension	165 × 123 × 60 mm6.5 × 4.84 × 2.36 inches
Retail Package Weight	EU: 580.0 g (20.46 oz.)
Units per Carton	20 Units
Carton Net Weight	EU: 11.1 kg (24.47 lbs)
Carton Gross Weight	EU: 11.6 kg (25.57 lbs)
Carton Dimension	37.6 × 26.4 × 33.8 cm14.8 × 10.39 × 13.31 inches
