16-Port Gigabit Cloud Easy-Managed PoE+ Switch with 2 SFP GS1016EPS2
179.62 €
GS1016EPS2
Koha e arritjes së produktit : Gus 27, 2026 - Gus 28, 2026
Përshkrim
GS1016EPS2 1.0 është një switch Gigabit PoE i menaxhueshëm me 16 porta PoE dhe 2 porta SFP uplink, i projektuar për rrjete profesionale, sisteme kamerash IP, access point dhe infrastruktura enterprise. Pajisja ofron 16× Gigabit RJ45 PoE Ports me mbështetje IEEE 802.3af/at, fuqi totale deri në 200W, menaxhim të avancuar të energjisë PoE, si dhe funksione profesionale si VLAN, QoS, LLDP, DHCP Snooping, Link Aggregation dhe PoE Watchdog. Me kapacitet switching deri në 36 Gbps, kasë metalike dhe mbështetje rackmount, është zgjidhje ideale për instalime profesionale.
Specifications
| Specification | Details |
|---|---|
| Model Version | GS1016EPS2 1.0 |
| Flash / ROM | 16 MB (128 Mbit) NOR Flash |
| 1.25G SFP Slots | 2× SFP Slots |
| Gigabit RJ45 Ports | 16× Gigabit RJ45 Ports |
| Gigabit RJ45 PoE Ports | Ports #1~#16 |
| SFP DDM Monitoring | Supported |
| Maximum Power per PoE Port | 30W |
| PoE Standards | IEEE 802.3af / IEEE 802.3at Support |
| PoE Priority | Configurable PoE PriorityIf no priority is configured, lower-numbered ports have higher priority |
| Shielded RJ45 Ports | Supported |
| Extend Mode Ports | Configurable |
| VLAN Mode Ports | Configurable |
| LED Indicators | PowerPoE Status of Each PoE PortLink / ACT of Each Ethernet PortPoE Max Status |
| Physical Buttons | Reset Button |
| PoE Watchdog Function | Automatically reboots inactive connected clients after configured time period. Wait time can be customized through web management to avoid issues with devices using online auto-upgrade features. |
| Maximum Copper Speed & Distance | Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps |
| Copper Distance Note | 250-meter transmission available when port speed is set to 10 Mbps through software configuration |
| Optical Specification & Distance | Depends on the installed optical module |
| MAC Address Table | 8192 Entries |
| VLAN Capacity | 4096 VLANs |
| Maximum Switching Capacity | 36 Gbps |
| Maximum Forwarding Rate | 26.78 Mpps |
| Jumbo Frame | 15 KB |
| Packet Buffer | 4 Mbit |
| Power Input Type | AC Inlet |
| Power Method | AC |
| Power Input | 100-240V~, 50/60Hz |
| Power Supply | 200W |
| Maximum Power Consumption (Without PoE) | 14W |
| Supported IEEE 802.3 Protocols | 802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3az Power Saving802.3af PoE802.3at PoE |
| 802.1 Protocols | 802.1p LAN Layer 2 QoS/CoS802.1q VLAN Bridge Operation802.1ab LLDP / LLDP-MED |
| Port Management Features | Port On/OffPort Speed NegotiationStatic Port Trunk AggregationPort MirroringData Rate LimitingJumbo Frame SettingsStorm ControlTraffic MonitoringMAC Address ManagementEEE (802.3az) |
| PoE Management Features | PoE PriorityPoE Watchdog On/OffPoE Watchdog Period / Packet ThresholdPoE Consumed Power MonitoringPoE Standard DetectionDelayed PoE DeliveryTotal PoE Power LimitPoE Power Limit |
| Port Mirror Sessions | 4 Sessions |
| Port Trunk Groups | 4 Groups |
| Maximum Ports per Port Trunk Group | 8 Ports |
| Layer 2 Features | IGMP SnoopingLoop PreventionDHCP SnoopingLLDP Configuration and NeighborsMTU VLANPort-Based VLAN802.1Q VLANDSCP QoS802.1p QoSPort-Based QoS |
| Grounding Methods | Three-Prong PlugGrounding Point |
| EMS Protection | IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 6kV |
| Operating Temperature | 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) |
| Storage Temperature | -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 10% ~ 95% non-condensing |
| Management Methods | Configuration Web PageSNMP V1/V2Cudy App |
| Firmware Upgrade | Local Upgrade |
| System Reliability | Backup and Restore |
| Diagnostic Tools | Cable Status / Length DiagnosisPing |
| Supported Languages | English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese |
| Dimensions | 440 × 220 × 44 mm17.32 × 8.66 × 1.73 inches |
| Product Weight | 2753.8 g (97.14 oz.) |
| Casing Material | Metal |
| Installation Method | DesktopRackmount via Brackets |

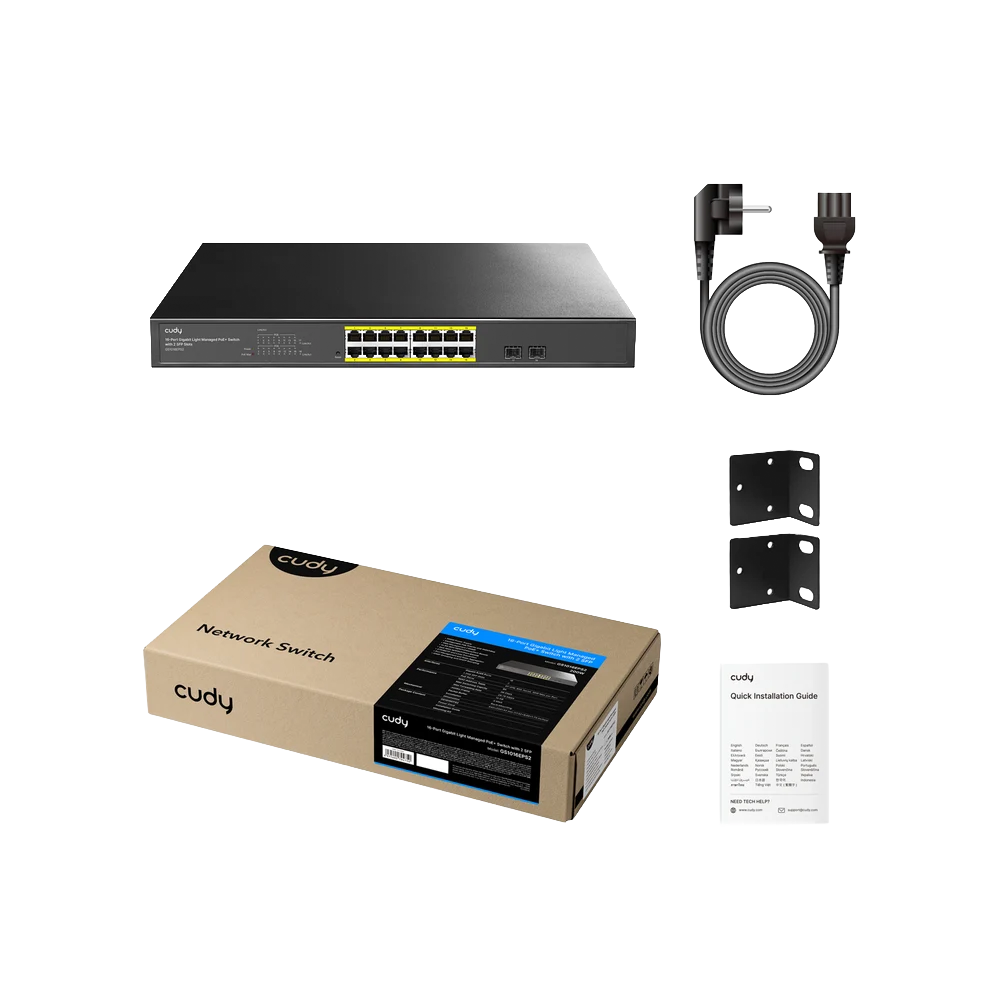

| Package Content | GS1016EPS2Power CordMounting KitInstallation Guide |
| Retail Package Dimension | 487 × 307 × 84 mm19.17 × 12.09 × 3.31 inches |
| Retail Package Weight | EU: 3500.0 g (123.46 oz.) |
| Units per Carton | 5 Units |
| Carton Net Weight | EU: 17.5 kg (38.58 lbs) |
| Carton Gross Weight | EU: 18.6 kg (41.01 lbs) |
| Carton Dimension | 51 × 44.3 × 32.5 cm20.08 × 17.44 × 12.8 inches |
DATASHEET
