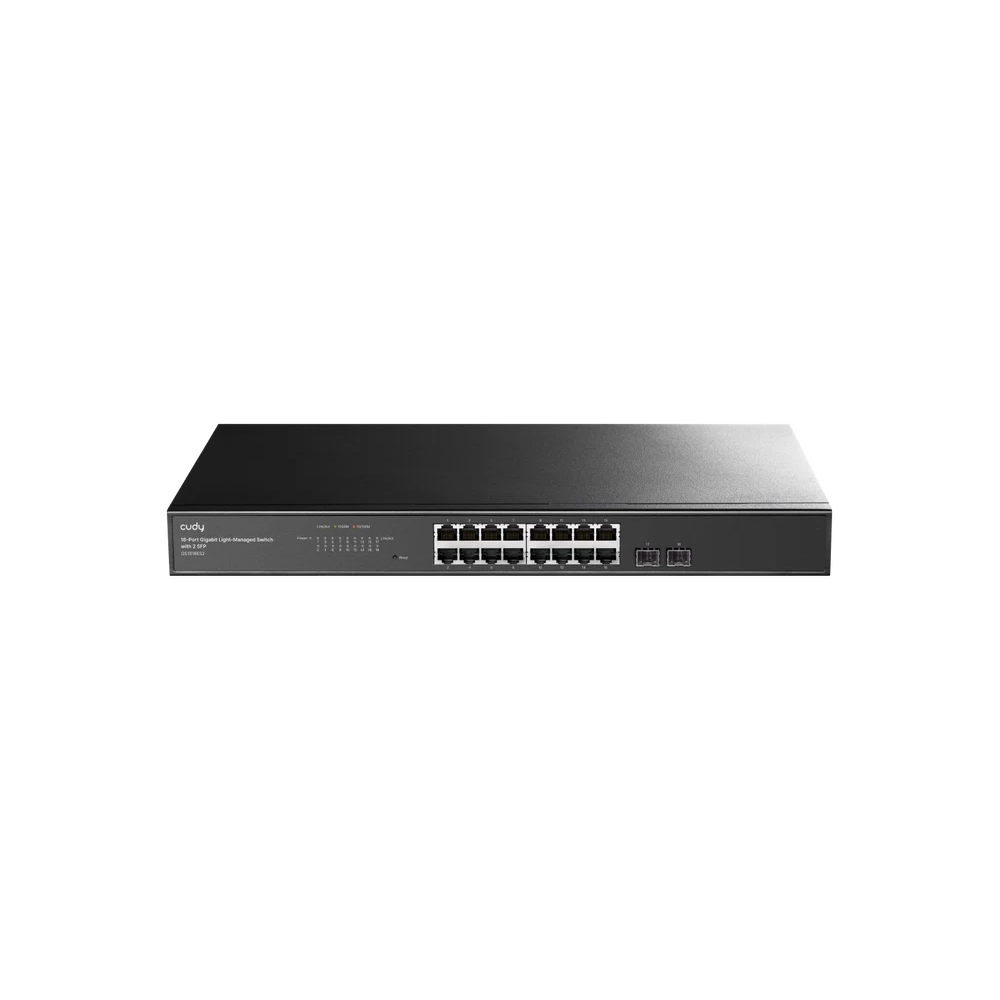

16-Port Gigabit Cloud Easy-Managed Switch with 2 SFP GS1016ES2 - Figura 1

16-Port Gigabit Cloud Easy-Managed Switch with 2 SFP GS1016ES2 - Figura 2

16-Port Gigabit Cloud Easy-Managed Switch with 2 SFP GS1016ES2

16-Port Gigabit Cloud Easy-Managed Switch with 2 SFP GS1016ES2

Name: 16-Port Gigabit Cloud Easy-Managed Switch with 2 SFP GS1016ES2
Brand: Cudy
SKU: 970607
Availability: InStock

69.80 €

GS1016ES2

Koha e arritjes së produktit : Gus 27, 2026 - Gus 28, 2026

Kodi i produktit : 970607 Kategori: Cudy, Managed Switches - Cudy Brand: Cudy

Përshkrim

GS1016ES2 1.0 është një switch i menaxhueshëm Gigabit me 16 porta RJ45 dhe 2 porta SFP uplink, i projektuar për rrjete profesionale, infrastruktura biznesi dhe sisteme të avancuara IT. Pajisja ofron 16× Gigabit RJ45 Ports, 2× 1.25G SFP Slots, kapacitet switching deri në 36 Gbps, si dhe funksione të avancuara menaxhimi si VLAN, QoS, LLDP, DHCP Snooping, Link Aggregation dhe Port Mirroring. Me mbështetje për rackmount instalim, kasë metalike dhe mbrojtje EMS, është zgjidhje ideale për rack-e komunikimi, kamera IP dhe rrjete enterprise.

Specifications

Specification	Details
Model Version	GS1016ES2 1.0
Flash / ROM	16 MB (128 Mbit) NOR Flash
1.25G SFP Slots	2× SFP Slots
Gigabit RJ45 Ports	16× Gigabit RJ45 Ports
SFP DDM Monitoring	Supported
Shielded RJ45 Ports	Supported
Extend Mode Ports	Configurable
VLAN Mode Ports	Configurable
LED Indicators	PowerSpeed / Link / Act of Each Ethernet Port
Physical Buttons	Reset Button
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 Mbps
Copper Distance Note	250-meter transmission available when port speed is set to 10 Mbps through software configuration
Optical Specification & Distance	Depends on the installed optical module
MAC Address Table	8192 Entries
VLAN Capacity	4096 VLANs
Maximum Switching Capacity	36 Gbps
Maximum Forwarding Rate	26.78 Mpps
Jumbo Frame	15 KB
Packet Buffer	4 Mbit
Power Input Type	AC Inlet
Power Saving Features	Basic Power Saving Supported
Power Method	AC
Power Input	100-240V~, 50/60Hz
Maximum Power Consumption	7.8W
Idle Power Consumption	4.5W
Supported IEEE 802.3 Protocols	802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3az Power Saving
802.1 Protocols	802.1p LAN Layer 2 QoS/CoS802.1q VLAN Bridge Operation802.1ab LLDP / LLDP-MED
Port Management Features	Port On/OffPort Speed NegotiationStatic Port Trunk AggregationPort MirroringData Rate LimitingJumbo Frame SettingsStorm ControlTraffic MonitoringMAC Address ManagementEEE (802.3az)
Port Mirror Sessions	4 Sessions
Port Trunk Groups	4 Groups
Maximum Ports per Port Trunk Group	8 Ports
Layer 2 Features	IGMP SnoopingLoop PreventionLoop DetectionDHCP SnoopingLLDP Configuration and NeighborsMTU VLANPort-Based VLAN802.1Q VLANDSCP QoS802.1p QoSPort-Based QoS
Grounding Methods	Three-Prong PlugGrounding Point
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Surge: Power DM 4kV, CM 4kV; RJ45 CM 6kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	10% ~ 95% non-condensing
Management Methods	Configuration Web PageSNMP V1/V2Cudy App
Firmware Upgrade	Local Upgrade
System Reliability	Backup and Restore
Diagnostic Tools	Cable Status / Length DiagnosisPing
Supported Languages	English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
Dimensions	440 × 180 × 44 mm17.32 × 7.09 × 1.73 inches
Product Weight	1691.5 g (59.67 oz.)
Casing Material	Metal
Installation Method	DesktopRackmount via Brackets

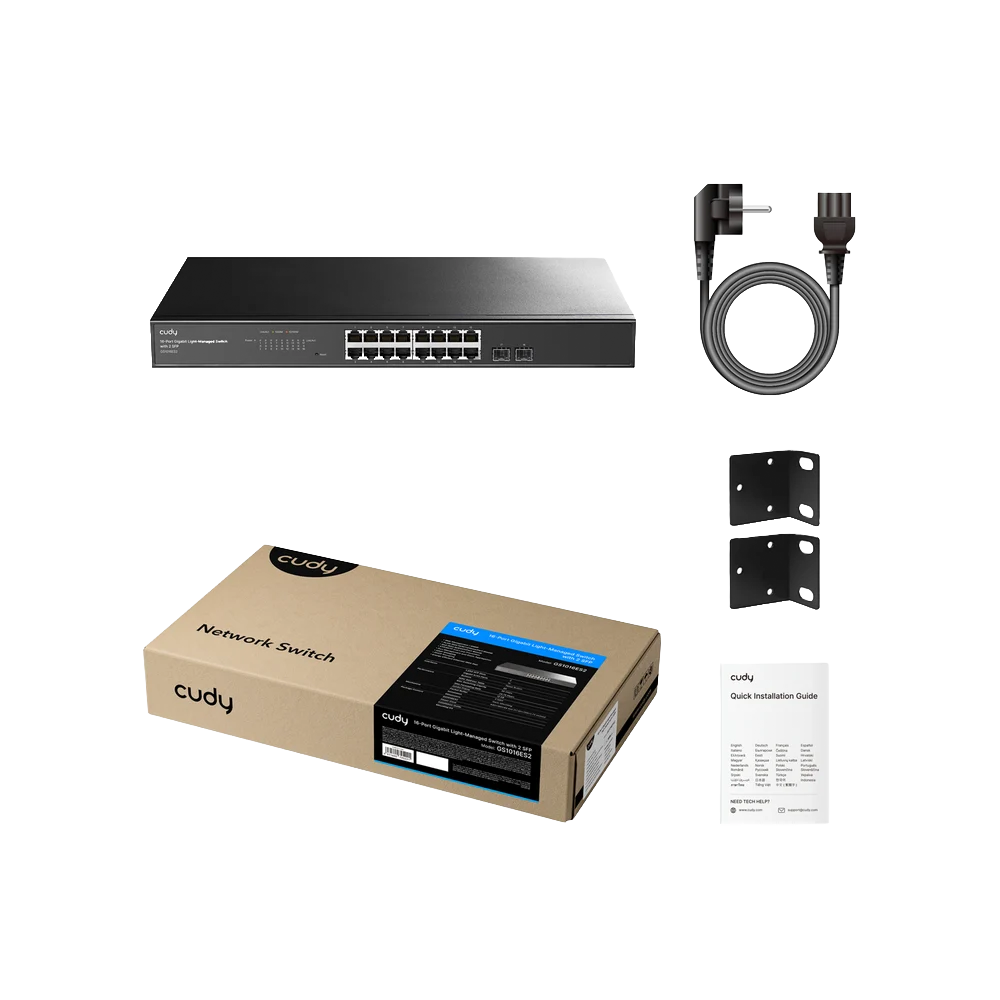

Package Content	GS1016ES2Power CordMounting KitInstallation Guide
Retail Package Dimension	487 × 267 × 84 mm19.17 × 10.51 × 3.31 inches
Retail Package Weight	EU: 2354.6 g (83.06 oz.)
Units per Carton	5 Units
Carton Net Weight	EU: 11.8 kg (26.01 lbs)
Carton Gross Weight	EU: 12.7 kg (28 lbs)
Carton Dimension	50 × 44 × 28.5 cm19.69 × 17.32 × 11.22 inches

DATASHEET

DATASHEET
