Name: 8-Port Gigabit Easy-Managed Switch with 2 SFP GS108ES2
Brand: Cudy
SKU: 970606
Availability: InStock

8-Port Gigabit Easy-Managed Switch with 2 SFP GS108ES2

35.85 €

GS108ES2

Koha e arritjes së produktit : Gus 27, 2026 - Gus 28, 2026

Specification	Details
Model Version	GS108ES2 1.0
Flash / ROM	16 MB (128 Mbit) NOR Flash
1.25G SFP Slots	2× SFP Slots
Gigabit RJ45 Ports	8× Gigabit RJ45 Ports
SFP DDM Monitoring	Supported
Shielded RJ45 Ports	Supported
Extend Mode Ports	Configurable
VLAN Mode Ports	Configurable
LED Indicators	PowerLink / ACT of Each Ethernet Port
Physical Buttons	Reset Button
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 MbpsCat. 6 or higher: 150 m at Gigabit
Copper Distance Note	250-meter transmission available when port speed is configured to 10 Mbps through software
Optical Specification & Distance	Depends on the installed optical module
MAC Address Table	4096 Entries
VLAN Capacity	4096 VLANs
Maximum Switching Capacity	21 Gbps
Maximum Forwarding Rate	14.88 Mpps
Jumbo Frame	15 KB
Packet Buffer	1.5 Mbit
Power Input Type	DC Jack
Power Saving Features	Basic Power Saving Supported
Power Method	DC
Power Input	12V ⎓ 1A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 12V ⎓ 1A
Maximum Power Consumption	4.5W
Idle Power Consumption	0.9W
Supported IEEE 802.3 Protocols	802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3az Power Saving
802.1 Protocols	802.1p LAN Layer 2 QoS/CoS802.1q VLAN Bridge Operation802.1ab LLDP / LLDP-MED
Port Management Features	Port On/OffPort Speed NegotiationStatic Port Trunk AggregationPort MirroringData Rate LimitingJumbo Frame SettingsStorm ControlTraffic MonitoringMAC Address ManagementEEE (802.3az)
Port Mirror Sessions	2 Sessions
Port Trunk Groups	2 Groups
Maximum Ports per Port Trunk Group	4 Ports
Layer 2 Features	IGMP SnoopingLoop PreventionLoop DetectionDHCP SnoopingLLDP Configuration and NeighborsMTU VLANPort-Based VLAN802.1Q VLANDSCP QoS802.1p QoSPort-Based QoS
Grounding Method	Grounding Point
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Surge: Power DM 2kV, CM 4kV; RJ45 CM 6kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Management Methods	Configuration Web PageCudy App (Coming Soon)
Firmware Upgrade	Local Upgrade
System Reliability	Backup and Restore
Diagnostic Tools	Ping
Supported Languages	English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
Dimensions	190 × 100 × 28 mm7.48 × 3.94 × 1.1 inches
Product Weight	461.5 g (16.28 oz.)
Casing Material	Metal
Installation Method	Desktop / Wall-Mount
Package Content	GS108ES2Power AdapterInstallation Guide
Retail Package Dimension	209 × 132 × 81.5 mm8.23 × 5.2 × 3.21 inches
Retail Package Weight	EU: 714.9 g (25.22 oz.)
Units per Carton	10 Units
Carton Net Weight	EU: 7.2 kg (15.87 lbs)
Carton Gross Weight	EU: 7.9 kg (17.42 lbs)
Carton Dimension	43.8 × 42.8 × 15.1 cm17.24 × 16.85 × 5.94 inches

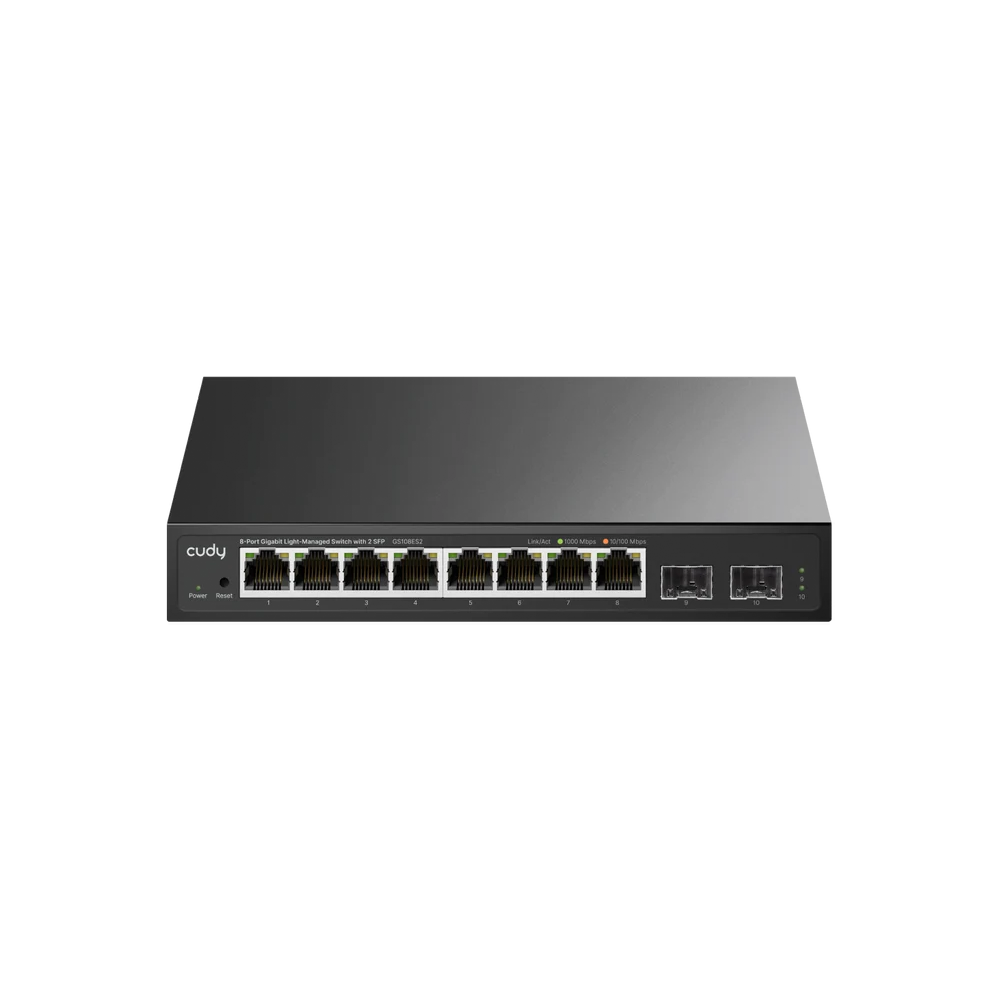

8-Port Gigabit Easy-Managed Switch with 2 SFP GS108ES2 - Figura 1

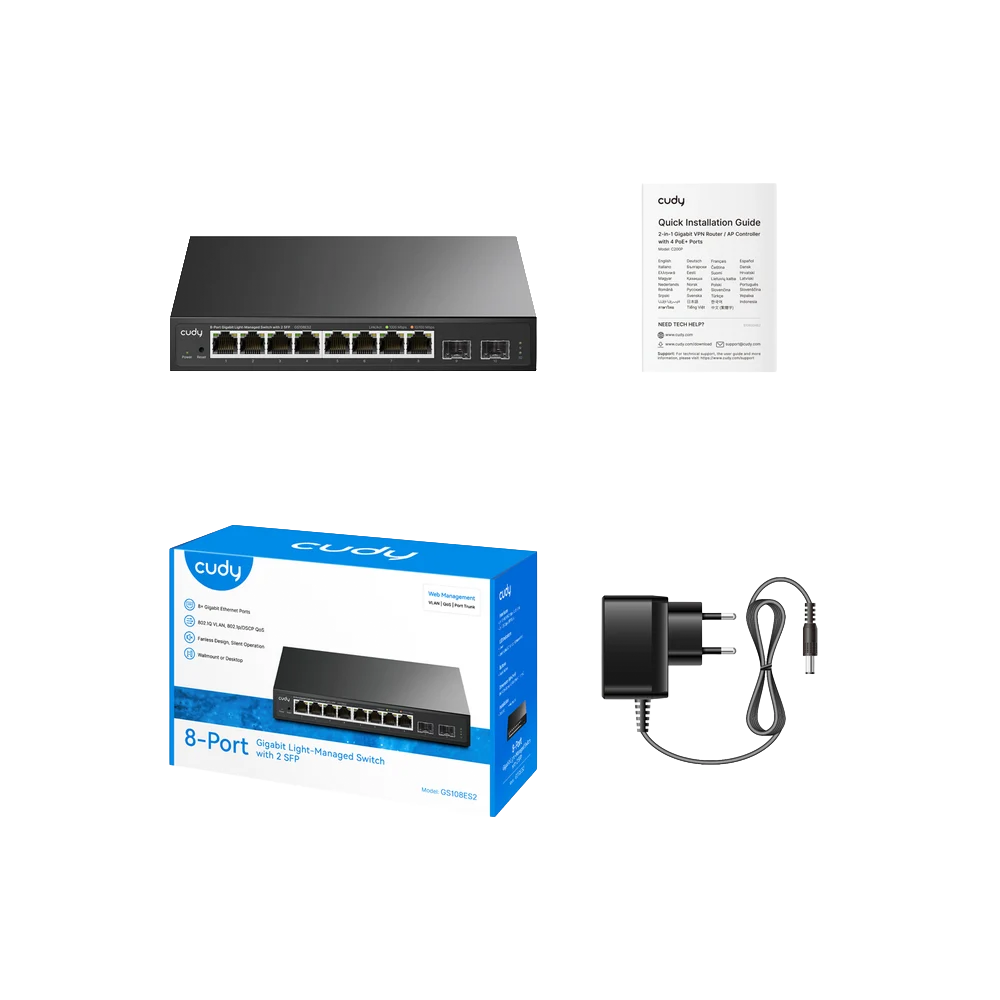

8-Port Gigabit Easy-Managed Switch with 2 SFP GS108ES2 - Figura 2

Click to enlarge

8-Port Gigabit Easy-Managed Switch with 2 SFP GS108ES2

Kodi i produktit : 970606 Kategori: Cudy, Managed Switches - Cudy Brand: Cudy

Përshkrim

GS108ES2 1.0 është një switch i menaxhueshëm Gigabit me dy porta SFP uplink, i projektuar për rrjete profesionale që kërkojnë kapacitet të lartë switching, menaxhim të avancuar dhe fleksibilitet në zgjerimin e rrjetit. Pajisja ofron 8× Gigabit RJ45 Ports, 2× 1.25G SFP Slots, mbështetje për VLAN, QoS, Link Aggregation, LLDP, DHCP Snooping dhe Port Mirroring. Me kapacitet switching deri në 21 Gbps, mbështetje për 4096 VLANs dhe kasë metalike për instalim desktop ose wall-mount, është ideale për biznese, infrastruktura IT dhe sisteme të monitorimit IP.

Specifications

Specification	Details
Model Version	GS108ES2 1.0
Flash / ROM	16 MB (128 Mbit) NOR Flash
1.25G SFP Slots	2× SFP Slots
Gigabit RJ45 Ports	8× Gigabit RJ45 Ports
SFP DDM Monitoring	Supported
Shielded RJ45 Ports	Supported
Extend Mode Ports	Configurable
VLAN Mode Ports	Configurable
LED Indicators	PowerLink / ACT of Each Ethernet Port
Physical Buttons	Reset Button
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 MbpsCat. 6 or higher: 150 m at Gigabit
Copper Distance Note	250-meter transmission available when port speed is configured to 10 Mbps through software
Optical Specification & Distance	Depends on the installed optical module
MAC Address Table	4096 Entries
VLAN Capacity	4096 VLANs
Maximum Switching Capacity	21 Gbps
Maximum Forwarding Rate	14.88 Mpps
Jumbo Frame	15 KB
Packet Buffer	1.5 Mbit
Power Input Type	DC Jack
Power Saving Features	Basic Power Saving Supported
Power Method	DC
Power Input	12V ⎓ 1A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 12V ⎓ 1A
Maximum Power Consumption	4.5W
Idle Power Consumption	0.9W
Supported IEEE 802.3 Protocols	802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3az Power Saving
802.1 Protocols	802.1p LAN Layer 2 QoS/CoS802.1q VLAN Bridge Operation802.1ab LLDP / LLDP-MED
Port Management Features	Port On/OffPort Speed NegotiationStatic Port Trunk AggregationPort MirroringData Rate LimitingJumbo Frame SettingsStorm ControlTraffic MonitoringMAC Address ManagementEEE (802.3az)
Port Mirror Sessions	2 Sessions
Port Trunk Groups	2 Groups
Maximum Ports per Port Trunk Group	4 Ports
Layer 2 Features	IGMP SnoopingLoop PreventionLoop DetectionDHCP SnoopingLLDP Configuration and NeighborsMTU VLANPort-Based VLAN802.1Q VLANDSCP QoS802.1p QoSPort-Based QoS
Grounding Method	Grounding Point
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Surge: Power DM 2kV, CM 4kV; RJ45 CM 6kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Management Methods	Configuration Web PageCudy App (Coming Soon)
Firmware Upgrade	Local Upgrade
System Reliability	Backup and Restore
Diagnostic Tools	Ping
Supported Languages	English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
Dimensions	190 × 100 × 28 mm7.48 × 3.94 × 1.1 inches
Product Weight	461.5 g (16.28 oz.)
Casing Material	Metal
Installation Method	Desktop / Wall-Mount
Package Content	GS108ES2Power AdapterInstallation Guide
Retail Package Dimension	209 × 132 × 81.5 mm8.23 × 5.2 × 3.21 inches
Retail Package Weight	EU: 714.9 g (25.22 oz.)
Units per Carton	10 Units
Carton Net Weight	EU: 7.2 kg (15.87 lbs)
Carton Gross Weight	EU: 7.9 kg (17.42 lbs)
Carton Dimension	43.8 × 42.8 × 15.1 cm17.24 × 16.85 × 5.94 inches

DATASHEET
