Name: 5-Port Gigabit Easy-Managed Switch with 1 SFP GS105ES1
Brand: Cudy
SKU: 970605
Price: 19.92 EUR
Availability: InStock

5-Port Gigabit Easy-Managed Switch with 1 SFP GS105ES1

19.92 €

GS105ES1

Koha e arritjes së produktit : Sht 18, 2026 - Sht 21, 2026

Specification	Details
Model Version	GS105ES1 1.0
Flash / ROM	8 MB (64 Mbit) NOR Flash
1.25G SFP Slots	1× SFP Slot
Gigabit RJ45 Ports	5× Gigabit RJ45 Ports
SFP DDM Monitoring	Supported
Shielded RJ45 Ports	Supported
Extend Mode Ports	Configurable
VLAN Mode Ports	Configurable
LED Indicators	PowerSpeed / Link / Act for Each Ethernet Port
Physical Buttons	Reset Button
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 MbpsCat. 6 or higher: 150 m at Gigabit
Copper Distance Note	250-meter transmission available when port speed is set to 10 Mbps through software configuration
Optical Specification & Distance	Depends on the installed optical module
MAC Address Table	2048 Entries
VLAN Capacity	4096 VLANs
Maximum Switching Capacity	12.5 Gbps
Maximum Forwarding Rate	8.929 Mpps
Jumbo Frame	15 KB
Packet Buffer	1 Mbit
Power Input Type	DC Jack
Power Saving Features	Basic Power Saving Supported
Power Method	DC
Power Input	5V ⎓ 0.55A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 5V ⎓ 0.55A
Maximum Power Consumption	2.24W
Idle Power Consumption	0.5W
Supported IEEE 802.3 Protocols	802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3az Power Saving
802.1 Protocols	802.1p LAN Layer 2 QoS/CoS802.1q VLAN Bridge Operation
Port Management Features	Port On/OffPort Speed NegotiationStatic Port TrunkingPort MirroringData Rate LimitingJumbo Frame SettingsStorm ControlTraffic MonitoringMAC Address ManagementEEE (802.3az)
Port Mirror Sessions	2 Sessions
Port Trunk Groups	2 Groups
Maximum Ports per Trunk Group	4 Ports
Layer 2 Features	IGMP SnoopingLoop PreventionMTU VLANPort-Based VLAN802.1Q VLANDSCP QoS802.1p QoSPort-Based QoS
Grounding Method	Grounding Point
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 6kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Management Method	Configuration Web Page
Firmware Upgrade	Local Upgrade
System Reliability	Backup and Restore
Diagnostic Tools	Ping
Supported Languages	English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
Dimensions	119 × 85 × 28 mm4.69 × 3.35 × 1.1 inches
Product Weight	263.2 g (9.28 oz.)
Casing Material	Metal
Installation Method	Desktop / Wall-Mount
Package Content	GS105ES1Power AdapterInstallation Guide
Retail Package Dimension	165 × 123 × 60 mm6.5 × 4.84 × 2.36 inches
Retail Package Weight	EU: 419.9 g (14.81 oz.)
Units per Carton	20 Units
Carton Net Weight	EU: 8.4 kg (18.52 lbs)
Carton Gross Weight	EU: 8.9 kg (19.62 lbs)
Carton Dimension	37.6 × 26.4 × 33.8 cm14.8 × 10.39 × 13.31 inches

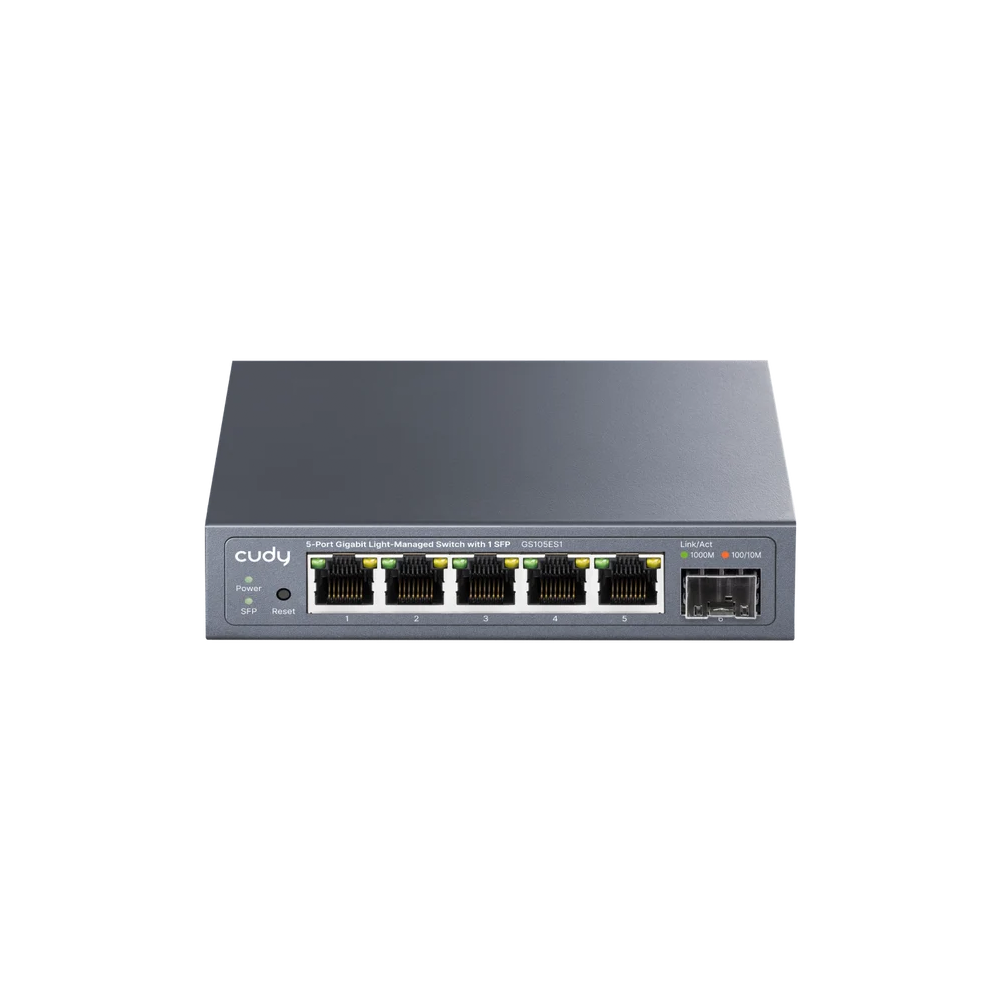

5-Port Gigabit Easy-Managed Switch with 1 SFP GS105ES1 - Figura 1

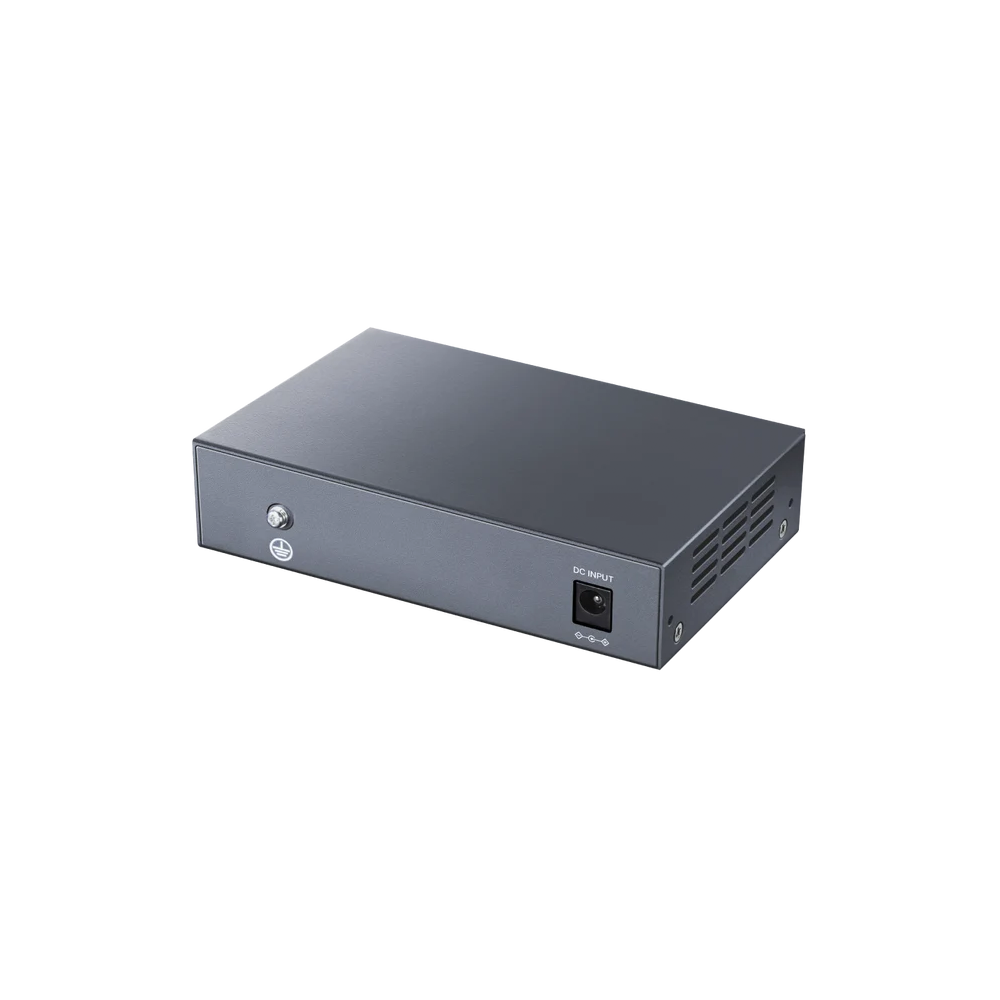

5-Port Gigabit Easy-Managed Switch with 1 SFP GS105ES1 - Figura 2

Click to enlarge

5-Port Gigabit Easy-Managed Switch with 1 SFP GS105ES1

Kodi i produktit : 970605 Kategori: Cudy, Managed Switches - Cudy Brand: Cudy

Përshkrim

GS105ES1 1.0 është një switch i menaxhueshëm Gigabit me SFP uplink, i projektuar për rrjete profesionale që kërkojnë fleksibilitet, menaxhim të avancuar dhe performancë të lartë. Pajisja ofron 5× Gigabit RJ45 Ports, 1× 1.25G SFP Slot, mbështetje për VLAN, QoS, Link Aggregation, Port Mirroring dhe Traffic Management. Me kapacitet switching deri në 12.5 Gbps, mbështetje për 4096 VLANs dhe kasë metalike për instalim desktop ose wall-mount, është e përshtatshme për biznese, kamera IP dhe infrastruktura rrjeti.

Specifications

Specification	Details
Model Version	GS105ES1 1.0
Flash / ROM	8 MB (64 Mbit) NOR Flash
1.25G SFP Slots	1× SFP Slot
Gigabit RJ45 Ports	5× Gigabit RJ45 Ports
SFP DDM Monitoring	Supported
Shielded RJ45 Ports	Supported
Extend Mode Ports	Configurable
VLAN Mode Ports	Configurable
LED Indicators	PowerSpeed / Link / Act for Each Ethernet Port
Physical Buttons	Reset Button
Maximum Copper Speed & Distance	Cat. 3 or higher: 100 m at 10 MbpsCat. 5 or higher: 100 m at 100 MbpsCat. 5e or higher: 100 m at GigabitCat. 5e or higher: 250 m at 10 MbpsCat. 6 or higher: 150 m at Gigabit
Copper Distance Note	250-meter transmission available when port speed is set to 10 Mbps through software configuration
Optical Specification & Distance	Depends on the installed optical module
MAC Address Table	2048 Entries
VLAN Capacity	4096 VLANs
Maximum Switching Capacity	12.5 Gbps
Maximum Forwarding Rate	8.929 Mpps
Jumbo Frame	15 KB
Packet Buffer	1 Mbit
Power Input Type	DC Jack
Power Saving Features	Basic Power Saving Supported
Power Method	DC
Power Input	5V ⎓ 0.55A
Power Adapter Included	Input: 100-240V~, 50/60HzOutput: 5V ⎓ 0.55A
Maximum Power Consumption	2.24W
Idle Power Consumption	0.5W
Supported IEEE 802.3 Protocols	802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3az Power Saving
802.1 Protocols	802.1p LAN Layer 2 QoS/CoS802.1q VLAN Bridge Operation
Port Management Features	Port On/OffPort Speed NegotiationStatic Port TrunkingPort MirroringData Rate LimitingJumbo Frame SettingsStorm ControlTraffic MonitoringMAC Address ManagementEEE (802.3az)
Port Mirror Sessions	2 Sessions
Port Trunk Groups	2 Groups
Maximum Ports per Trunk Group	4 Ports
Layer 2 Features	IGMP SnoopingLoop PreventionMTU VLANPort-Based VLAN802.1Q VLANDSCP QoS802.1p QoSPort-Based QoS
Grounding Method	Grounding Point
EMS Protection	IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 6kV
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Management Method	Configuration Web Page
Firmware Upgrade	Local Upgrade
System Reliability	Backup and Restore
Diagnostic Tools	Ping
Supported Languages	English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
Dimensions	119 × 85 × 28 mm4.69 × 3.35 × 1.1 inches
Product Weight	263.2 g (9.28 oz.)
Casing Material	Metal
Installation Method	Desktop / Wall-Mount
Package Content	GS105ES1Power AdapterInstallation Guide
Retail Package Dimension	165 × 123 × 60 mm6.5 × 4.84 × 2.36 inches
Retail Package Weight	EU: 419.9 g (14.81 oz.)
Units per Carton	20 Units
Carton Net Weight	EU: 8.4 kg (18.52 lbs)
Carton Gross Weight	EU: 8.9 kg (19.62 lbs)
Carton Dimension	37.6 × 26.4 × 33.8 cm14.8 × 10.39 × 13.31 inches

DATASHEET

5-Port Gigabit Easy-Managed Switch with 1 SFP GS105ES1
