IsoStation M5

113.00

In stock

IS-M5

Compare
Category: Tag:

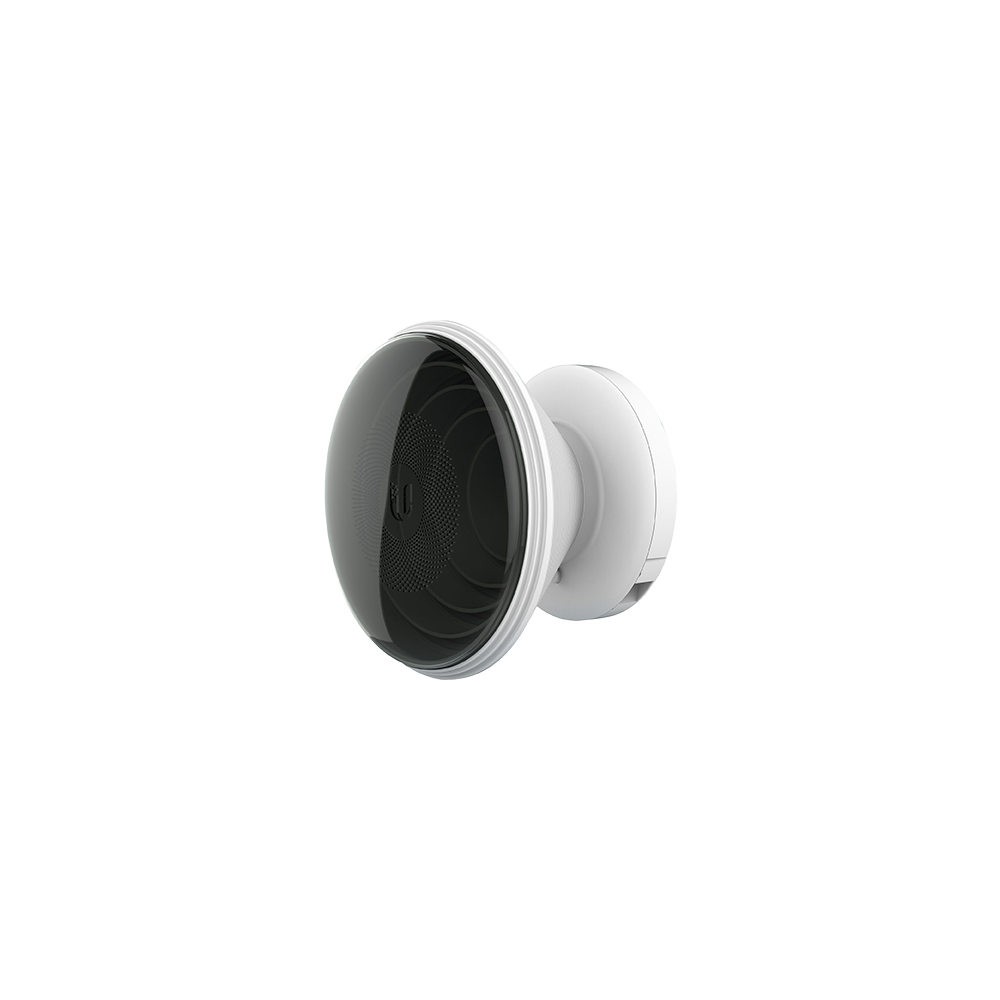

Ubiquiti Networks IS-M5 US is part of the airMAX family of products. IsoStation M5 is a 5GHz CPE with a modular / replaceable 14dBi 45° horn antenna.

The Ubiquiti Networks IsoStation M5 provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for the urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation M5. This feature is especially important in an increasingly congested RF environment.

With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environmental needs. The IsoStation M5 uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation M5 is versatile and cost-effective to deploy.

Product Features
• Interchangeable horn antennas for enhanced beam shaping
• Horn feed comes directly from the radio input/output so connectors are eliminated
• Single button release for ease of changing antennas
• All metal, shielded radio base
• Metal strap for quick pole-mounting

Product Documentation
• Dimensions:
With Horn: 174 x 174 x 150mm (6.86 x 6.85 x 5.91″)
Without Horn: 131 x 131 x 65mm (5.16 x 5.16 x 2.56″)
• Weight:
With Horn: 725.7g (1.6lbs)
Without Horn: 408.2g (0.9lbs)
• Max. Power Consumption: 6.5W
• Power Supply: 25V, 0.5A Gigabit PoE Adapter
• Power Method: Passive PoE (Pairs 4,5+;7,9 Return)
• Gain: 14dBi
• Beamwidth: 45° (Default Horn)
• Networking Interface: 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74 Kc
• Memory: 64 MB DDR2
• LED: (1) Power
• Mounting: Pole Mount
• Wind Loading: 36N @ 200km/h (8.09lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: ±24kV Contact/Air
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: FCC, IC, CE
• Operating Frequency:
USA U-NII-1: 5150 – 5250 MHz
USA U-NII-1: 5725 – 5850 MHz

UBIQUITI DATASHEET
