RocketDish 3.3-3.8GHz 26dBi

262.97

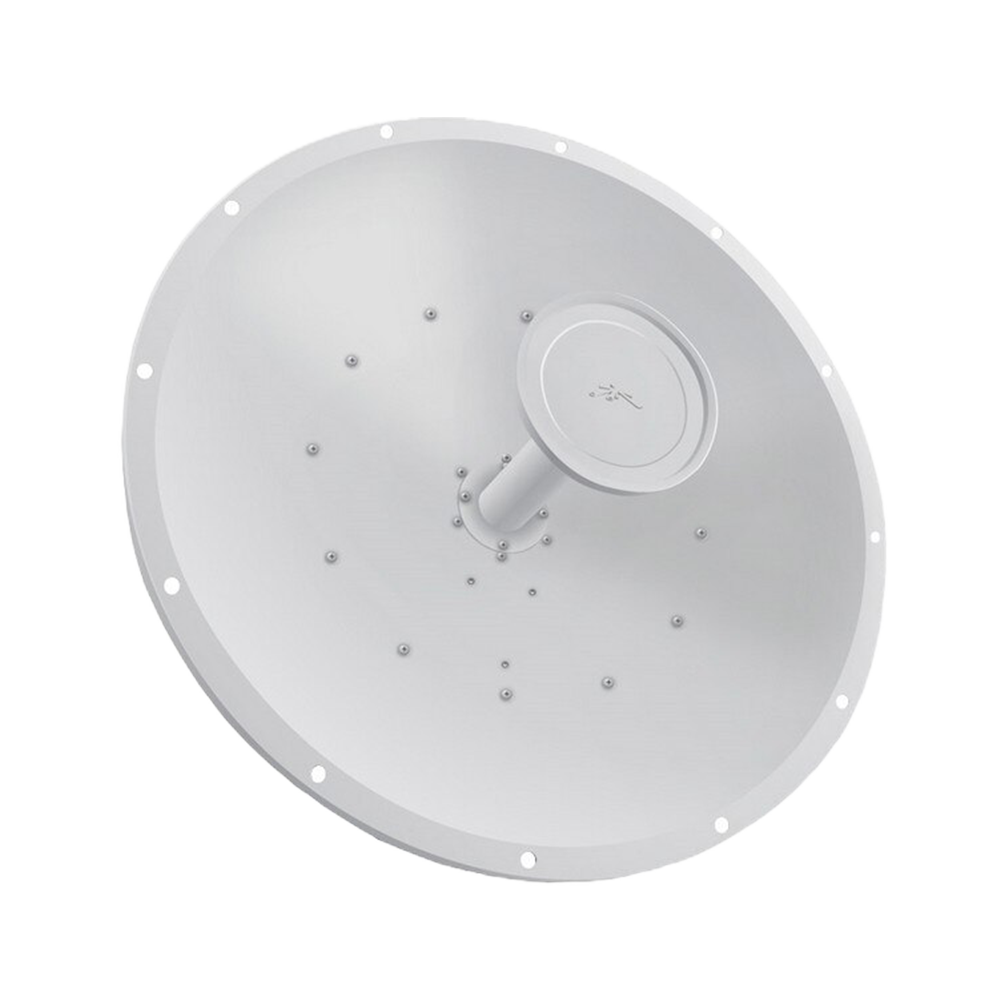

3 GHz Rocket Dish, 26 dBi w/ Rocket Kit

This Ubiquiti Antenna is a parabolic dish antenna, designed to be paired with the Rocket M365 3.65GHz radio. It operates between 3.3 and 3.8GHz at 26dBi gain.
Full mounting bracket and weatherproof RF jumpers included.

Product Specifications
• Frequency Range: 3.3-3.8 GHz
• Gain: 24.9-26.0dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 35dB min
• Max VSWR: 1.4:1
• Hpol Beam width 7 deg.
• Vpol Beamwidth 7 deg.
• F/B Ratio: 8 deg.
• ETSI Specification: EN 302 326 DN2
• Dimensions: (648mm) diameter
• Weight: 22lbs (9.8kg)
• Wind Survivability: 120 mph
• Windloading: 113lb@100mph
UBIQUITI DATASHEET

RocketDish 3.3-3.8GHz 26dBi
