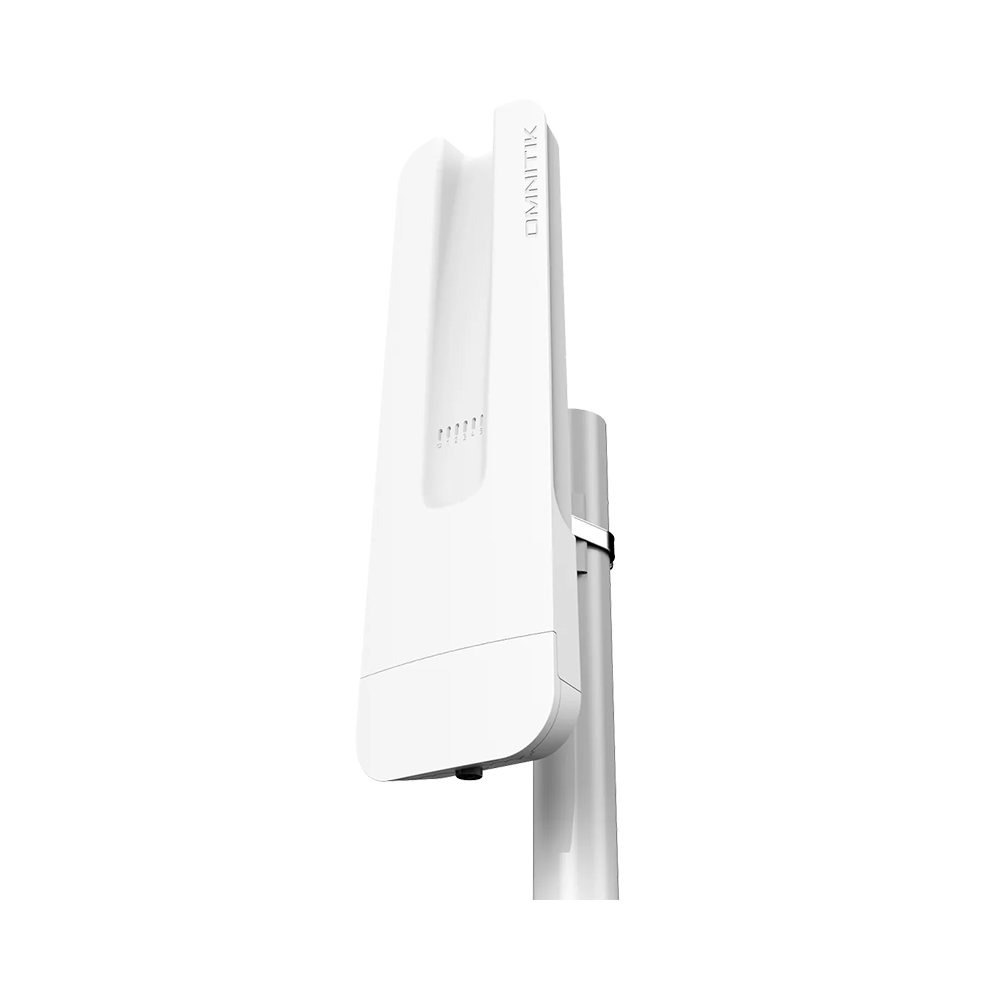

OmniTIK 5 POE ac with 2 x 7.5dBi integrated 5GHz Omni antennas, High Gain Dual Chain 802.11an/ac wireless, 720MHz CPU, 128MB RAM, 5xGigabit LAN (4 with POE -OUT), POE, PSU, pole mount, RouterOS L4, International version
We are glad to introduce a significant upgrade to our popular OmniTik 5GHz access points!
OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
– OmniTIK 5 PoE ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– OmniTIK 5 PoE ac (International) supports 5150MHz-5875MHz range.
|10/100/1000 Ethernet ports||5|
|CPU core count||1|
|CPU nominal frequency||720 MHz|
|Dimensions||416 x 129 x 58 mm|
|Max Power consumption||18W|
|Number of USB ports||1|
|Number of chains||2|
|PCB temperature monitor||Yes|
|Size of RAM||128 MB|
|Storage size||16 MB|
|Supported input voltage||12 V – 57 V|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Wireless chip model||QCA9892|
