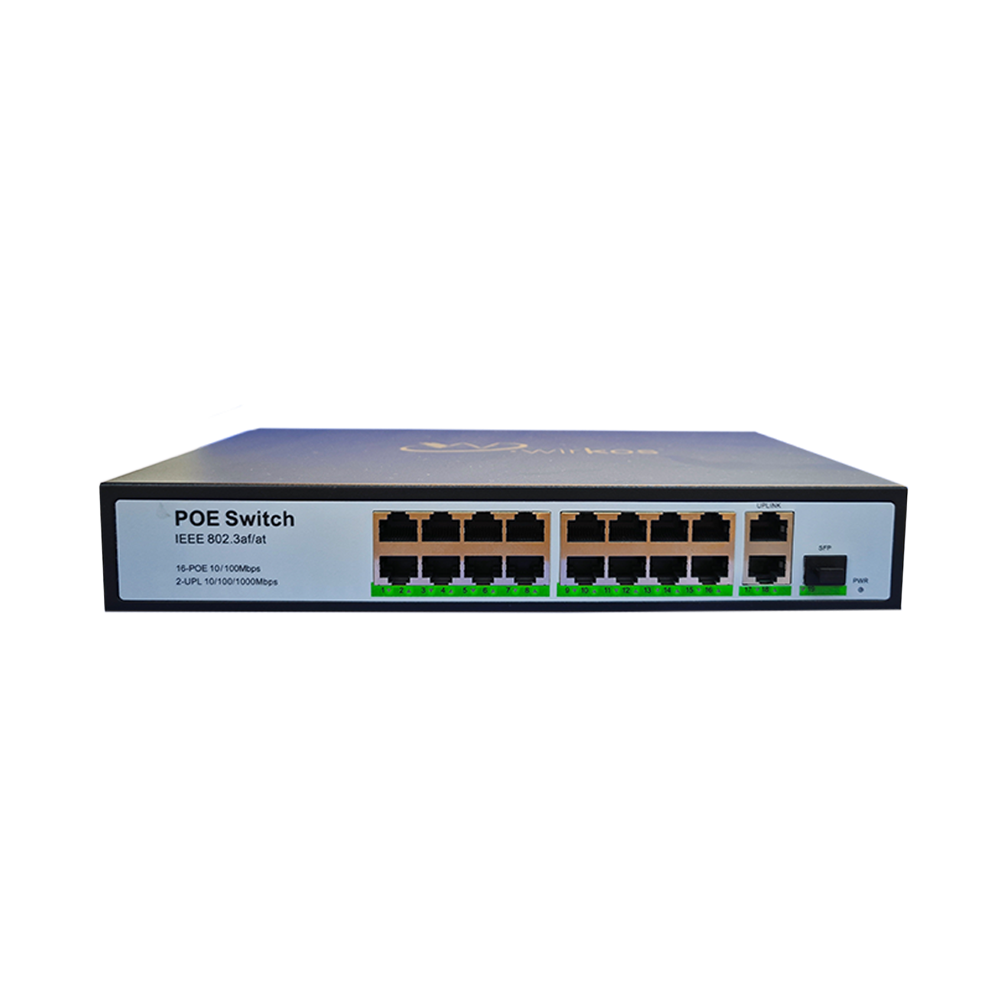

POE Switch/16+2 up link Gigabit port

WKPOE-UG-162

  • Can supply power to wireless AP and IP Camera
  • 16*10/100Mbps auto-sensing RJ45 ports, 2*10/100/1000Mbps.
  • Total PoE power: 250W (Port 1 to Port 16)
  • Maximum power per port ups to 30W
  • Support Auto MDI/ MDIX
  • Support anti-thunder to port(AC power port: Differential mode / -2kv, common mode / -4kv)
  • 3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3z, IEEE802.3ab
  • Flow control mode: full duplex adopts IEEE 802.3x standard, and half duplex adopts Back pressure standard
  • Adopt store-and-forward Up to line speed at the frame length range of 64 to 1536
  • Built-in 1U rack power supply series, easy to place it into standard mounting brackets
  • Plug and play



64.80 €

  • HD monitor transmission and power supply
  • Wireless AP layout transmission and power supply
  • Network telephone transmission , intelligent house and home system
  • Intelligent transportation supervisory system(ITS)
  • High-speed Way supervisory/Tele-Communication System
  • Security protection system, TV medical treatment
  • Long-distance Muti-media Schooling, Campus monitoring
  • Long-distance broadcast television transmission system
  • High-building Security Protection, Military Tele-Com projects



Product Model: WKPOE-UG-162

Product Description: 16x 10/100M Ethernet PoE ports 2x gigabit ports, and 1-16 ports supports IEEE802.3af/at, total power is 250W.

Ordering Notes: PoE default power supply is end-span(1/2, 3/6 line pair), alternative PoE Power supply is mid-span(4/5, 7/8 line pair)



SKU: 8248 Category:
Technical parameter list


Product Name

 18-Port Standard PoE Switch


Model

 WKPOE-UG-162
Connector Type



16*10/100Mbps auto-sensing RJ45 ports, 2*10/100/1000Mbps


Network Media

 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 and more UTP(≤100 meter)


Bandwidth

 7.2Gbps (non-blocking)
Address Database Size



2K


MTBF

 100,000 hours
Network Latency



maximum delay less than 20 microseconds
Forwarding Mode



Store-And-Forward


Buffer Memory

 4M
Network Protocols IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power

via

MDI IEEE 802.3af/a


LED Display

 System: power supply Every Port: connecting, PoE working status


Power Supply

 AC100-240V 50/60Hz; (every country use a custom power plug)


PoE Ports

 16*PoE Ports
PoE Port Power



Max 30W


PoE Standard

 IEEE 802.3af/at
Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft)

Storage Altitude: 3,000 m (10,000 ft)


Certification

 CE Mark ,commercial CE/LVD EN60950


Radiation

 CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
