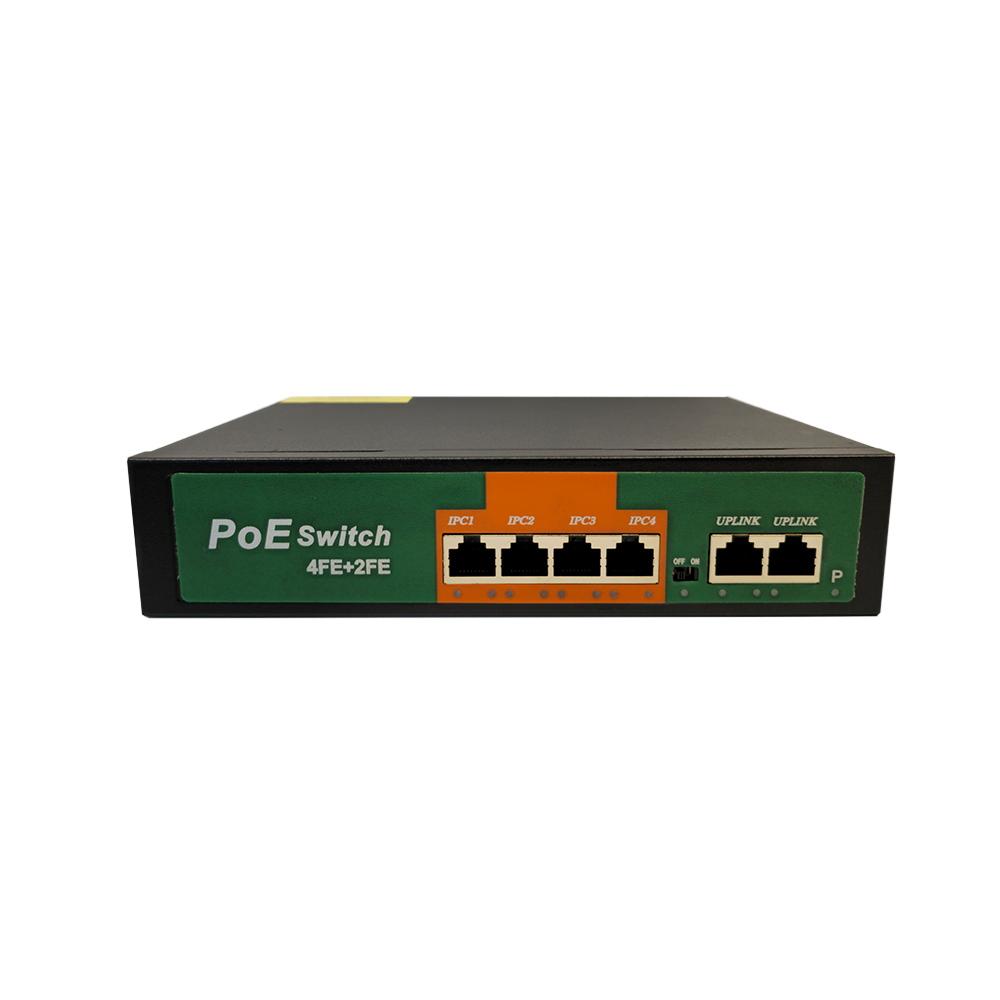

| Model | AP-1024PE | |
|
Ethernet port Characteristic |
Connector Type | 1×4 RJ45，1×2 RJ45 |
|
Port Function |
Power supply priority, fast transmission, MAC automatic learning and aging, IEEE802.3X full-duplex and back pressure half-duplex | |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Indicator Light | Each port has 1 Link/ACT 100Mbps and 1 power light; whole machine power indicator; extend indicator | |
| Transmission distance | 10Base-T: ≤250m
100Base-TX: ≤100m |
|
|
Exchange performance |
Forward method | Store-and-forward |
| MAC address table | 1K | |
| Bandwidth | 1.6G | |
|
Power parameters |
Input voltage | 100-240VAC |
| Power consumption | Standby: ≤2W; whole: ≤65W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | Port 1-3 max 30W , port 4 max 60W | |
|
Environment |
Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -30℃ to 70℃ | |
| Operating Humidity | 90% non-condensing | |
| Storage Humidity | 95%, non-condensing | |
| Physical properties | Size | 200*142*43mm |
| Weight | 1kg | |
