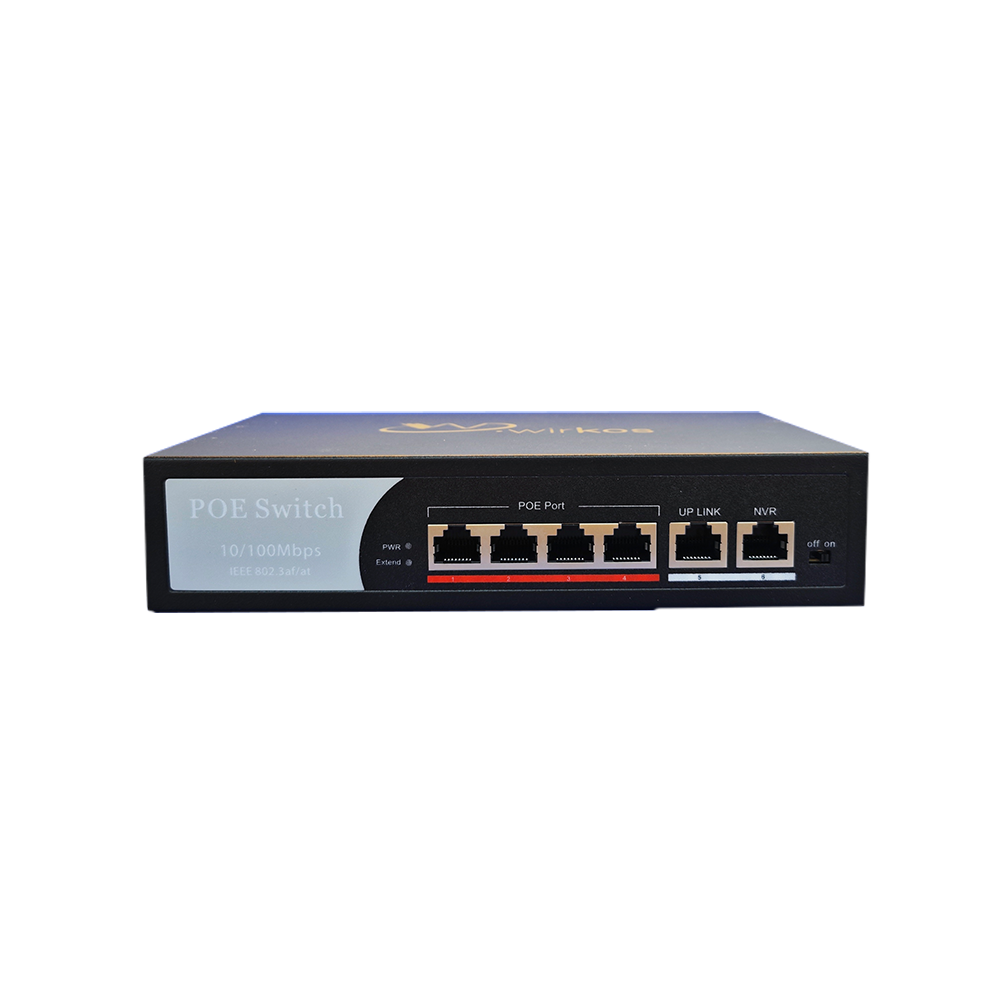

POE Switch/4+2 100Mbps

WKPOE-42

Supply power to wireless AP and IP Camera through CAT 5 cable
4 Port: 10/100M auto sensing RJ45 port. 2 Port: 10/100M auto sensing RJ45
Support port auto-flip (Auto MDI/ MDIX)
Total PoE Power: 65W (Port 1 – 4 )
Max PoE power output is
Support Vlan
Switch Mode: Port 1-4: 10/100M auto-sensing. @100 meters; Port 5-6: 100M @ 100 meters
Store and forward
Fanless design, natural Mini size.

Kodi i produktit : 8246 Kategori: PoE Switch

HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects

Product Model: WKPOE-42

Product Description: 4x 10/100M copper RJ45 Ports 2x 10/100M copper RJ45 Ports. standard PoE Switch. Port 1-4 support PoE function with port isolation function. IEEE802.3af/at, max PoE power output is 30W. Total power is 65W. supports Vlan. Built-in power supply.

Product Name

6-Port Standard PoE Switch

Model

WKPOE-42

Connector Type

4x 10/100M copper RJ45 Ports 2x 10/100M copper RJ45 Ports (All ports support MDI/MDIX

auto sensing) Port 1-4: PoE port, max PoE output for each port is 30W.

Network Media

100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters);

Bandwidth

1.2Gbps

Address Database Size

Network Latency

maximum delay less than 20 microseconds

Forwarding Mode

Store-And-Forward

Network Protocols

IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at

Power Supply

Input: AC100-240V, 50-60Hz

PoE Ports

4*PoE Ports

PoE Port Power

Max 30W

PoE Standard

IEEE802.3af/at

Working Environment

Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude:

3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)

Certification

CE Mark ,commercial CE/LVD EN60950

Radiation

CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 （CISPR 22）， Class B

Transmission Distance

Max 150 meters

Power Supply Type

1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)

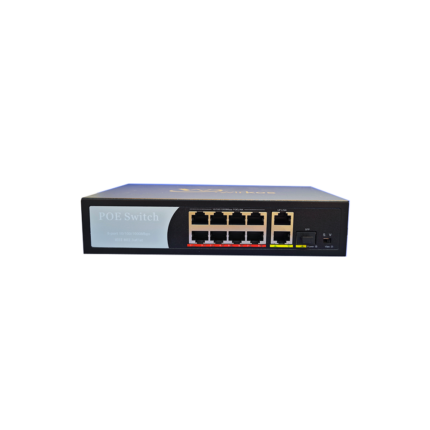

POE Switch 8100Mbps(POE) +21000Mbps (Uplink) +1*1000Mbps SFP port

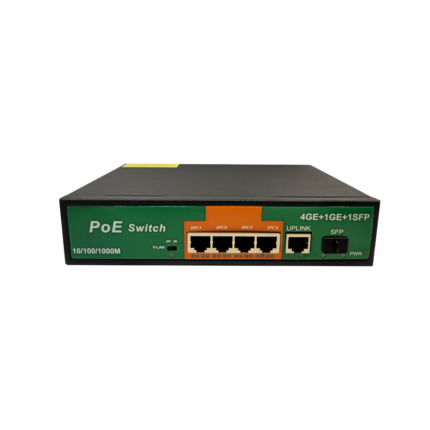

POE Switch 41000Mbps (POE ) + 1100Mbps ( Uplink) + 1*1000Mbps SFP port

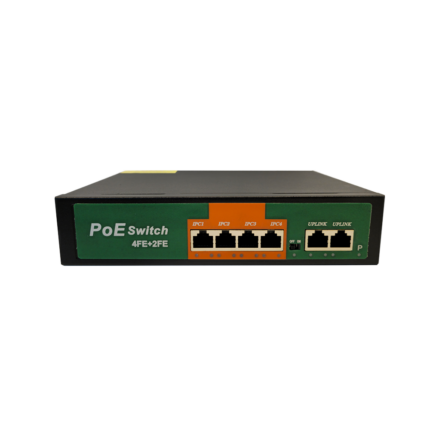

POE Switch 4100Mbps (POE ) + 2100Mbps ( Uplink)
