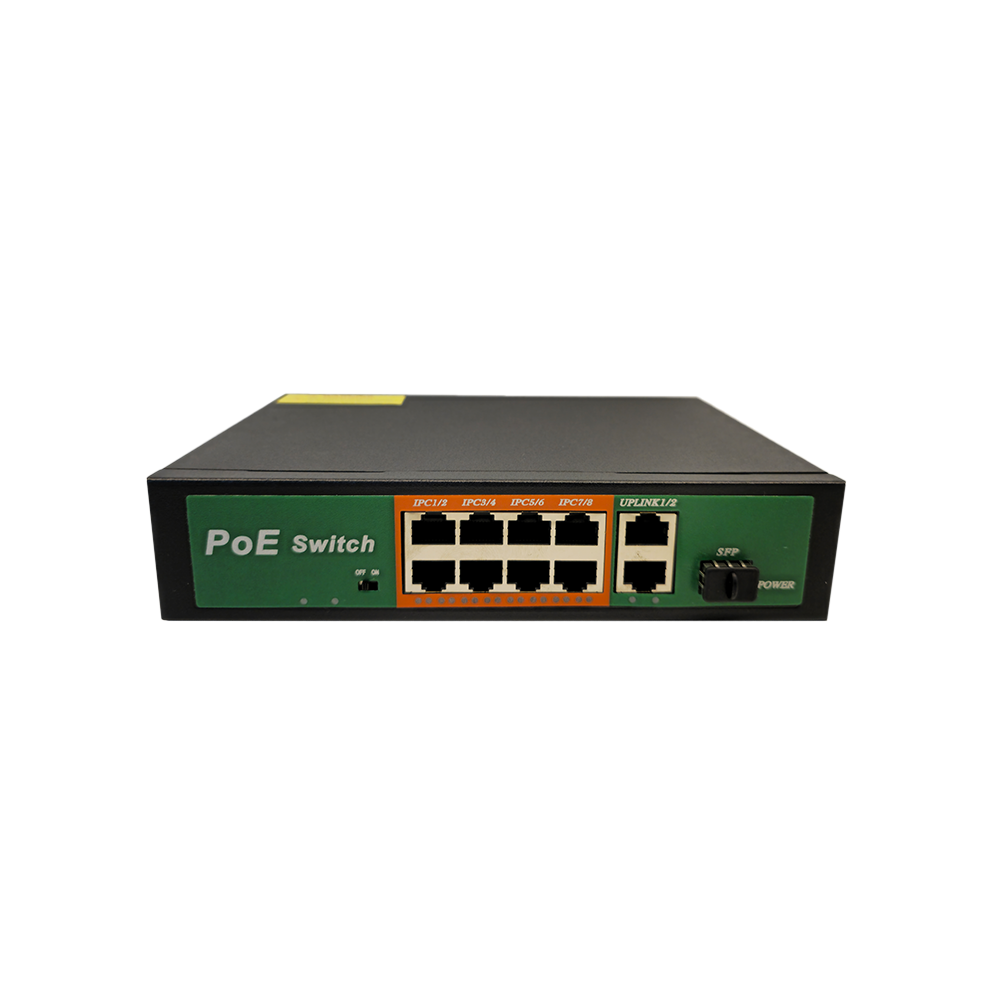

| Model | AP-1038KE | |
|
Fiber Port Characteristic |
Connector Type | SFP Slot |
|
Port Function |
Power supply priority, fast transmission, MAC automatic learning and aging, IEEE802.3X full-duplex and back- pressure half-duplex | |
| Indicator Light | Each port has 1 Link/ACT 100Mbps and 1 power light; whole machine power indicator; extend indicator | |
|
Ethernet port Characteristic |
Connector Type | 1×8 RJ45，1×2 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；
10/100/1000Mbps auto-negotiate |
|
|
Transmission distance |
10Base-T: ≤250m
100Base-TX: ≤100m 1000Base-T: ≤100m |
|
|
Exchange performance |
Forward method | Store-and-forward |
| MAC address table | 1K | |
| Bandwidth | 7.2G | |
|
Power parameters |
Input voltage | AC100~240V |
| Power consumption | Standby: ≤3W; whole: ≤120W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤30W | |
|
Environment |
Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -30℃ to 70℃ | |
| Operating Humidity | 90% non-condensing | |
| Storage humidity | 95% non-condensing | |
| Physical properties | Size | 200*142*43 mm |
| Weight | 1.2KG | |
