QRT 5 ac

Availability:

Out of stock


RB911G-5HPacD-QRT – QRT 5 ac (24dBi 11 degree Dual Chain 5Ghz 802.11ac integrated antenna, 720MHz CPU, 128MB RAM, GigabitEthernet, POE, PSU, pole mount, RouterOS L4)

DATASHEET

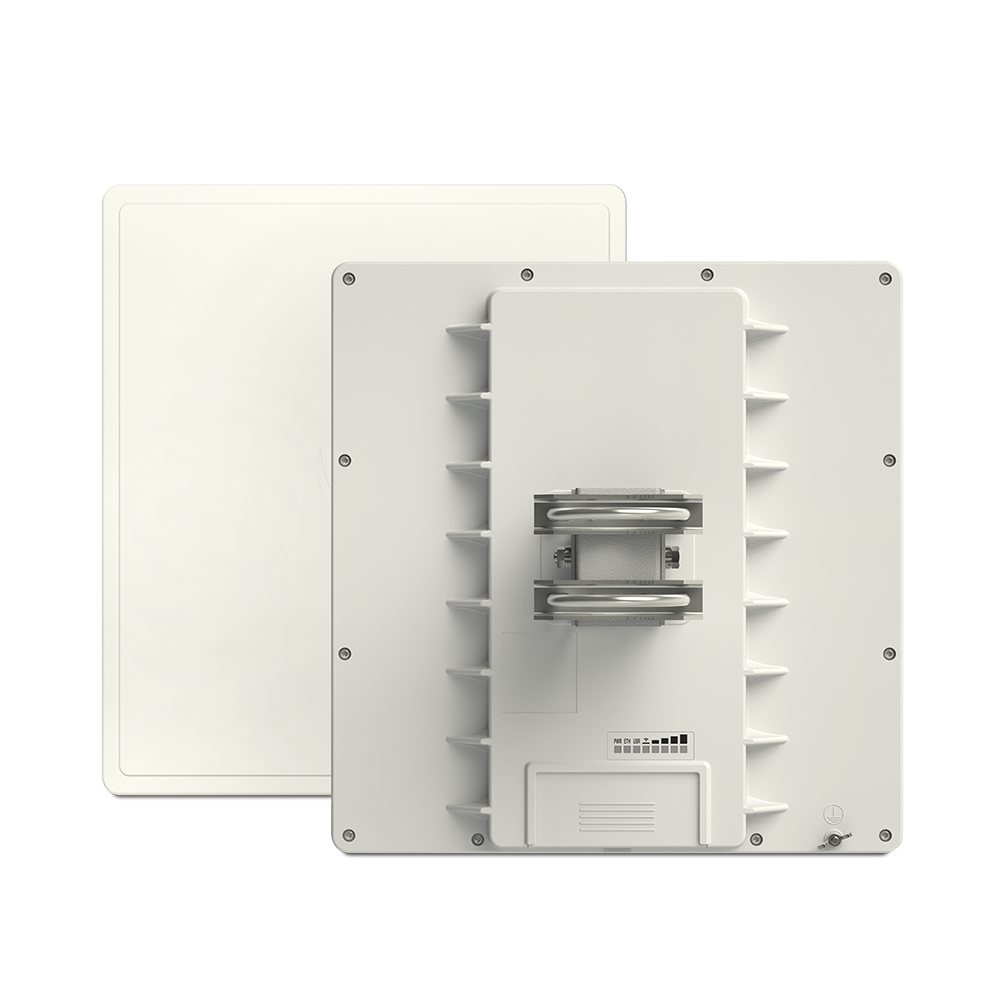

The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.

Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.

Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds.



Details
Product code RB911G-5HPacD-QRT
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 309x320x50mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 10.5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 24
Wireless 5 GHz chip model QCA9892
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72
