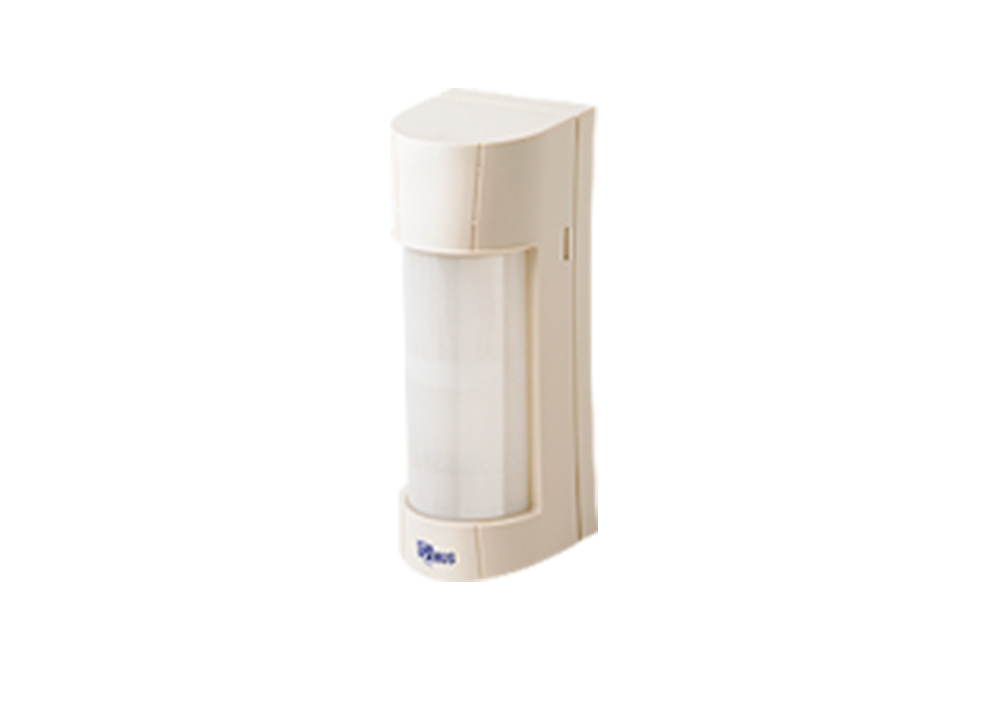

Spectrum Pa Wall AM

– Detection through double side (right+left) double PIR
– Detection range from 3 to 12 meters per side
– Antimasking with active IR (left+right)
– Tamper through accelerometer
– Light filter
– Digital temperature compensation
– Detection angle up to 10°
– Installation height 1,2 meters
– PET Immunity
– Block input for alarm relay
– Auxiliary input for tamper or alarm
– Alarm output c/nc
– Tamper output c/nc
– End of line resistors selectable for: Alarm-Tamper-Antimasking (2,2-4,7-5,6-10 Kohm)
– Walk test with led and buzzer activation
– Power supply from 10.5 Vdc to 15 Vdc
– Power consumption in stand-by: 25 mA
– Power consumption in alarm: 31 mA
– Dimensions (D x W x H): 68,3 x 75,4 x 189,4 mm

Protection class: IP 55
