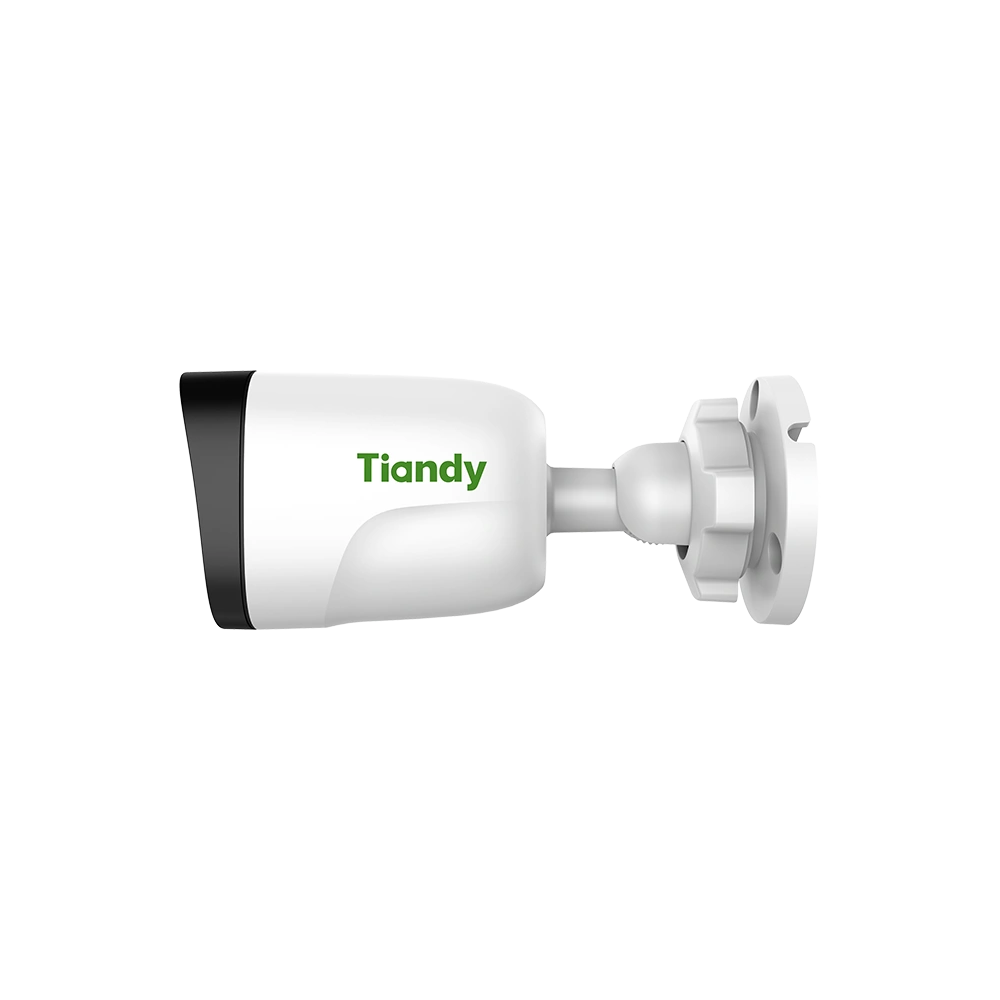

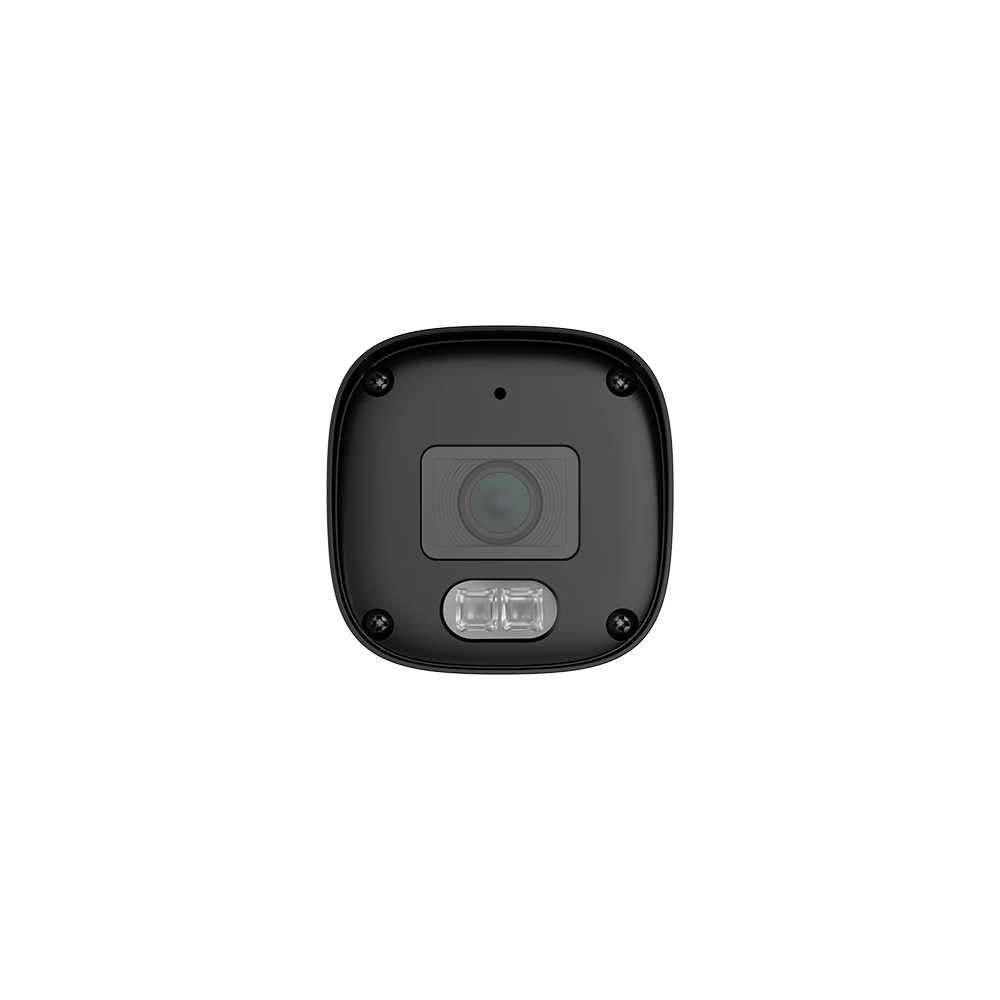

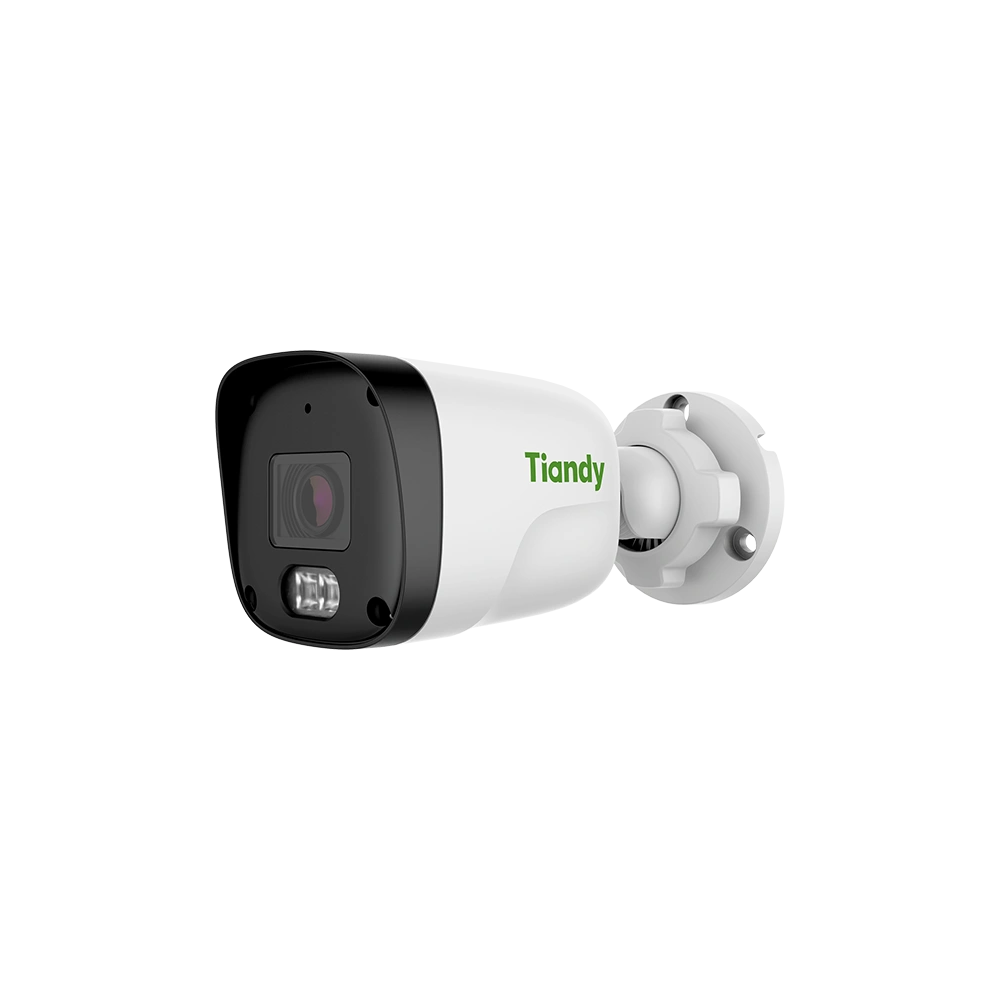

2MP Bullet Camera (TC-C321N 1ANB-4)
Përshkrim
Kjo kamerë IP Full HD 2MP me lente 4mm ofron monitorim të saktë në distanca më të gjata, ideale për oborre, hyrje dhe perimetra. Falë IR deri në 30 m, dritës së bardhë deri në 15 m, mikrofonit të integruar dhe kompresimit efikas S+265/H.265, siguron pamje të qarta ditë dhe natë. Me mbrojtje IP67 dhe furnizim PoE, është e përshtatshme për instalime profesionale të brendshme dhe të jashtme.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/3" CMOS |
| Minimum Illumination | Color: 0.02 Lux @ (F1.6, AGC ON) / B&W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with Auto Switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| Signal-to-Noise Ratio | >52 dB |
| Angle Adjustment | Pan: 0~360° / Tilt: 0~80° / Rotate: 0~360° |
| Lens Type | Fixed focal lens |
| Focal Length | 4 mm |
| Lens Mount | M12 |
| Aperture | F1.6 (Fixed) |
| Field of View | H: 75.3° / V: 39.9° / D: 87.1° |
| DORI Distance | Detect: 59.26 m / Observe: 23.52 m / Recognize: 11.85 m / Identify: 5.93 m |
| IR LEDs | 2 |
| IR Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| White LEDs | 2 |
| White Light Distance | Up to 15 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32 Kbps ~ 4 Mbps |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8 kHz |
| Maximum Resolution | 2 MP (1920 × 1080 @ 30 fps) |
| Main Stream | PAL: 25 fps / NTSC: 30 fps |
| Sub Stream | Multiple resolutions supported |
| BLC / HLC | Yes / Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Preset Modes |
| OSD | 1 region, up to 48 characters |
| Privacy Mask | 4 static areas |
| Defog | Yes |
| General Alarm | Motion Detection |
| Exception Alarm | IP Address Conflict |
| Network Protocols | RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH |
| System Compatibility | ONVIF (Profile S/T), SDK, CGI, Milestone |
| Remote Connection | ≤ 2 users |
| Client Software | Easy7 VMS |
| Web Browser Support | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ |
| Network Interface | 1× RJ45 (10/100 Base-T) |
| Built-in Microphone | Yes |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | ≤95% RH |
| Storage Temperature | -30°C ~ 60°C |
| Storage Humidity | 10% ~ 95% RH (non-condensing) |
| Power Supply | PoE IEEE 802.3af |
| Maximum Power Consumption | 2.5 W |
| Protection Level | IP67, Surge 4000V, ESD 6000V |
| Dimensions | 140 × 60 × 60 mm |
| Package Dimensions | 155 × 75 × 85 mm |
| Gross Weight | 0.2 kg |
