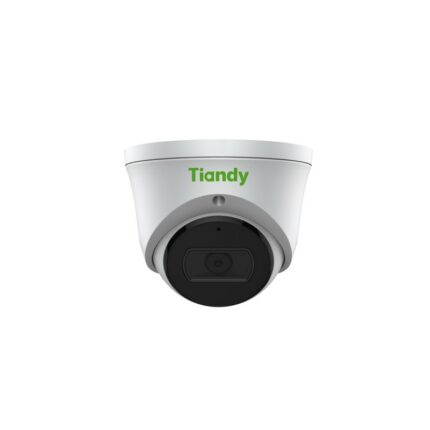

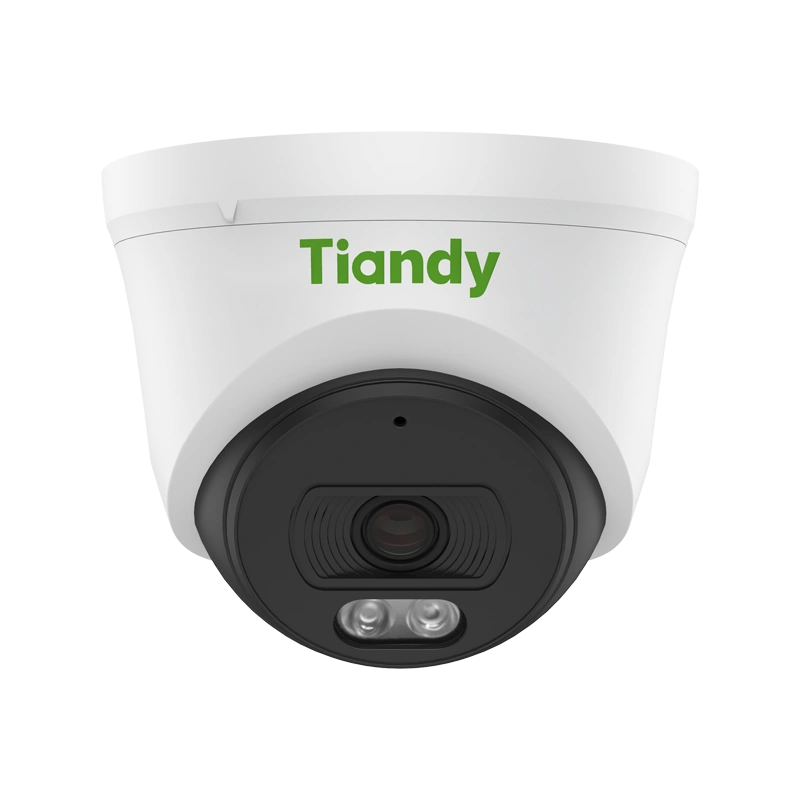

2MP Fixed Polar Day Turret Camera (TC-C32XV 2FNA-28)
80.06 €
TC-C32XV 2FNA-28
|
Camera |
|
|
Image Sensor |
1/2.9″CMOS |
|
Min. Illumination |
Color:0.0002Lux@(F1.0,AGC ON) |
|
Shutter Time |
1s~1/100000s |
|
Smart IR |
Yes |
|
WDR |
WDR |
|
S/N |
>48dB |
|
Angle Adjustment |
0~340°(P); 0~75°(T); 0~360°(R) |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
2.8mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.0 |
|
Aperture Type |
Fixed |
|
Field of View |
99°(H); 53.4°(V); 116.3°(D) |
|
DORI Distance |
Detect:40.0m Observe:15.9m Recognize:8.0m Identify:4.0m |
|
Illuminator |
|
|
White LEDs |
2 |
|
Whitelight Distance |
Up to 15m |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
Video Bit Rate |
32k~4Mbps |
|
Audio Compression |
G.711A/G.711U |
|
Audio Sampling Rate |
8kHz |
|
Image |
|
|
Max. Resolution |
2MP,1920×1080@30fps |
|
Main Stream |
PAL:25fps(1920×1080, 1280×720) NTSC:30fps(1920×1080, 1280×720) |
|
Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48; Lattice |
|
Privacy Mask |
4 black static areas |
|
Defog |
Yes |
|
Feature |
|
|
Exceptions Alarm |
IP Address Conflict |
|
Linkage Method |
Trigger Capture |
|
Video Analytics |
Smart Alarm |
|
Network |
|
|
Protocols |
RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast |
|
System Compatibility |
ONVIF(Profile S/T) ; SDK; CGI; Milestone |
|
Remote Connection |
≤2 |
|
Client |
Easy7 VMS |
|
Moblie Client |
EasyLive Plus |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Interface |
|
|
Communication Interface |
1×RJ-45 (10/100 Base-T) |
|
Built-in Mic |
1×Built-in Mic |
|
General |
|
|
Web Client Language |
12 languages English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese |
|
Operating Temperature |
-30℃~60℃(-22℉~140℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-30℃~60℃(-22℉~140℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC12V±25%,Max. 4.5W; PoE:IEEE 802.3af,Max. 6W |
|
Protection |
Surge4000V; ESD6000V; IP66 |
|
Boundary Dimensions |
117(L)117(W)96(H)mm |
|
Package Dimensions |
140(L)140(W)120(H)mm |
|
GrossWeight |
0.41kg |
