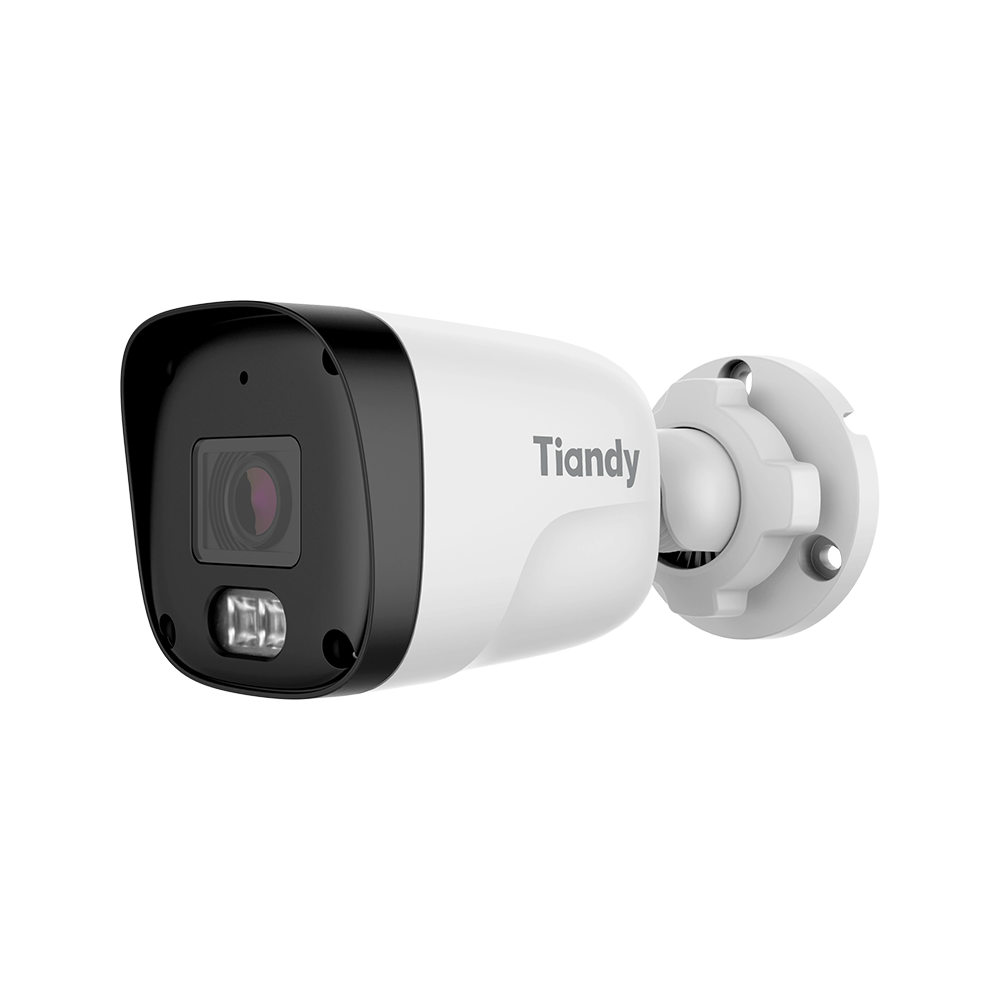

4MP Fixed Color Maker Bullet Camera TC-C341N 1ANA-28
TC-C341N 1ANA-28
Përshkrim
Kamerë IP 4MP me lente fikse 2.8mm, ndriçim IR deri 30m dhe dritë të bardhë deri 15m. Mbështet kompresimin H.265, teknologjinë Smart IR, analizën bazë të videos dhe mbrojtje IP67 për përdorim të jashtëm.
Specifications
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/3" CMOS |
| Min. Illumination | Color: 0.02Lux@(F1.6,AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >52dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 91.5°(H); 51.2°(V); 103.6°(D) |
| DORI Distance | Detect: 56m / Observe: 22.2m / Recognize: 11.2m / Identify: 5.6m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | Up to 15m |
| Compression | |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 4MP, 2560×1440@30fps |
| Main Stream | PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720) / NTSC: 30fps |
| Sub Stream | PAL: 25fps / NTSC: 30fps |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament Lamp / Lock |
| OSD | Character Overlay, max. 48 characters |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Motion Detection |
| Exceptions Alarm | IP Address Conflict |
| Network Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
| System Compatibility | ONVIF(Profile S/T); SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Web Browser | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| General | |
| Web Client Language | English |
| Operating Temperature | -30℃~60℃ |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃ |
| Storage Humidity | 10%~95%RH (non-condensing) |
| Power Supply | PoE: IEEE 802.3af, Max. 2.5W |
| Protection | Surge 4000V; ESD 6000V; IP67 |
| Boundary Dimensions | 140(L) × 60(W) × 60(H) mm |
| Package Dimensions | 155(L) × 75(W) × 85(H) mm |
| Net Weight | 0.15kg |
| Gross Weight | 0.20kg |
