Name: UniFi SuperLink High-Gain Antenna UACC-USL-ANT-HG
Brand: Unifi
SKU: 85096
Price: 57.67 EUR
Availability: InStock

UniFi SuperLink High-Gain Antenna UACC-USL-ANT-HG

57.67 €

UACC-USL-ANT-HG

Koha e arritjes së produktit : Sht 17, 2026 - Sht 18, 2026

Kategori: UniFi Brand: Unifi

Category	Specification
Product Type	UniFi Protect SuperLink Outdoor Antenna
Dimensions (Device)	468.9 × 31.8 × 44.1 mm
Dimensions (With Cable)	1458.4 × 31.8 × 44.1 mm
Cable Length	1000 mm
Cable Diameter	Ø5.2 mm
Weatherproofing	IP67
Mounting	Pole Mount
Pole Mount Diameter	25–55 mm (1–2.17")
Wind Loading	25.4 N at 200 km/h
UniFi Application Suite	UniFi Protect
Operating Frequency SuperLink (US)	860–930 MHz
Operating Frequency SuperLink (EU)	860–930 MHz
Bluetooth Frequency	2400–2480 MHz
Bluetooth Antenna Gain	4 dBi
SuperLink Antenna Gain	7 dBi
Maximum Range Bluetooth	Up to 100 m
Maximum Range SuperLink	Up to 5 km
Device Weight	275 g
Cable Weight	65 g
Enclosure Material	Polycarbonate + Glass Fiber
Mount Material	Stainless Steel
Antenna Connector	1× RP-N Female
Antenna Cable Connector	RP-SMA Male / RP-N Male
Operating Temperature	-40°C to 60°C
Operating Humidity	10%–90% Non-condensing
Certifications	CE

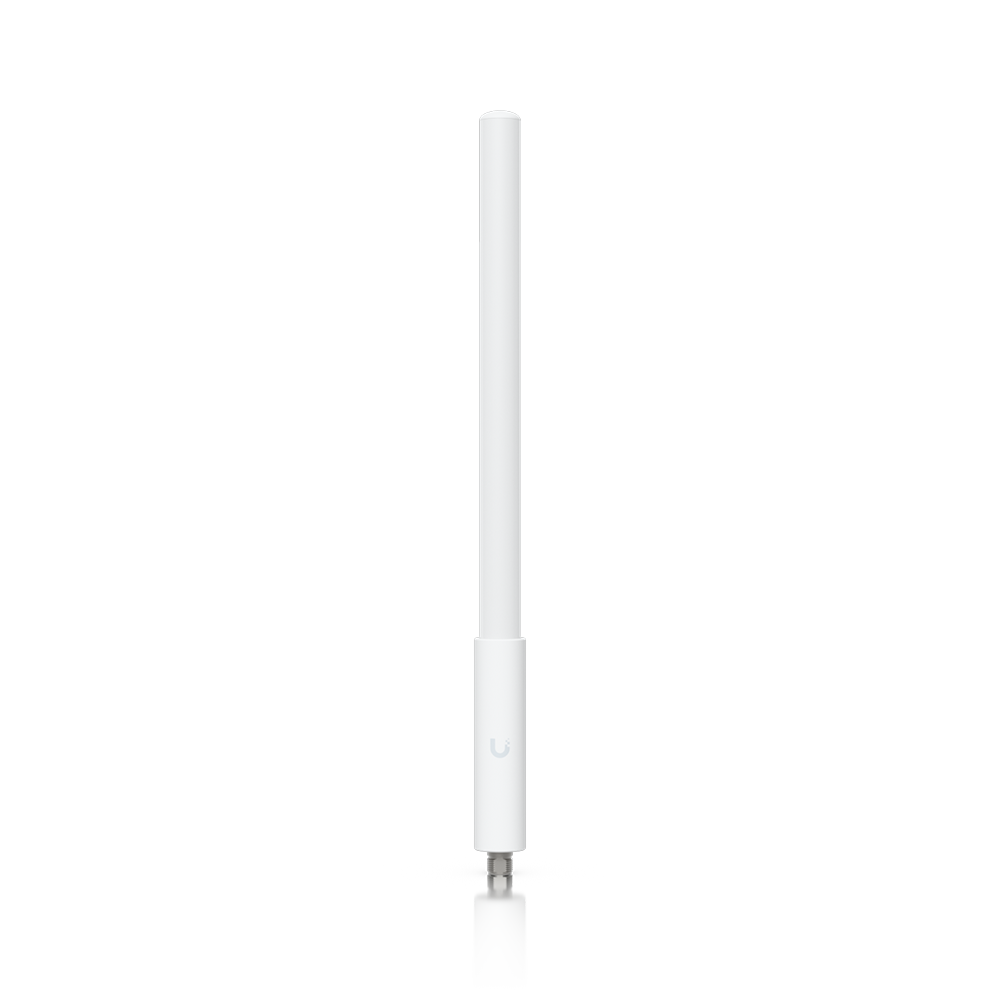

UniFi SuperLink High-Gain Antenna UACC-USL-ANT-HG - Figura 1

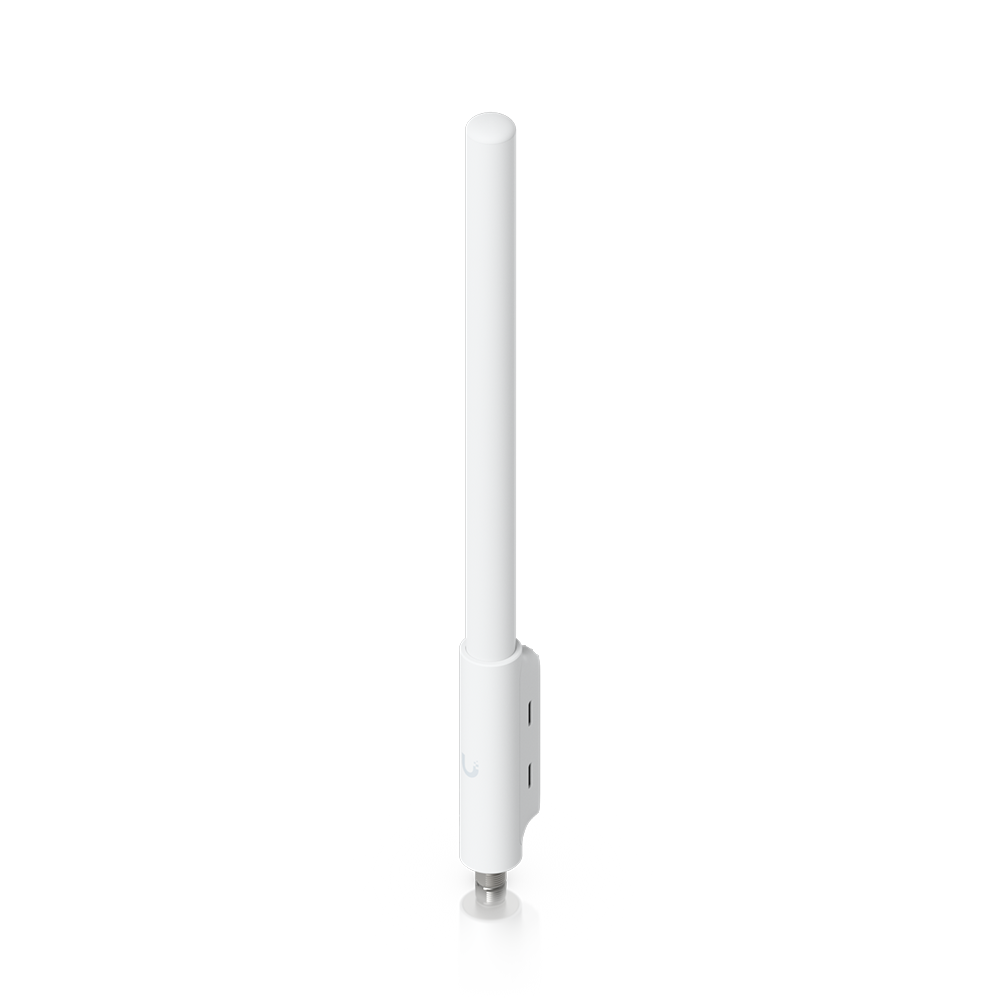

UniFi SuperLink High-Gain Antenna UACC-USL-ANT-HG - Figura 2

Click to enlarge

UniFi SuperLink High-Gain Antenna UACC-USL-ANT-HG

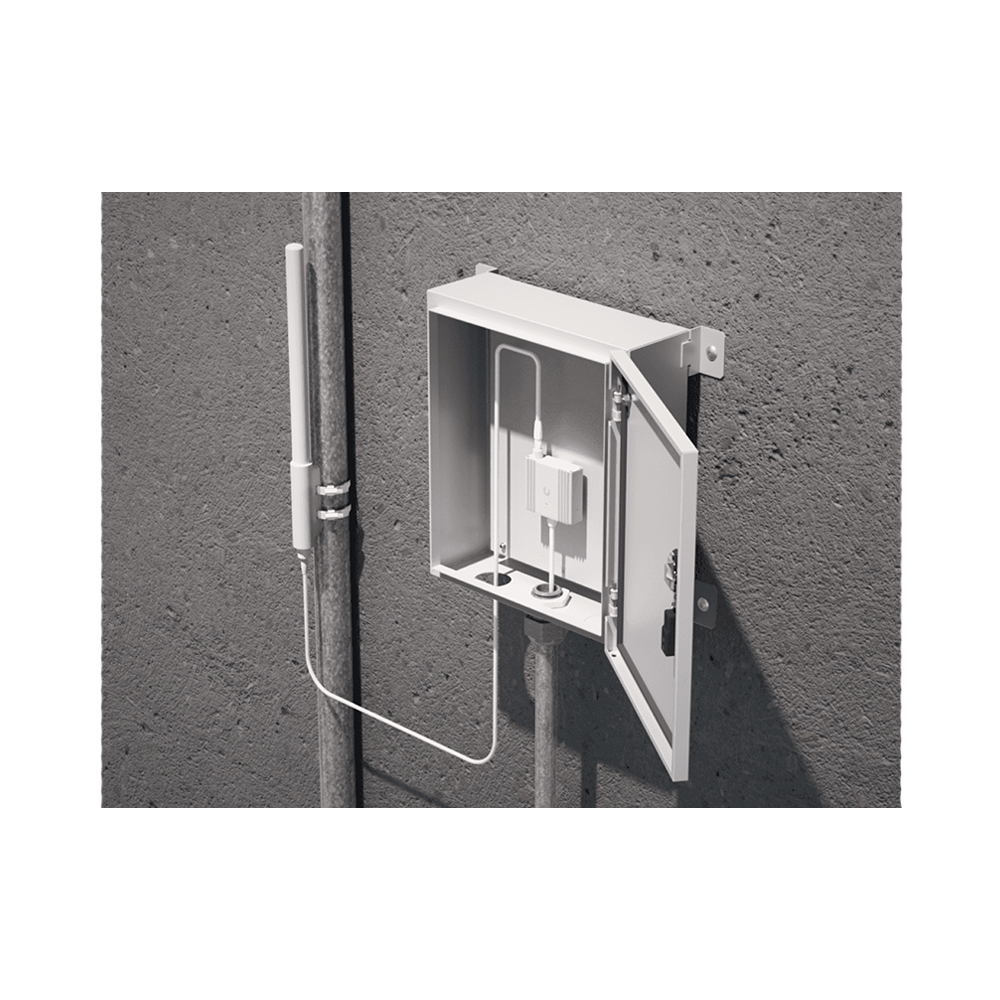

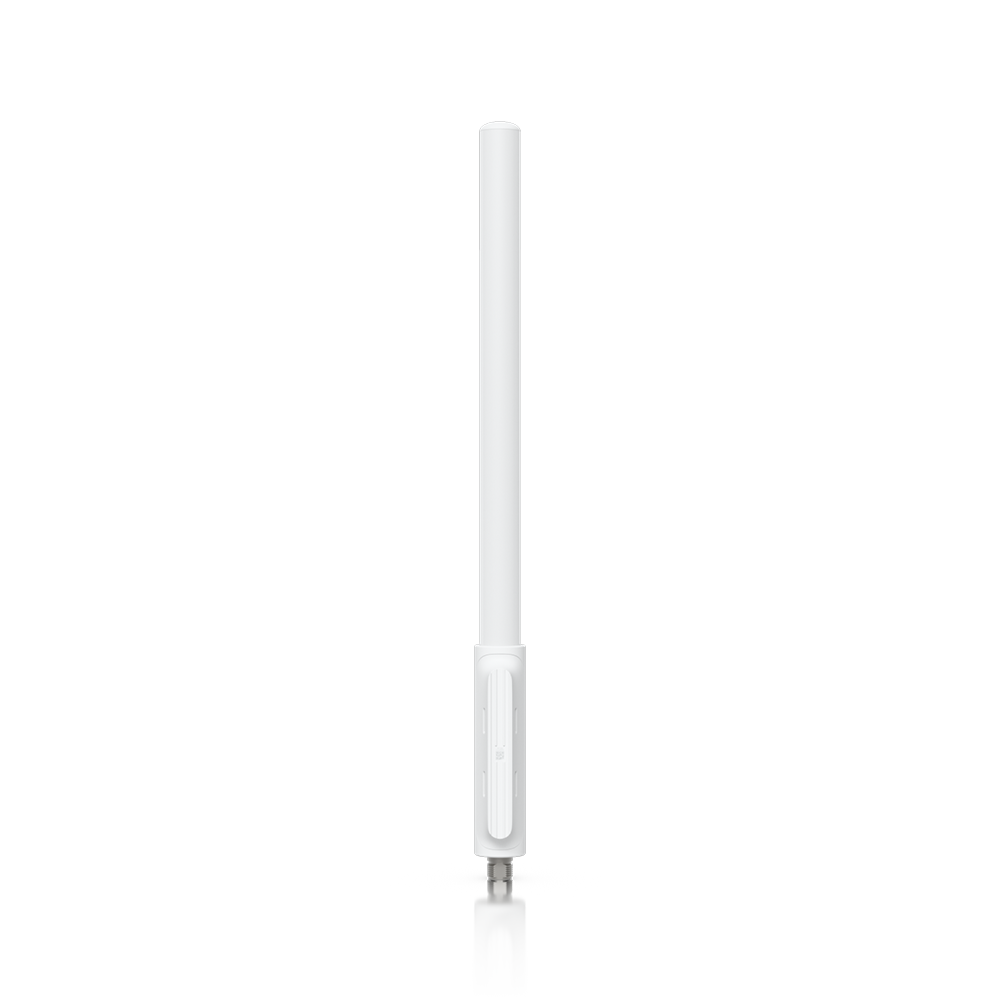

UniFi SuperLink High-Gain Antenna UACC-USL-ANT-HG - Figura 3

UniFi SuperLink High-Gain Antenna UACC-USL-ANT-HG - Figura 4

Përshkrim
Specificationss

Përshkrim

Antenë profesionale UniFi Protect SuperLink për komunikim me distancë të gjatë deri në 5 km, e dizajnuar për ambiente të jashtme me mbrojtje IP67. Instalohet në shtylla dhe ofron lidhje stabile për sensorë dhe pajisje IoT përmes teknologjisë SuperLink dhe Bluetooth.

Specificationss

Category	Specification
Product Type	UniFi Protect SuperLink Outdoor Antenna
Dimensions (Device)	468.9 × 31.8 × 44.1 mm
Dimensions (With Cable)	1458.4 × 31.8 × 44.1 mm
Cable Length	1000 mm
Cable Diameter	Ø5.2 mm
Weatherproofing	IP67
Mounting	Pole Mount
Pole Mount Diameter	25–55 mm (1–2.17")
Wind Loading	25.4 N at 200 km/h
UniFi Application Suite	UniFi Protect
Operating Frequency SuperLink (US)	860–930 MHz
Operating Frequency SuperLink (EU)	860–930 MHz
Bluetooth Frequency	2400–2480 MHz
Bluetooth Antenna Gain	4 dBi
SuperLink Antenna Gain	7 dBi
Maximum Range Bluetooth	Up to 100 m
Maximum Range SuperLink	Up to 5 km
Device Weight	275 g
Cable Weight	65 g
Enclosure Material	Polycarbonate + Glass Fiber
Mount Material	Stainless Steel
Antenna Connector	1× RP-N Female
Antenna Cable Connector	RP-SMA Male / RP-N Male
Operating Temperature	-40°C to 60°C
Operating Humidity	10%–90% Non-condensing
Certifications	CE
