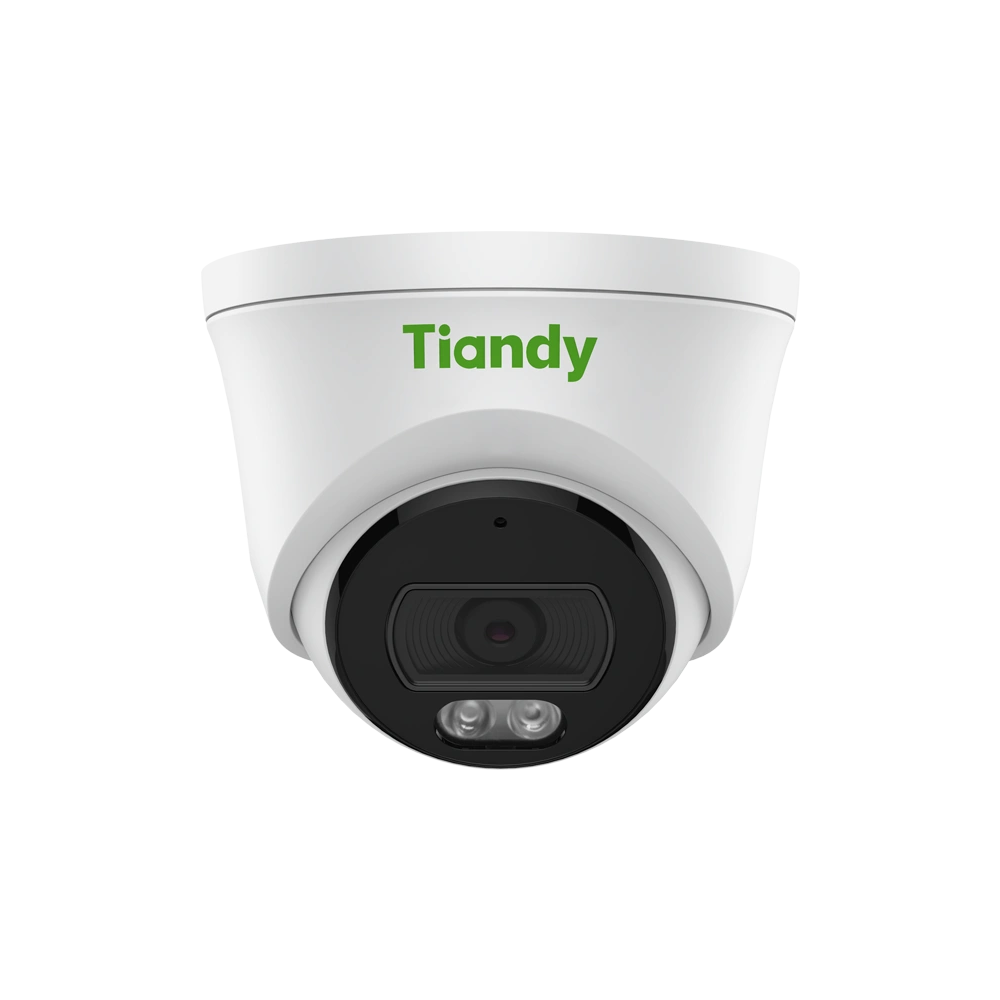

5MP Fixed Color Maker Turret Camera (TC-C35XP 3FRA-28)
131.32 €
TC-C35XP
3FRA-28
Koha e arritjes së produktit : Kor 27, 2026 - Kor 28, 2026
Përshkrim
Kjo kamerë 5MP me fokus fiks mbështet dalje video deri në 4K, ka IR për natën, mbështet analitikë inteligjente për njerëz dhe automjete, dhe mund të përdorë kartë microSD deri në 512GB
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.0004Lux@(F1.0, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | Fixed IR-cut |
| WDR | 120 dB |
| S/N Ratio | >39 dB |
| Angle Adjustment (PTZ) | Pan: 0~340°, Tilt: 0~75°, Rotation: 0~360° |
| Lens Type | Fixed Focal Lens, Focal Length: 2.8mm, M12 Mount, Aperture F1.0 |
| Field of View | 109°(H), 59°(V), 125.4°(D) |
| DORI Distance | Detect: 56m, Observe: 22m, Recognize: 11m, Identify: 5.6m |
| Illuminator | 2 White LEDs, 15m White Light |
| Video Compression | S+265, H.265, H.264B/M/H |
| Video Bit Rate | 32 kbps ~ 6 Mbps |
| Audio Compression | G.711A/U, ADPCM_D |
| Audio Sampling Rate | 8kHz / 32kHz / 48kHz |
| Max Resolution | 5MP (3072×1728@20fps) |
| Frame Rates | Main Stream PAL: 20fps/25fps, NTSC: 20fps/30fps; Sub Stream PAL: 25fps, NTSC: 30fps |
| BLC / HLC / AGC / 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warm Light Lamp/Daylight Lamp/Filament Lamp/Lock |
| ROI | 8 rectangular static areas |
| OSD | Overlay 1 region, 1 line, max 48 characters |
| Privacy Mask | 4 static black areas |
| Defog | Yes |
| General Alarm | Motion Detection, Mask Alarm |
| Exceptions Alarm | Disk Full, Disk R/W Error, IP Conflict, Network Disconnected |
| Linkage Method | Trigger Recording, Trigger Capture, Notify Surveillance Center |
| Video Analytics | Human/Vehicle Classification, Tripwire, Perimeter |
| Scene Rules | 1 Scene, 2 Rules |
| ANR | Yes |
| Network Protocols | RTSP, HTTP/HTTPS, TCP/UDP, UPnP, ICMP, SNMP v1/v2/v3, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4/IPv6, Multicast, ARP, FTP |
| System Compatibility | P2P, ONVIF(Profile S/T/G), SDK, CGI, Milestone |
| Remote Connection | ≤2 |
| Client / Mobile Client | Easy7 VMS / EasyLive Plus |
| Web Access | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Interface | 1×RJ-45 (10/100 Base-T), 1×Built-in Mic, Reset Button Yes |
| On-board Storage | microSD/microSDHC/microSDXC up to 512GB |
| RTC | Yes |
| UI Language | 20 languages (including English, Albanian, Spanish, etc.) |
| Operating Temperature | -35℃ ~ +65℃ |
| Operating Humidity | ≤95% RH |
| Storage Temperature | -35℃ ~ +65℃ |
| Storage Humidity | 10% ~ 95% RH (non-condensing) |
| Power Supply | DC12V ±25%, Max 6W; PoE IEEE 802.3af, Max 7W |
| Protection | Surge 4000V, ESD 6000V, IP67 |
| Dimensions | 117 × 117 × 96 mm |
| Package Dimensions | 140 × 140 × 120 mm |
| Gross Weight | 0.466 kg |
| Package Kit | Camera, Screw Pack, Mouse, DC Adapter, EU Power Cord, Instructions, Parts List |
