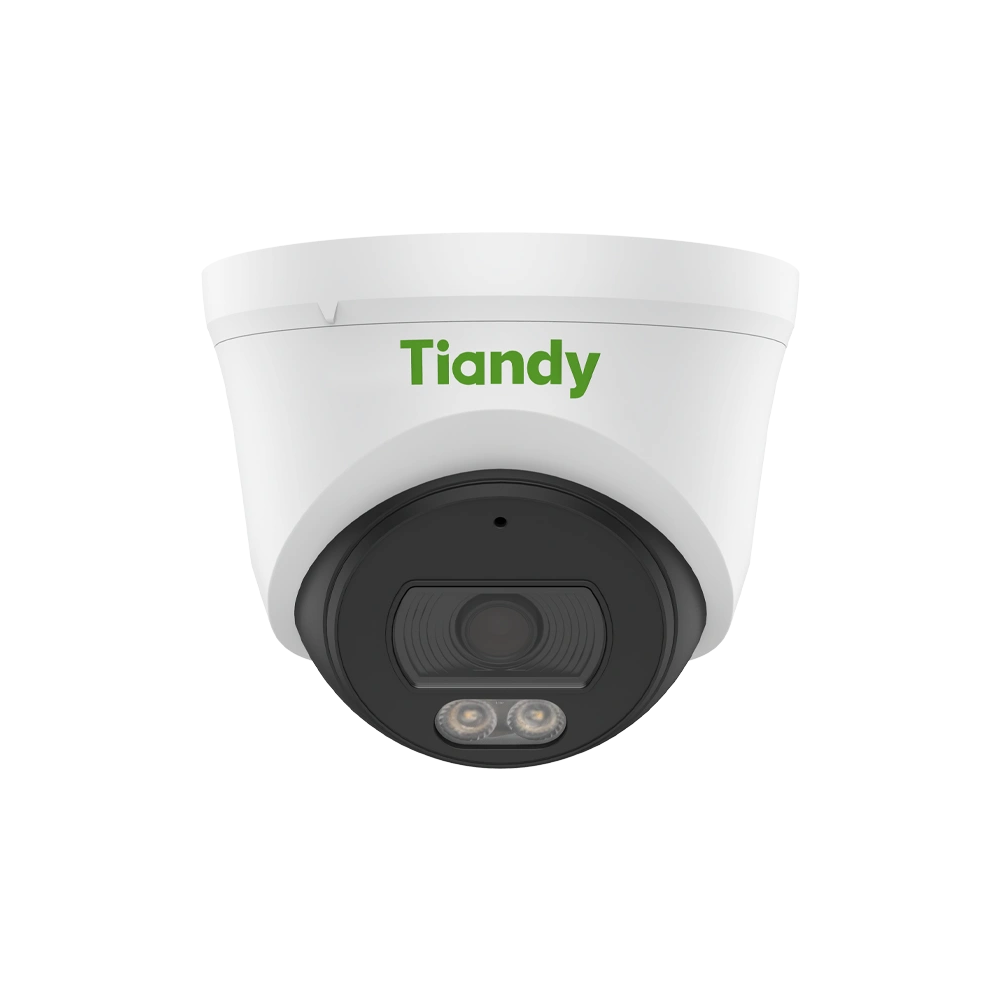

4MP Turret Camera TC-C34XN 2ENA-28
80.00 €
TC-C34XN
2ENA-28
Koha e arritjes së produktit : Kor 7, 2026 - Kor 8, 2026
Përshkrim
Kamera 4MP me fokus fiks, mbështetje IR deri në 30m, detektim inteligjent për njerëz dhe automjete, PoE deri 4W, mbështetje microSD deri 512GB.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/3" CMOS |
| Min. Illumination | Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N Ratio | >52 dB |
| Angle Adjustment (PTZ) | Pan: 0~340°, Tilt: 0~75°, Rotation: 0~360° |
| Lens Type | Fixed focal lens, 2.8mm, M12 Mount, F1.6 |
| Field of View | 91.5°(H), 51.2°(V), 103.6°(D) |
| DORI Distance | Detect: 56m, Observe: 22.2m, Recognize: 11.2m, Identify: 5.6m |
| Illuminator | 2 IR LEDs (30m), 2 White LEDs (15m), Wavelength 850nm |
| Video Compression | S+265, H.265, H.264B/M/H |
| Video Bit Rate | 32 kbps ~ 6 Mbps |
| Audio Compression | G.711A/U |
| Audio Sampling Rate | 8 kHz |
| Max Resolution | 4MP (2560×1440@30fps) |
| Main Stream FPS | PAL: 25fps, NTSC: 30fps |
| Sub Stream FPS | PAL: 25fps, NTSC: 30fps |
| BLC / HLC / AGC / 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warm Light Lamp/Daylight Lamp/Filament Lamp/Lock |
| ROI | 8 static rectangular areas |
| OSD | 1 region, max 48 characters |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| General Alarm | Smart Alarm (human & vehicle detection) |
| Exceptions Alarm | IP Conflict |
| Linkage Method | Trigger Capture |
| Video Analytics | Human/Vehicle Classification, Tripwire, Perimeter |
| Scene Rules | 1 Scene, 2 Rules |
| ANR | Yes |
| Network Protocols | RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast |
| System Compatibility | P2P, ONVIF(Profile S/T), SDK, CGI, Milestone |
| Remote Connection | ≤2 |
| Client / Mobile | Easy7 VMS / EasyLive Plus |
| Web Access | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Interface | 1×RJ-45 (10/100 Base-T), 1×Built-in Mic, Reset Button Yes |
| On-board Storage | microSD/microSDHC/microSDXC up to 512GB |
| RTC | Yes |
| UI Language | 12 languages (English, Albanian, etc.) |
| Operating Temp / Humidity | -30℃~60℃ / ≤95% RH |
| Storage Temp / Humidity | -30℃~60℃ / 10~95% RH |
| Power Supply | PoE IEEE 802.3af, Max 4W |
| Protection | Surge 4000V, ESD 6000V, IP66 |
| Dimensions | 117 × 117 × 96 mm |
| Package Dimensions | 140 × 140 × 120 mm |
| Gross Weight | 0.38 kg |
| Package Kit | Camera, Screw Pack, Mouse, DC Adapter, EU Power Cord, Instructions, Parts List |
