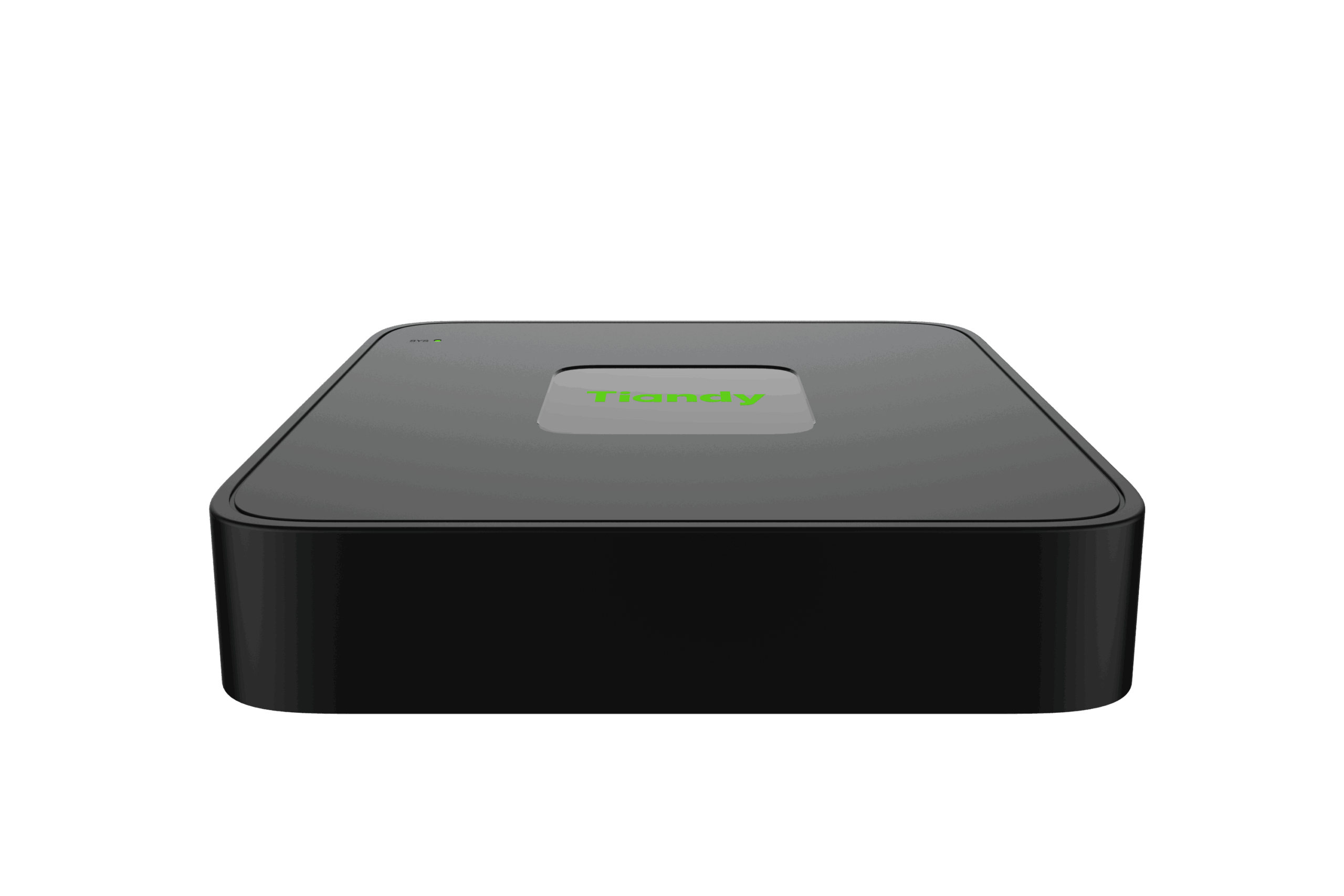

H.265 1 HDD 5ch NVR (TC-R3105)


TC-R3105
Spec: I/B/L/Eu/V1.1

DATASHEET

68.15

KEY FEATURESHD Input• S 265/H.265/H.264 video formats• Connectable to the third-party network cameras• Support live view, storage, and playback of the connected camera at up to 6MP resolutionHD Output• 1×HDMI and 1×VGA simultaneous outputs• HDMI Video output at up to 4K resolution

HD Storage

• 1 SATA interface, up to 8TB for 1 HDD

• S 265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1×RJ45 self-adaptive 10/100 Mbps network interface

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Web6 supports plug-in free browsing and can preview videos on all browsers

• Support cloud upgrade

Kodi i produktit : 8566 Kategori:
Video and Audio
Access Channel 5
Incoming Bandwidth 60Mbps
Outgoing Bandwidth 40Mbps
Resolution 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×5, 4CIF(30fps)×5
Third-party Camera Access ONVIF; RTSP
HDMI Output HDMI:1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)
Liveview display Simultaneous Output: VGA: 1/3/4/5/6 HDMI: 1/3/4/5/6
VGA Output VGA:1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display 1/3/4/5/6
Compression
Video S+265; H.265; S+264; H.264
Audio G711A; G711U; ADPCM_DIV4
Stream Type Video; Video & Audio
Network
Network Protocol 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NTP; RTCP; RTP; RTSP; SRTP; SSH; TLSv1.2, TLSv1.3; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access Android; iOS; P2P_A
System Compatibility RTSP; CGI; SDK
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Record Playback
Multi-channel Playback 4
Record Mode Manual recording; Alarm recording; Schedule recording
Storage Method Local HDD
Backup USB storage device
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing)/Step/Digital Zoom
Alarm
General Alarm Motion; Mask Alarm; Alarm Input(IPC); Video Loss
Exceptions Alarm IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; IPC voltage abnormal; RTC failure
Intelligent Analytics
AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Lens Dignose; Scene Switch Dignose; Signal Abnormal Detection; Signal Loss Detection; On Duty Detection; Crowd Detection; Advanced Intelligence
VCA Search Early-warning search
Storage
HDD Capacity Up to 8TB capacity for each HDD
Disk Group 1 Disk Group
External Port
USB 2×USB2.0
HDMI 1×HDMI
VGA 1×VGA
Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA 1×SATA interface
General
UI Language English; Spanish; Italian; Turkish; French; Polish; Hebrew; German; Portuguese
Power Supply DC12V 1.5A
Power Consumption <10W(HDD not included, idling)
NetWeight 0.4 kg
GrossWeight 0.7 kg
Boundary Dimensions 200(L)200(W)43(H)mm
Package Dimensions 315(L)70(W)235(H)mm
Operating Temperature -10℃~+55℃
Operating Humidity 10%~90%RH
Storage Temperature -10℃~+55℃
Storage Humidity 10%~90%RH
Package Kit Network Video Recorder; Screw pack; Mouse; Power adapter
