Name: 2HDD 20ch PSE AI NVR TC-R3220 416HA
Brand: Tiandy
SKU: 84525
Availability: InStock

2HDD 20ch PSE AI NVR TC-R3220 416HA

409.98 €

TC-R3220
416HA

Koha e arritjes së produktit : Kor 6, 2026 - Kor 7, 2026

Category	Specification
Access Channels	20
Incoming Bandwidth	160 Mbps (AI on: 120 Mbps)
Outgoing Bandwidth	80 Mbps
Resolution Support	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Preview Decoding	16MP×1, 8MP×2, 6MP×3, 5MP×4, 4MP×5, 3MP×6, 1080P×10, 720P×20, 4CIF×20
Playback Decoding	16MP×1, 8MP×2, 6MP×3, 5MP×4, 4MP×5, 3MP×6, 1080P×10, 720P×16
Third-party Camera Access	ONVIF (Profile S/T), RTSP
HDMI Output	Up to 4K
VGA Output	Up to 1080P
Audio	Input: 1×3.5mm, Output: 1×RCA, Two-way: 1×3.5mm
Compression	Video: S+265, H.265, S+264, H.264; Audio: G.711A, G.711U, AAC, ADPCM_D
Network Protocols	ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/IPv6, Multicast, NFS, NTP, PPPoE, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP v1/2/3, SRTP, SSH, SSL, TLSv1.2/1.3, TCP/IP, UDP, UPnP
Mobile Access	Android, iOS, P2P_A
Web Access	IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Recording	Multi-channel 16, Modes: Manual, Alarm, Schedule
Storage	Local HDD, Backup via USB or Network
AI Analytics	Tripwire, Perimeter, Object Abandon/Missing, Running, Parking, Heatmap, Loitering, Crowd Detection, Safety Helmet, Electric Bicycle Detection, People Counting, Smoke/Fire, Face Detection, Body Temp, Facial Recognition
Face Library	10 libraries, 20,000 base images
HDD / RAID	2×SATA, Up to 10TB per disk, RAID: JBOD/0/1/5/6/10
USB Ports	1×USB2.0, 1×USB3.0
PoE Ports	16×RJ45, 30W per port, 200W total, IEEE 802.3 af/at
Power Supply	100–240V AC, Power <10W (without HDD & PoE)
Weight	Net: 3.1 kg, Gross: 4.45 kg
Dimensions (L×W×H)	440×284×48 mm
Operating Temp / Humidity	-10℃~+55℃, 10%~90% RH
Package	NVR, Screws, Mouse, Power Adapter, EU Power Cord, Ear Plates, SATA Data & Power Cables, Manual

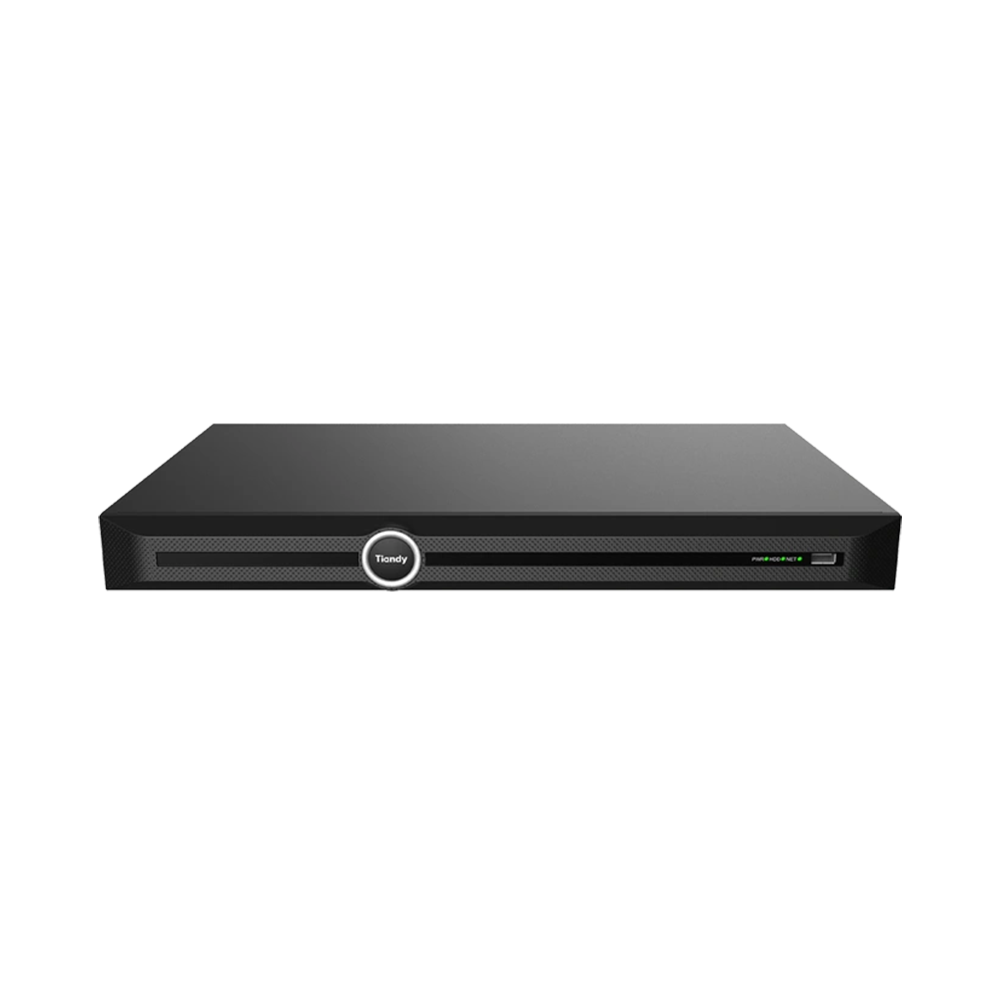

2HDD 20ch PSE AI NVR TC-R3220 416HA - Figura 1

Click to enlarge

Kategori: AI, NVR, NVR 20ch+ Brand: Tiandy

Përshkrim
Specifications

Përshkrim

Ky NVR mundëson dekodimin dhe regjistrimin e 20 kanaleve video, mbështet rezolucione deri në 16MP, ka dalje HDMI dhe VGA, PoE 16 portet dhe AI për njohjen e fytyrave dhe analizën inteligjente.

Specifications

Category	Specification
Access Channels	20
Incoming Bandwidth	160 Mbps (AI on: 120 Mbps)
Outgoing Bandwidth	80 Mbps
Resolution Support	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Preview Decoding	16MP×1, 8MP×2, 6MP×3, 5MP×4, 4MP×5, 3MP×6, 1080P×10, 720P×20, 4CIF×20
Playback Decoding	16MP×1, 8MP×2, 6MP×3, 5MP×4, 4MP×5, 3MP×6, 1080P×10, 720P×16
Third-party Camera Access	ONVIF (Profile S/T), RTSP
HDMI Output	Up to 4K
VGA Output	Up to 1080P
Audio	Input: 1×3.5mm, Output: 1×RCA, Two-way: 1×3.5mm
Compression	Video: S+265, H.265, S+264, H.264; Audio: G.711A, G.711U, AAC, ADPCM_D
Network Protocols	ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/IPv6, Multicast, NFS, NTP, PPPoE, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP v1/2/3, SRTP, SSH, SSL, TLSv1.2/1.3, TCP/IP, UDP, UPnP
Mobile Access	Android, iOS, P2P_A
Web Access	IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Recording	Multi-channel 16, Modes: Manual, Alarm, Schedule
Storage	Local HDD, Backup via USB or Network
AI Analytics	Tripwire, Perimeter, Object Abandon/Missing, Running, Parking, Heatmap, Loitering, Crowd Detection, Safety Helmet, Electric Bicycle Detection, People Counting, Smoke/Fire, Face Detection, Body Temp, Facial Recognition
Face Library	10 libraries, 20,000 base images
HDD / RAID	2×SATA, Up to 10TB per disk, RAID: JBOD/0/1/5/6/10
USB Ports	1×USB2.0, 1×USB3.0
PoE Ports	16×RJ45, 30W per port, 200W total, IEEE 802.3 af/at
Power Supply	100–240V AC, Power <10W (without HDD & PoE)
Weight	Net: 3.1 kg, Gross: 4.45 kg
Dimensions (L×W×H)	440×284×48 mm
Operating Temp / Humidity	-10℃~+55℃, 10%~90% RH
Package	NVR, Screws, Mouse, Power Adapter, EU Power Cord, Ear Plates, SATA Data & Power Cables, Manual
