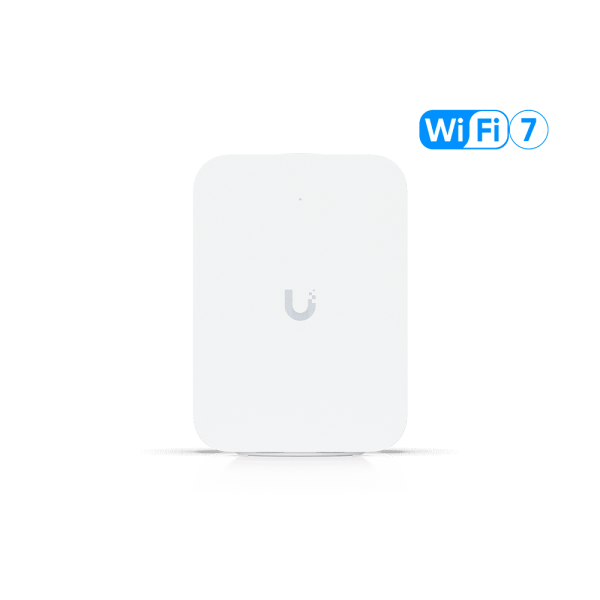

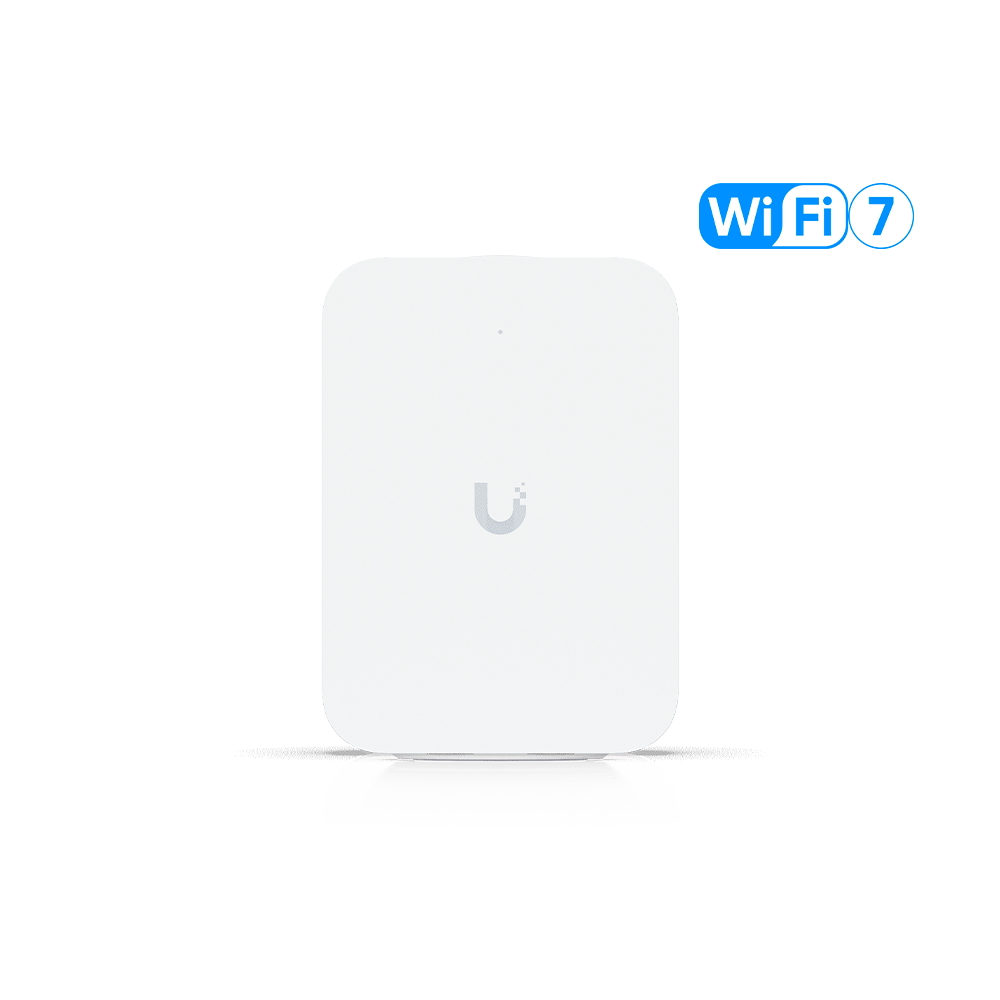

Ubiquiti UniFi WiFi 7 In-Wall Access Point (U7-IW)

The Ubiquiti UniFi 7 In-Wall is a high-performance WiFi 7 in-wall access point, designed to deliver ultra-fast, low-latency wireless connectivity with seamless UniFi integration. Featuring dual-band MU-MIMO, OFDMA, and wired passthrough ports, it ensures optimal coverage and efficiency for modern smart homes, offices, and hospitality environments. Its sleek in-wall design allows for discreet deployment while providing powerful networking capabilities and advanced security features.

U7-IW

With 2.5GbE uplink support and wired passthrough ports, the U7-IW enables high-speed wired and wireless connections, making it ideal for bandwidth-intensive applications like 4K/8K streaming, video conferencing, and IoT deployments. The in-wall form factor ensures discreet, space-saving installation, while advanced security protocols and UniFi network management offer centralized control, VLAN support, and seamless roaming for a superior user experience.

U7-IW2

SKU: 99022 Category:

Overview

  • Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2″)
  • WiFi Standard:  WiFi 7
  • Spatial Streams:  4
  • Coverage Area: 115 m² (1,250 ft²)
  • Max. Client Count:  200+
  • Uplink:  2.5 GbE
  • Mounting Locations:  Wall
  • Mounting Plate:  Metal wall mount (Included)
  • Power Method: PoE,  PoE+ (Required for PoE output)

Performance

  •  MIMO
      5 GHz 2 x 2 (DL/UL MU-MIMO)
      2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  •  Max. Data Rate
      5 GHz 4.3 Gbps (BW240)
      2.4 GHz 688 Mbps (BW40)
  •  Antenna Gain
      5 GHz 8 dBi
      2.4 GHz 4 dBi
  •  Max. TX Power
      5 GHz 24 dBm
      2.4 GHz 23 dBm
  •  Max. BSSIDs 8 per Radio
  •  Supported Data Rates
      802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
      802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
      802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
      802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Features

  •  Wireless Meshing:  Yes
  •  Band Steering:  Yes
  •  802.11v BSS Transition Management:  Yes
  •  802.11r Fast Roaming:  Yes
  •  802.11k Radio Resource Management (RRM):  Yes
  •  Advanced Radio Management:  Yes
  •  Passpoint (Hotspot 2.0):  Yes
  •  Captive Hotspot Portal
      Custom Branding Landing Page: Yes
      Voucher Authentication: Yes
      Payment-Based Authentication: Yes
      External Portal Server Support: Yes
      Password Authentication: Yes
      Guest Network Isolation: Yes
  •  Private Pre-Shared Key (PPSK):  Yes
  •  WiFi Speed Limiting:  Yes
  •  Client Device Isolation:  Yes
  •  WiFi Schedules:  Yes
  •  RADIUS over TLS (RadSec):  Yes
  •  Dynamic RADIUS-assigned VLAN:  Yes

Hardware

    • Max. Power Consumption:  13W (Excluding PoE output)
    • Supported Voltage Range:  42.5—57V DC
    • Networking Interface:  (3) 2.5 GbE RJ45 ports
    • Weight : 400 g (14.1 oz)
    • Management:  Ethernet
    • Built-In Switch:  (1) PoE+ input and (1) PoE output
    • Enclosure Material:  Polycarbonate, aluminum alloy
    • Mount Material:  Aluminum alloy
    • LEDs
        System White/Blue
    • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
    • Certifications: CE, FCC, IC
    • Ambient Operating Temperature:  -30 to 40° C (-22 to 104° F)
    • Ambient Operating Humidity:  5 to 95% noncondensing

Software

  • Application Requirements
      UniFi Network :Version 9.0.114 and later
      UniFi OS: iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
