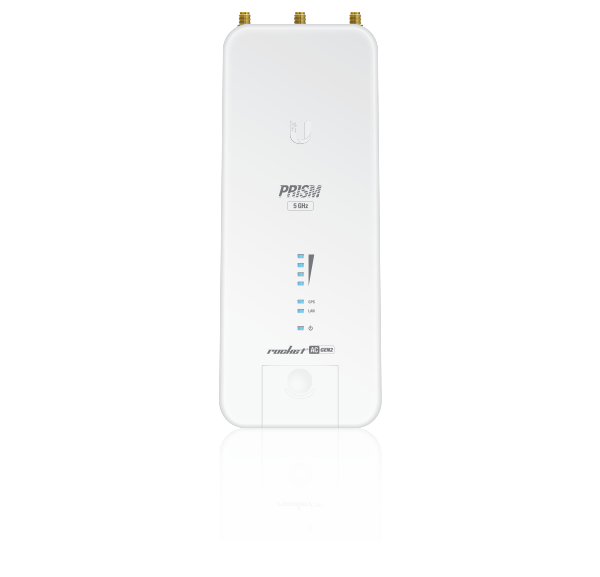

Ubiquiti RocketPRISM 5AC Gen2 (RP-5AC-GEN2)

  • 5 GHz Wide Band Operating Frequency
  • Custom Ubiquiti airMAX ac Processor
  • Dedicated WiFi Radio for Management

Ubiquiti airMAX Rocket Prism ac Radio BaseStation Gen 2 (RP-5AC-GEN2)

The Ubiquiti airMAX Rocket Prism 5AC Gen 2 is a 5 GHz base station with active AF filtering technology. This radio features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas. Pair the Rocket Prism 5AC Gen 2 with airMAX ac antennas for optimal performance.

Ubiquiti Rocket Prism 5AC Gen 2 Key Features

  • 5 GHz Wide Band Operating Frequency
  • Custom Ubiquiti airMAX ac Processor
  • Dedicated WiFi Radio for Management
  • Throughput 500+ Mbps (Max. 80 MHz)
  • Ports (1) 10/100/1000 Ethernet Port
  • airPrism Technology
Full-Band 5 GHz Coverage
You can deploy the Rocket Prism 5AC Gen 2 anywhere in the world; the Rocket Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.Management Wi-Fi Radio
The Rocket Prism 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

GPS Synchronisation
The Rocket Prism 5AC Gen 2 supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughput than competing solutions.

Revolutionary Filtering Technology
Ubiquiti’s airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

Kodi i produktit : 9043 Kategori: ,

General

  • Dimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06″)
  • Weight 400 g (14.11 oz)
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • RF Connectors: (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof )
  • LEDs: (4) Signal Strength, GPS*, Power, LAN
  • Enclosure: Die-Cast Aluminium with White Powder Coating
  • Max. Power Consumption: 9.5W
  • Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Processor Specs: Atheros MIPS 74Kc
  • Memory: 128 MB DDR2 SDRAM
  • Supported Voltage Range: 18-26VDC
  • Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
  • Channel Sizes:
    – PtP Mode: 10/20/30/40/50/60/80 MHz
    – PtMP Mode: 10/20/30/40 MHz
  • ESD/EMP Protection: ± 24 kV Contact / Air for Ethernet
  • Operating Temperature: -40 to 80° C (-40 to 176° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • RoHS Compliance: Yes
  • Shock and Vibration: ETSI300-019-1.4
  • Modes: Access Point, Station
  • Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
  • Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
  • Distance Adjustment: Dynamic Ack and Ackless Mode
  • Power Adjustment: Software Adjustable UI or CLI
  • Security: WPA2 AES Only
  • QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
  • Statistical Reporting: Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
  • Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter
  • Ubiquiti Specific Features: 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
  • Certifications: CE, FCC, IC
    * GPS sync support available in airOS firmware v8.3.0 and newer
