Name: UniFi Cloud Gateway Ultra UCG-Ultra – Gateway
Brand: Unifi
SKU: 9946
Availability: InStock

UniFi Cloud Gateway Ultra UCG-Ultra – Gateway

112.64 €

UCG-Ultra
Unifi

Koha e arritjes së produktit : Kor 3, 2026 - Kor 6, 2026

Specification	Details
Model	UniFi Cloud Gateway Ultra
Model Code	UCG-Ultra
Device Type	UniFi Gateway / Network Controller
Dimensions	141.8 × 127.6 × 30 mm
Form Factor	Compact Desktop
Managed UniFi Devices	30+
Simultaneous Users	300+
UniFi Application	Network
WAN Port	1 × 2.5GbE RJ45
Max WAN Port Count	4
LAN Ports	4 × GbE RJ45
Total Ports	5 RJ45 Ports
IDS / IPS Throughput	1 Gbps
Firewall	Stateful Firewall, Layer 7 Firewall
Security Features	DPI, IPS/IDS, Content Filtering, Ad Blocking
IDS/IPS Signatures	55,000+ with CyberSecure
VLAN Segmentation	Yes
VPN Support	Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport
Multi-WAN Load Balancing	Yes
Dynamic Routing	OSPF
RADIUS	Integrated RADIUS, RadSec
Advanced NAT	SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT
MAC Address Table	2,000
Max Power Consumption	6.2W
Power Method	USB-C 5V DC / 3A
Power Supply	USB-C Adapter included
Processor	Quad-core ARM Cortex-A53, 1.5GHz
System Memory	3GB
On-board Storage	16GB
LCM Display	0.96" Status Display
Management	Ethernet, Bluetooth
Weight	520 g
Enclosure Material	Polycarbonate
Operating Temperature	-10°C to 40°C
Operating Humidity	5% to 95% non-condensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel, SRRC
Mobile App Requirement	UniFi iOS 10.12.0+ / Android 10.11.2+

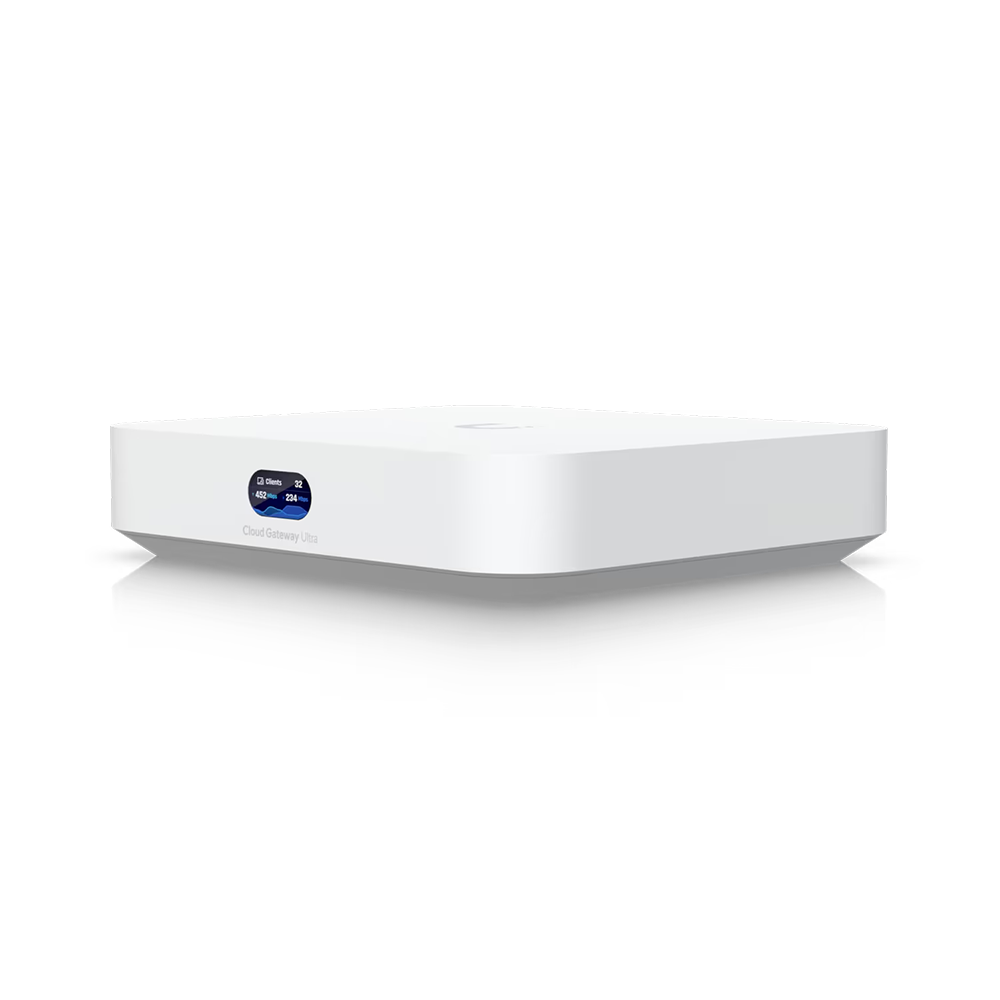

UniFi Cloud Gateway Ultra UCG-Ultra – Gateway - Figura 1

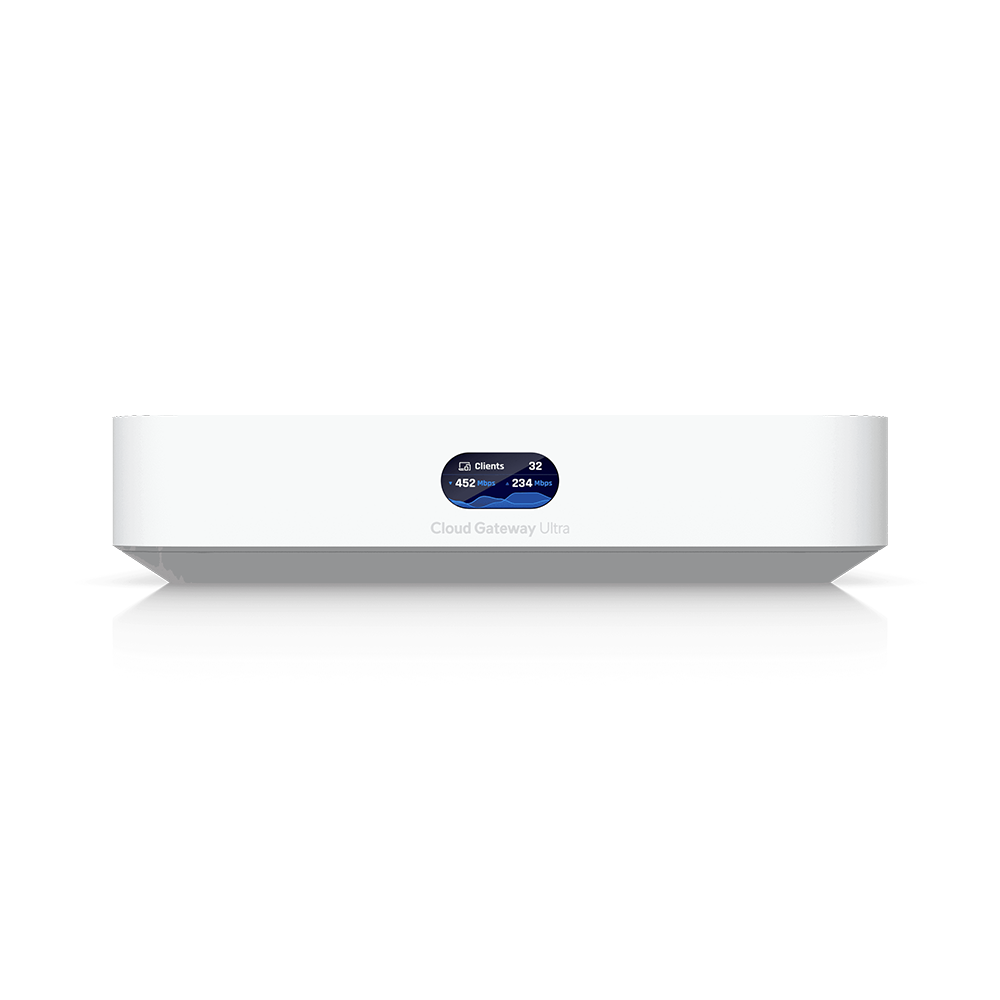

UniFi Cloud Gateway Ultra UCG-Ultra – Gateway - Figura 2

Click to enlarge

UniFi Cloud Gateway Ultra UCG-Ultra – Gateway

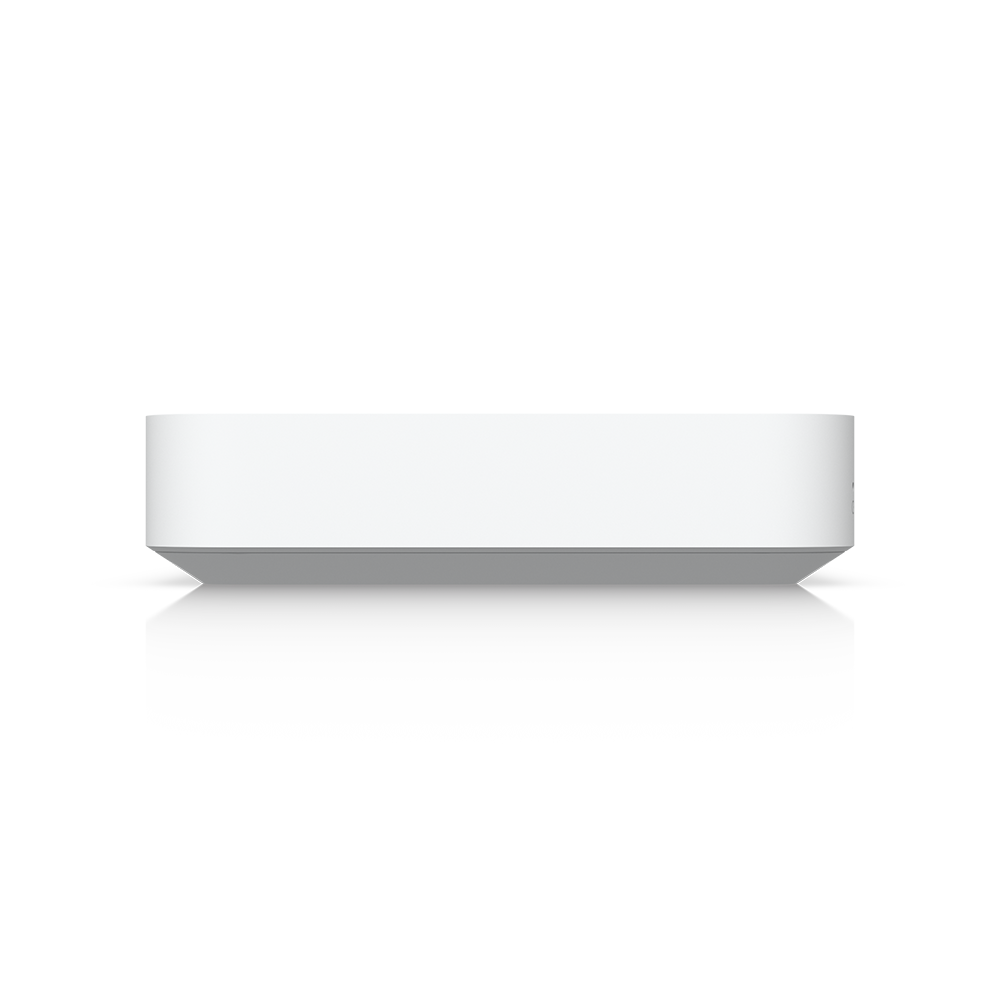

UniFi Cloud Gateway Ultra UCG-Ultra – Gateway - Figura 3

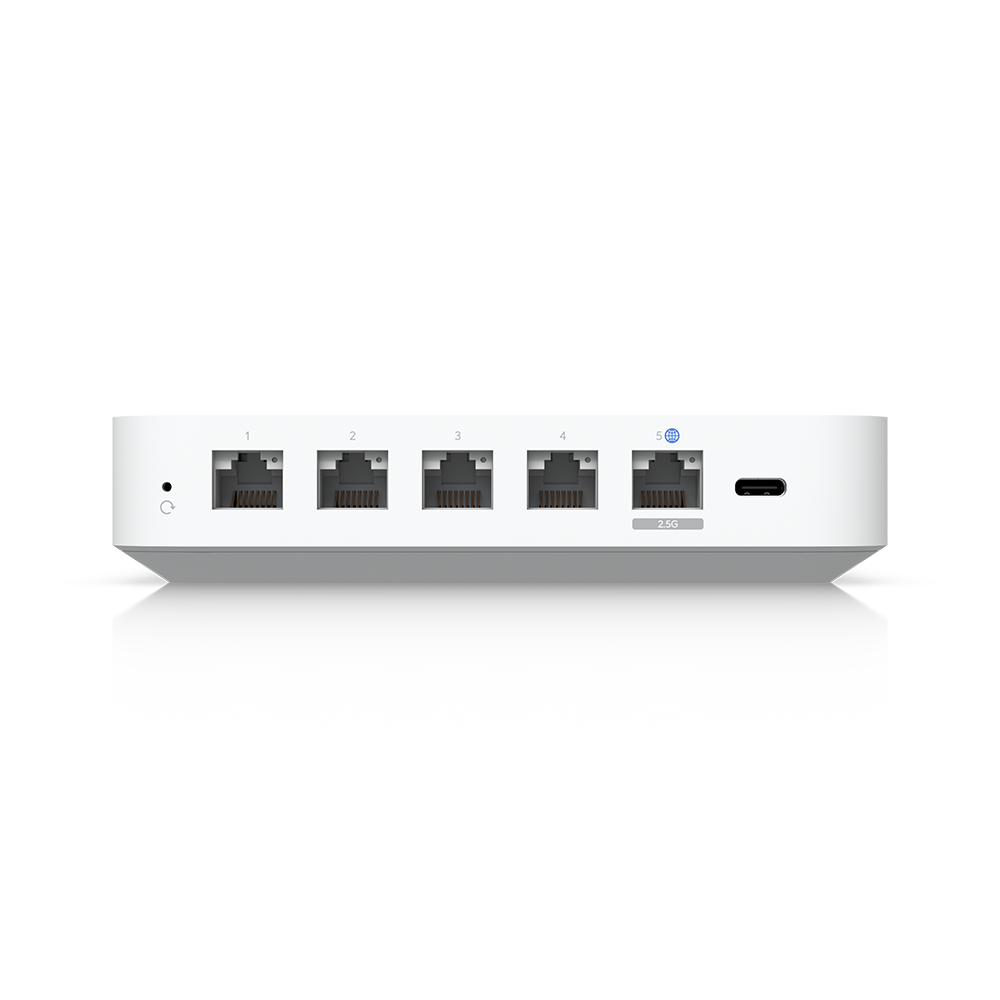

UniFi Cloud Gateway Ultra UCG-Ultra – Gateway - Figura 4

Kodi i produktit : 9946 Kategori: CloudKeys & Gateways - Unifi, UniFi Etiketa: FO, G, GM Brand: Unifi

Përshkrim

UniFi Cloud Gateway Ultra UCG-Ultra është gateway kompakt për menaxhim të rrjetit, me 2.5GbE WAN, 4 porte LAN, IDS/IPS 1Gbps, VPN, firewall, VLAN dhe mbështetje për 30+ pajisje UniFi. I përshtatshëm për shtëpi, zyra dhe biznese të vogla/mesme.

Specification

Specification	Details
Model	UniFi Cloud Gateway Ultra
Model Code	UCG-Ultra
Device Type	UniFi Gateway / Network Controller
Dimensions	141.8 × 127.6 × 30 mm
Form Factor	Compact Desktop
Managed UniFi Devices	30+
Simultaneous Users	300+
UniFi Application	Network
WAN Port	1 × 2.5GbE RJ45
Max WAN Port Count	4
LAN Ports	4 × GbE RJ45
Total Ports	5 RJ45 Ports
IDS / IPS Throughput	1 Gbps
Firewall	Stateful Firewall, Layer 7 Firewall
Security Features	DPI, IPS/IDS, Content Filtering, Ad Blocking
IDS/IPS Signatures	55,000+ with CyberSecure
VLAN Segmentation	Yes
VPN Support	Site Magic, IPsec, OpenVPN, WireGuard, L2TP, Teleport
Multi-WAN Load Balancing	Yes
Dynamic Routing	OSPF
RADIUS	Integrated RADIUS, RadSec
Advanced NAT	SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT
MAC Address Table	2,000
Max Power Consumption	6.2W
Power Method	USB-C 5V DC / 3A
Power Supply	USB-C Adapter included
Processor	Quad-core ARM Cortex-A53, 1.5GHz
System Memory	3GB
On-board Storage	16GB
LCM Display	0.96" Status Display
Management	Ethernet, Bluetooth
Weight	520 g
Enclosure Material	Polycarbonate
Operating Temperature	-10°C to 40°C
Operating Humidity	5% to 95% non-condensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Anatel, SRRC
Mobile App Requirement	UniFi iOS 10.12.0+ / Android 10.11.2+

In The Box
