Wirkos LAN CABLE UTP Cat-6 4Pair/0.55 Cu,


160.80

Cat 6 CU (Copper) cable is an advanced Ethernet cable designed for robust network installations in both residential and commercial environments. Meeting Category 6 standards, it delivers superior performance and reliability for high-speed data transmission, accommodating applications like internet browsing, video streaming, VoIP, and large file transfers with efficiency.

The cable utilizes pure copper conductors, which ensure excellent conductivity and durability, making it ideal for environments where uninterrupted network connectivity is crucial. Compared to copper-clad aluminum (CCA) cables, Cat 6 CU offers enhanced signal integrity and longevity, especially over longer distances.

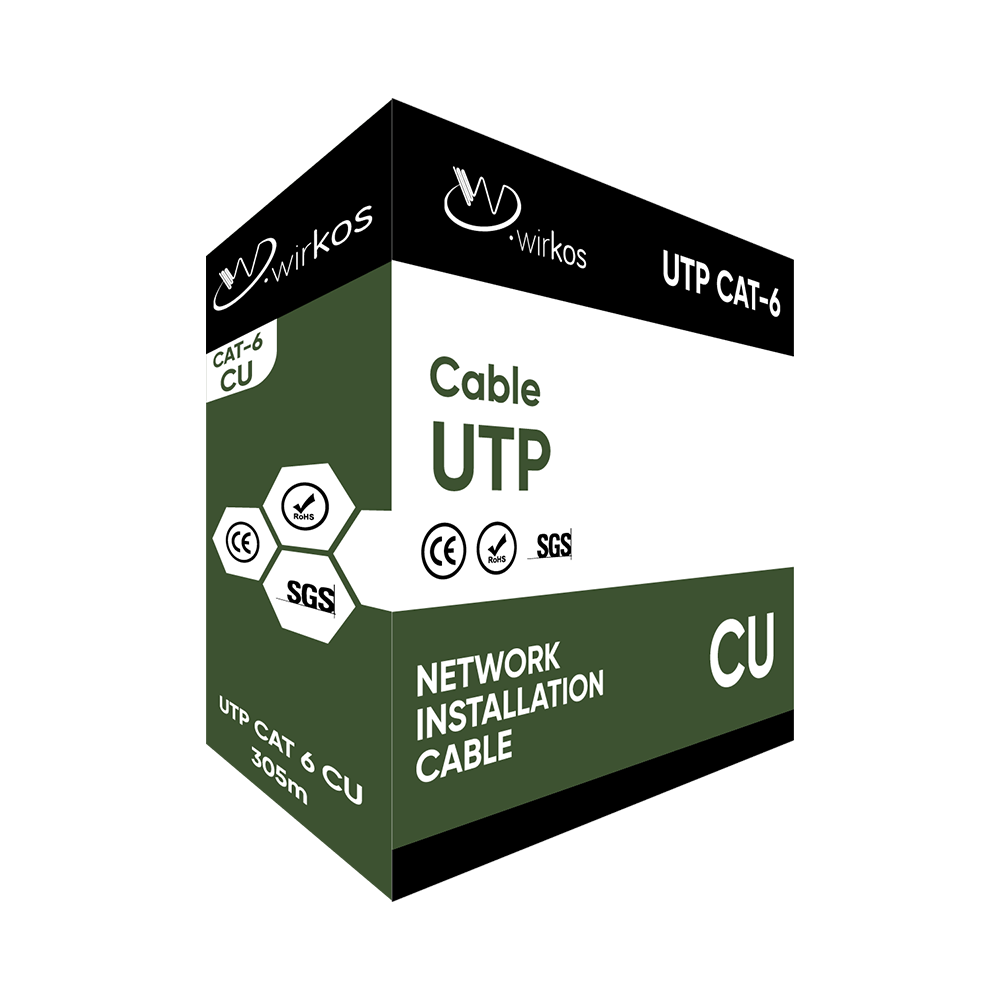

Available in convenient 305-meter (1,000 feet) boxes, Cat 6 CU cables provide ample length for extensive installations, promoting ease of handling and reducing installation time and costs. This makes it a preferred choice for demanding network infrastructures where performance, reliability, and longevity are essential considerations.

SKU: 3286 Category:

DESCRIPTION
Rated temperature:70℃
Reference standard:UL Subject 444, EIA/TIA 568B.2-10
& ISO/IEC 11801, IEC 61156

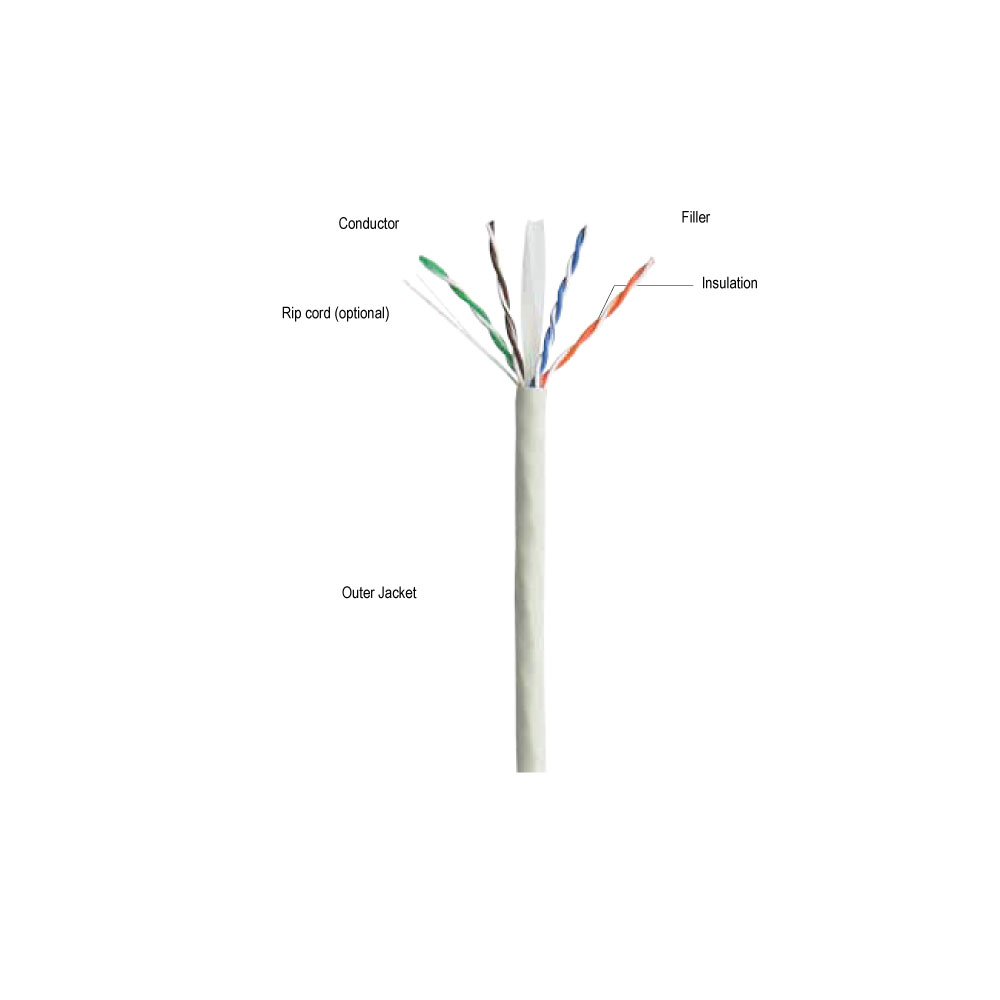

Solid bare copper conductor
Colour-coded PE insulation
Rip cord (optional)
PVC or LSZH jacket
Packaging: Reel,Reel in Box
APPLICATION
100 Base-T4
100Base-TX
100VG-AnyLAN
1000Base-T
1000Base-TX
155Mbps ATM
622Mbps ATM
Construction
UTP
Number of Pairs
?? Pair
AWG
??AWG
Conductor Dimension (mm)
0.555±0.005mm
Insulation material
HDPE
Operating Temp. Range
-20~70℃
