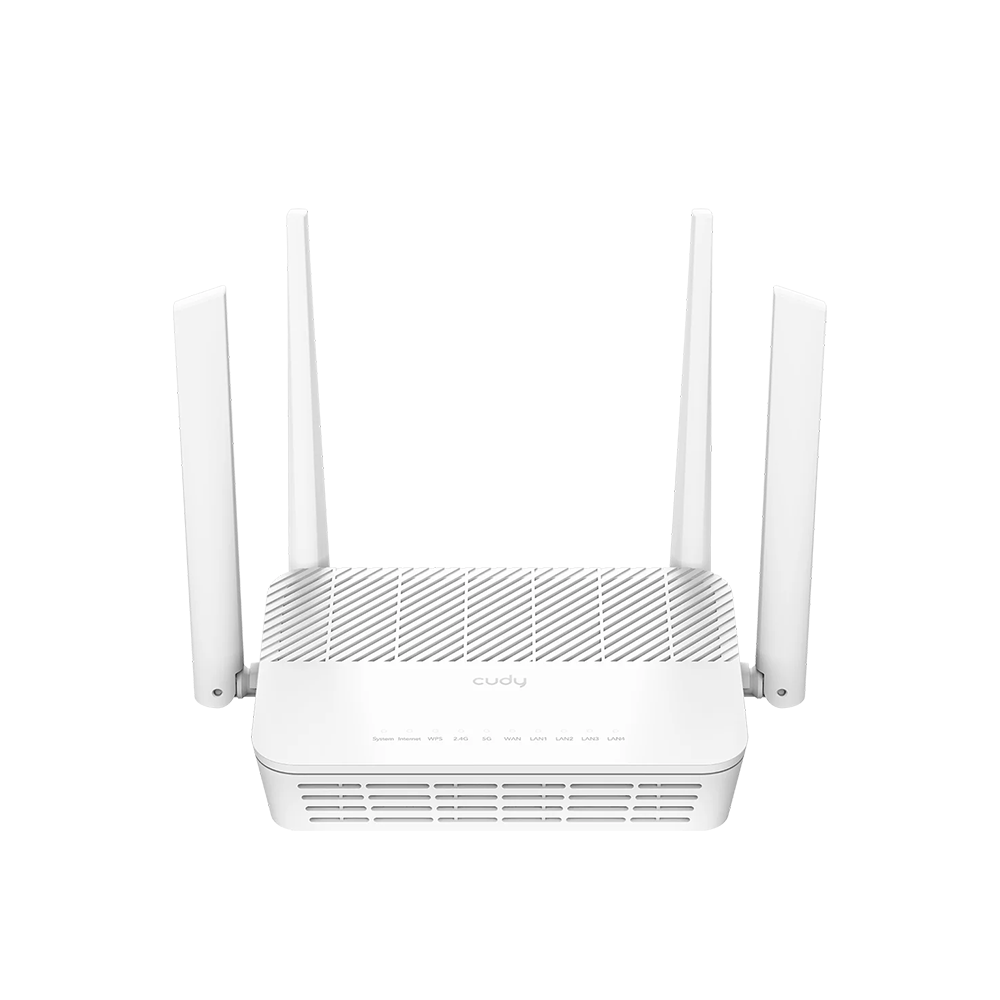

AX3000 Gigabit Mesh Wi-Fi 6 Router White WR3000S

AX3000 Gigabit Mesh Wi-Fi 6 Router White WR3000S

Name: AX3000 Gigabit Mesh Wi-Fi 6 Router White WR3000S
Brand: Cudy
SKU: 970593
Availability: InStock

55.95 €

WR3000S

Koha e arritjes së produktit : Gus 28, 2026 - Gus 31, 2026

Kodi i produktit : 970593 Kategori: Cudy, Wireless Routers - CUDY Brand: Cudy

Përshkrim

Router Wi-Fi 6 me performancë të lartë për ambiente shtëpiake dhe profesionale, i pajisur me procesor Dual-Core ARM Cortex-A53, mbështetje Dual-Band Wi-Fi 6 me shpejtësi deri në 2402 Mbps në 5GHz dhe 574 Mbps në 2.4GHz. Ofron mbulim të zgjeruar wireless, teknologji Beamforming, 5 porta Gigabit Ethernet dhe instalim fleksibil në tavolinë ose mur. I përshtatshëm për lidhje të shpejta interneti, transmetim video 4K, gaming dhe rrjete me shumë pajisje

Hardware Specification

Parameter	Specification
Model Version	WR3000S 1.0
CPU	1.3 GHz Dual-Core ARM Cortex-A53
Flash / ROM	128 MB (1 Gbit) NAND
DDR / RAM	256 MB (2 Gbit) DDR3
Wireless Standard	Wi-Fi 6
5 GHz Wi-Fi Speed	2402 Mbps
2.4 GHz Wi-Fi Speed	574 Mbps
5 GHz Wi-Fi Streams	2 Spatial Streams with 3T3R
2.4 GHz Wi-Fi Streams	2 Spatial Streams
Wi-Fi Antennas	4 × Fixed Antennas
Antenna Configuration	5 GHz: 3 × Internal 2.4 GHz: 2 × Internal
Beamforming	Supported
Maximum Wireless Range	Up to 220 m (Open-space environment)
Wall Performance	Two wooden walls (<10 cm) One concrete wall (<20 cm) or two concrete walls (<10 cm)

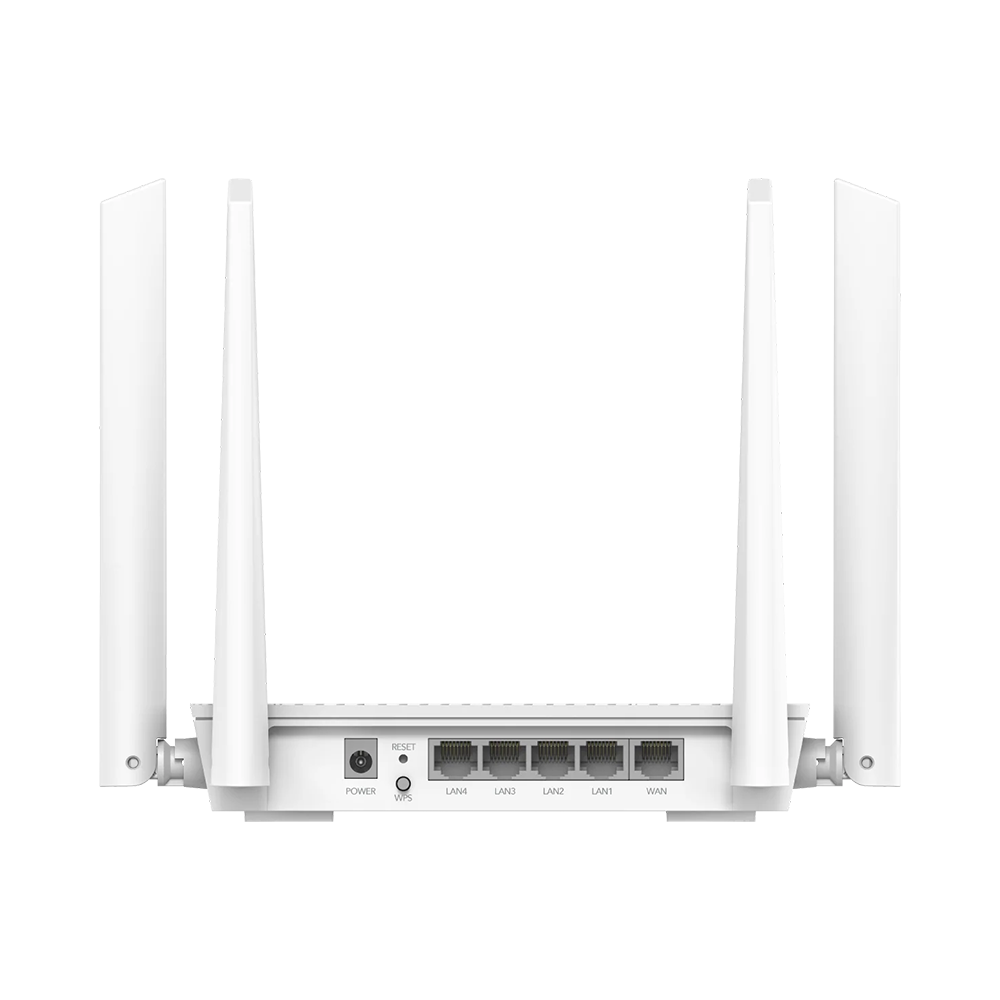

Gigabit RJ45 Ports	5 × Gigabit Ethernet Ports
Ethernet Configuration	1 × WAN Port, remaining ports LAN
LED Indicators	System, Internet, WPS, 2.4GHz Wi-Fi, 5GHz Wi-Fi, WAN, LAN
Physical Buttons	WPS Button, Reset Button
Power Input Type	DC Jack
Power Input	12V ⎓ 1A
Power Adapter	Input: 100-240V~, 50/60Hz Output: 12V ⎓ 1A
Maximum Power Consumption	11.5W
Idle Power Consumption	4.2W
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% (Non-condensing)
Storage Humidity	5% ~ 95% (Non-condensing)
Certifications	FCC, CE
Installation	Desktop / Wall-mount
Main Device Dimension	173 × 123.8 × 33 mm
Antenna Length	171 mm
Product Weight	329.4 g

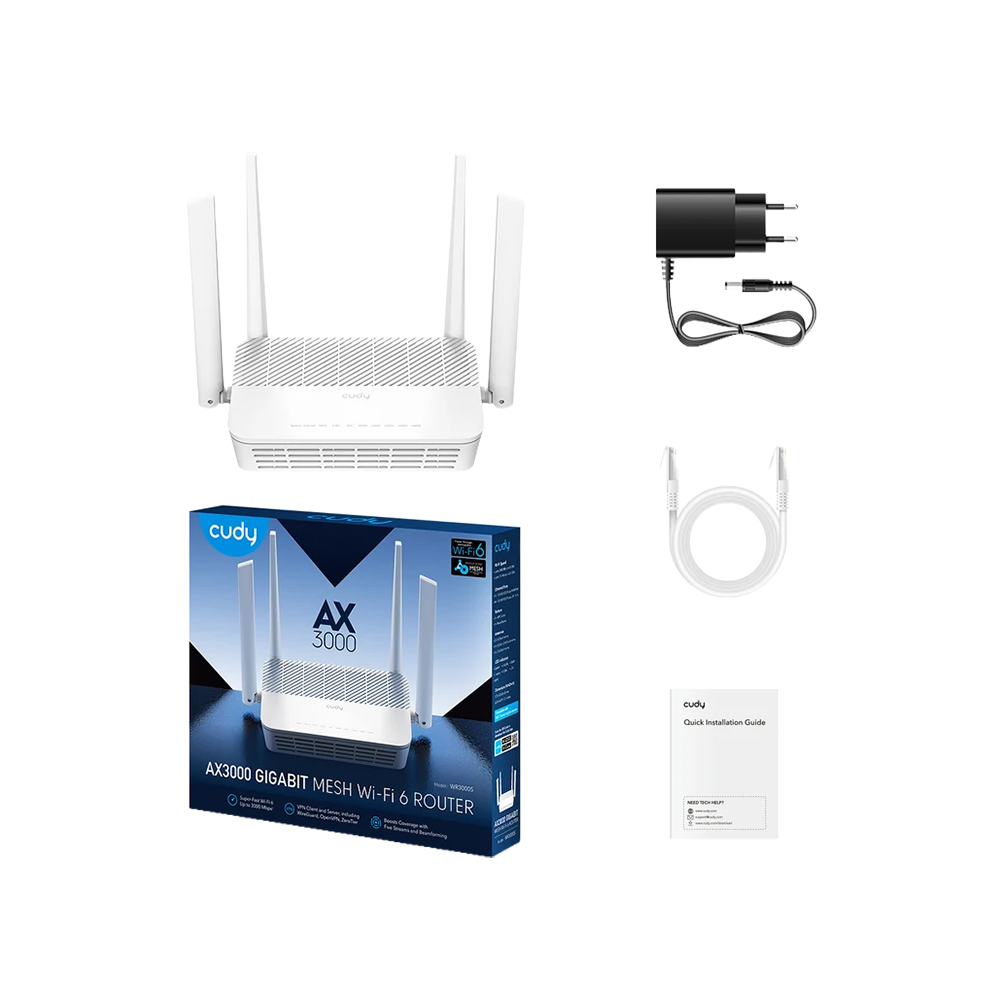

Package Contents	WR3000S, Power Adapter, Ethernet Cable, Installation Guide
Retail Package Weight (EU/US)	725 g
Retail Package Weight (ZH)	711.6 g
Retail Package Dimension	304 × 268 × 54 mm
Units per Carton	20 PCS
Carton Dimension	55.6 × 55.5 × 32.5 cm
Carton Gross Weight (EU/US)	15.8 kg
Carton Gross Weight (ZH)	15.4 kg
Carton Net Weight (EU/US)	14.5 kg
Carton Net Weight (ZH)	14.2 kg
Power Output	4.2W

Software Specification

Parameter	Specification
Model Version	WR3000S 1.0
Wireless Standard	Wi-Fi 6
Maximum Wi-Fi Modulation	1024-QAM
Wi-Fi Technologies	OFDMA, MU-MIMO, BSS Color
Maximum Client Capacity	512 Clients
Recommended Client Limit	200 Clients
Wi-Fi Channel Width	Auto / 20 / 40 / 80 / 160 MHz
Wi-Fi Security	WPA / WPA2 / WPA3
Guest Network	2.4 GHz & 5 GHz
WPS	Supported
Operation Modes	Wi-Fi Router, Access Point, Range Extender, WISP, Client
Mesh Technology	Cudy Mesh
Mesh Backhaul	Wireless Backhaul / Wired Backhaul
Multi-Band Backhaul	Supported
WAN Modes	DHCP, Static IP, PPPoE, PPTP, L2TP
QoS Features	Per-User Rate Limiting, Guest Network Rate Limiting
DHCP Features	DHCP Server, DHCP Client List, Address Reservation
IP Version	IPv4 / IPv6
IPv6 Support	Relay, Dynamic SLAAC/DHCPv6, Static IP, Passthrough, 464XLAT, MAP-E, DS-Lite
Multicast	Supported
IPTV / VLAN	Bridge VLAN, Tag VLAN, VoIP VLAN, IPTV VLAN
TTL Customization	Extend, Spoof, Custom
IGMP Support	IGMP Proxy, IGMP Snooping
Forwarding Features	Port Forwarding, Port Triggering, UPnP, DMZ
Firewall	SPI Firewall, DoS Protection, Block PING
Application Layer Gateway	IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough
VPN Server	WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Client	WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Performance - OpenVPN Client	Upload: 90 Mbps / Download: 120 Mbps
VPN Performance - OpenVPN Server	Upload: 180 Mbps / Download: 160 Mbps
VPN Performance - WireGuard Client	Upload: 224 Mbps / Download: 230 Mbps
VPN Performance - WireGuard Server	Upload: 360 Mbps / Download: 314 Mbps
DNS Features	DNS over TLS, Manual DNS, Rebind Protection, DNS Override
DNS over TLS Providers	Cloudflare, Google, Quad9, Custom
Captive Portal	Supported
Wake on LAN	Supported
Online Detection	Supported
Parental Controls	Profiles, Offline Time, Online Time, Internet Pause, Web Filter
Device Management	Wi-Fi Schedule, MAC Filter, IP/MAC Binding
Per Device Control	Internet On/Off, VPN On/Off, Online Schedule, Device Rename
Content Filtering	Domain Filter, IP Filter
LED Control	Supported
Local Management	Web Configuration Page, App Control
Remote Management	HTTPS Config Page, App Control, TR069/TR098/TR111/TR143/TR181
Firmware Upgrade	Local Update, OTA App Update, Online Update
Reliability Features	Timed Reboot, Backup & Restore
Diagnostic Tools	Diagnosis, Ping, Traceroute, NSLookup, System Log
Supported Languages	English, German, French, Spanish, Italian, Turkish, Chinese and others
Dashboard Monitoring	Internet Status, Mesh Status, Device Management, WAN/LAN Status, Wi-Fi Status, VPN Status, DHCP Status, System Version
Charts & Statistics	Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
