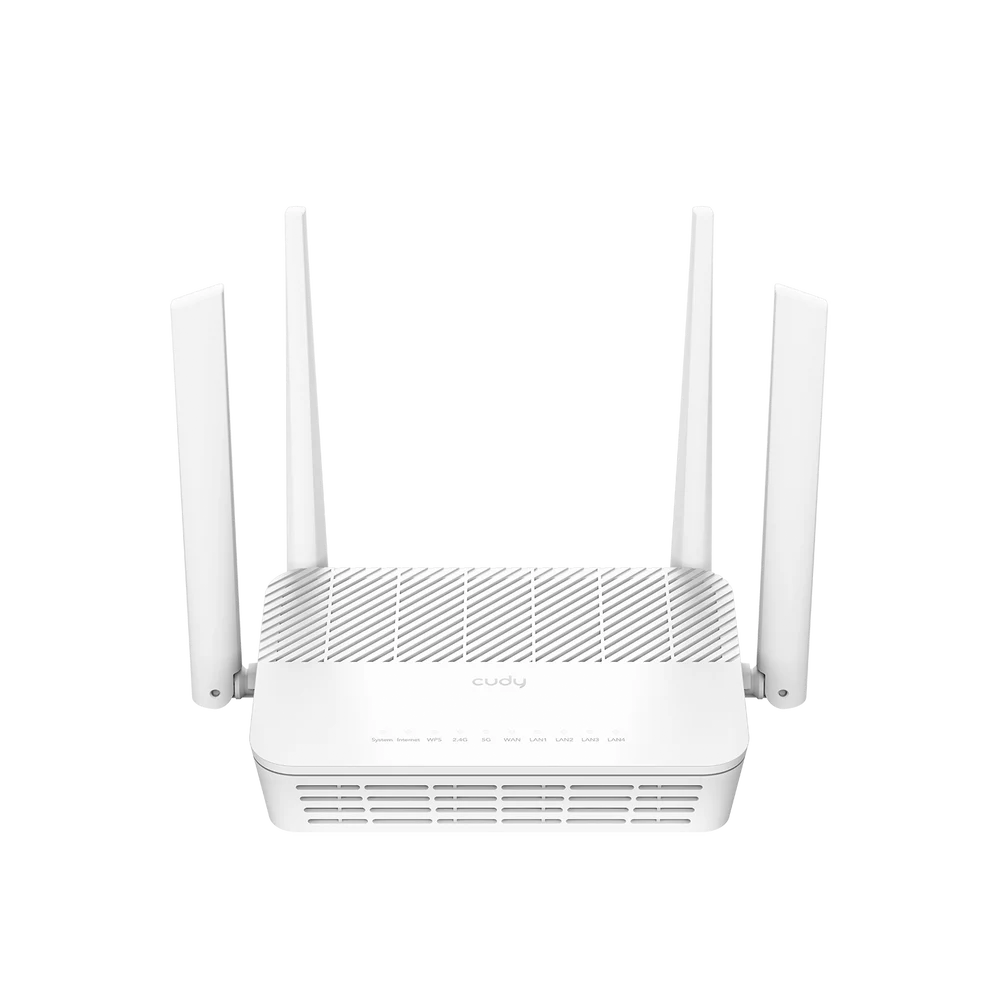

AX3000 2.5G Mesh Wi-Fi 6 Router WR3000H

Name: AX3000 2.5G Mesh Wi-Fi 6 Router WR3000H
Brand: Cudy
SKU: 970594
Availability: InStock

63.92 €

WR3000H

Koha e arritjes së produktit : Gus 27, 2026 - Gus 28, 2026

Kodi i produktit : 970594 Kategori: Cudy, Wireless Routers - CUDY Brand: Cudy

Përshkrim

WR3000H 1.0 është një router me performancë të lartë Wi-Fi 6, i pajisur me CPU ARM Cortex-A53 Dual-Core 1.3 GHz, 256 MB DDR3 RAM, dhe mbështetje për shpejtësi wireless deri në 3000 Mbps. Pajisja ofron 2.5G Ethernet port, teknologji Beamforming, mbulim të zgjeruar deri në 220 m në hapësirë të hapur, si dhe opsione fleksibile instalimi për ambiente shtëpiake dhe profesionale.

Hardware Specification

Specification	Details
Model Version	WR3000H 1.0
CPU	1.3 GHz Dual-Core ARM Cortex-A53
Memory / Storage	128 MB (1 Gbit) NAND Flash ROM
DDR / RAM	256 MB (2 Gbit) DDR3
Wireless Technology	Wi-Fi 6
5 GHz Wi-Fi Speed	2402 Mbps
2.4 GHz Wi-Fi Speed	574 Mbps
5 GHz Wi-Fi Streams	2 Spatial Streams with 3T3R
2.4 GHz Wi-Fi Streams	2 Spatial Streams
Wi-Fi Antennas	4× Fixed Internal Antennas
Antenna Configuration	5 GHz: 3× Internal / 2.4 GHz: 2× Internal
Beamforming	Supported
Range Performance	Up to 220 m (722 ft) in open-space environments with minimal interference. Actual coverage depends on building structure, wall materials and environmental conditions.
Wall Performance	Supports two wooden walls (<10 cm thickness), one concrete wall (<20 cm thickness), or two concrete walls (<10 cm thickness)

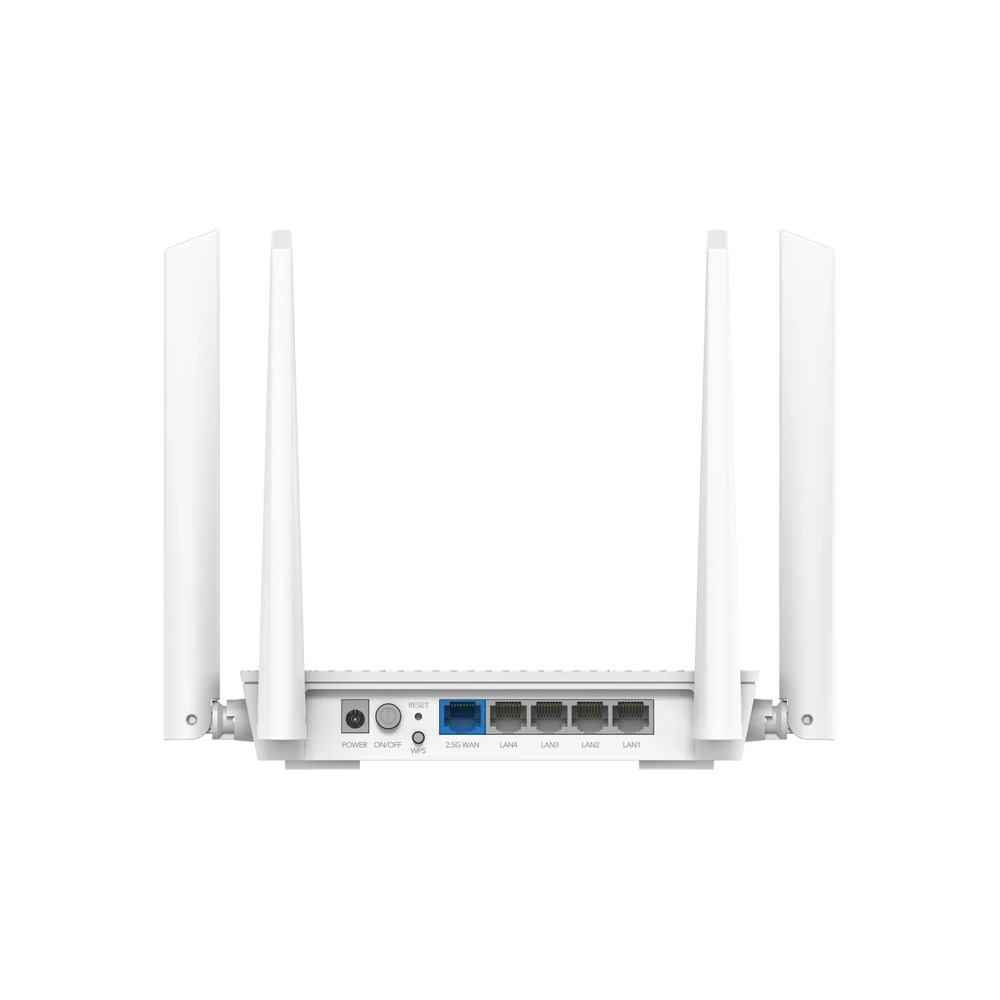

WAN Interface	1× 2.5G RJ45 Port
LAN Interfaces	4× Gigabit RJ45 Ports
Ethernet Configuration	2.5G port used as WAN; Gigabit ports used as LAN
LED Indicators	System, Internet, WPS, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WAN, LAN
Physical Buttons	Power On/Off Button, WPS Button, Reset Button
Power Input Type	DC Jack
Power Input	12V ⎓ 1.5A
Power Adapter Included	Input: 100-240V~, 50/60Hz / Output: 12V ⎓ 1.5A
Maximum Power Consumption	12W
Idle Power Consumption	4.5W
Operating Temperature	0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 95% non-condensing
Certifications	FCC, CE
Installation Method	Desktop / Wall Mount
Main Dimensions	173 × 123.8 × 33 mm (6.81 × 4.87 × 1.3 inches)
Antenna Length	171 mm (6.73 inches)
Product Weight	347.6 g (12.26 oz.)

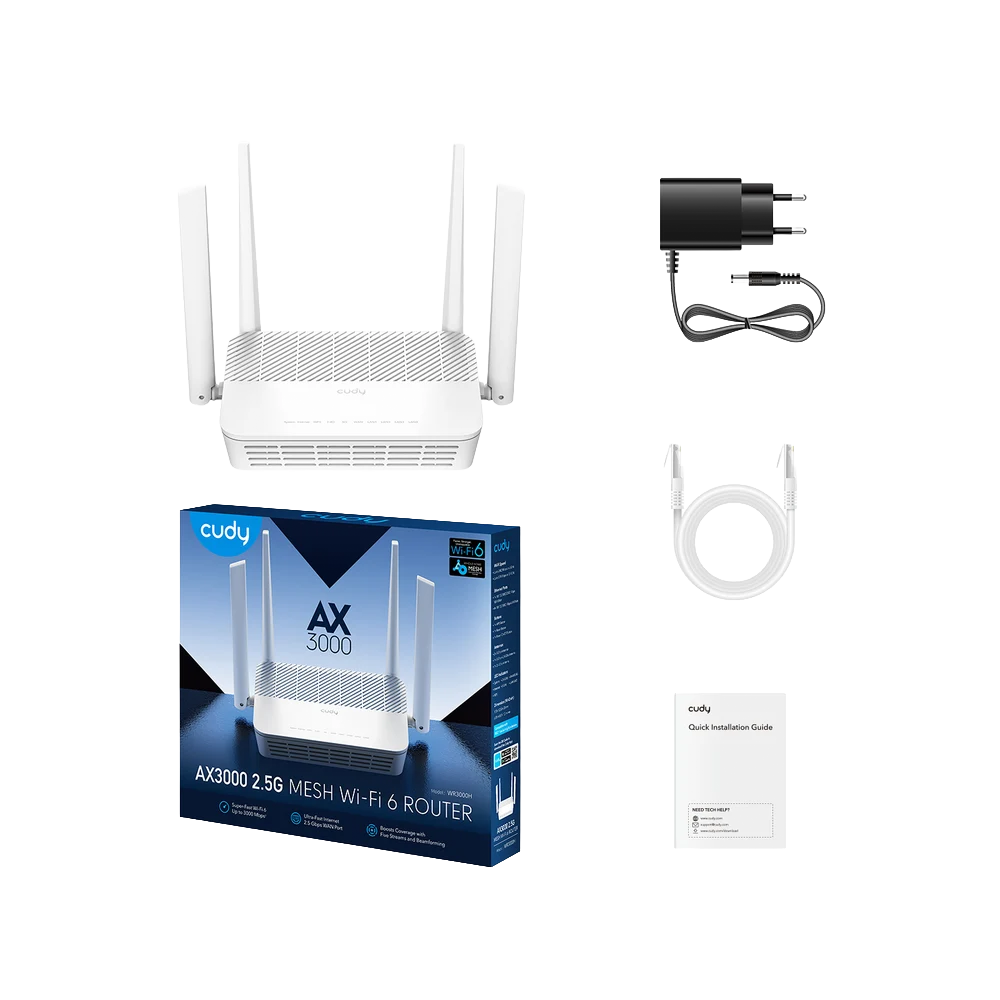

Package Content	WR3000H, Power Adapter, Ethernet Cable, Installation Guide
Retail Package Weight	EU: 787.5 g (27.78 oz.)
Retail Package Dimension	304 × 268 × 54 mm (11.97 × 10.55 × 2.13 inches)
Units per Carton	20 Units
Carton Dimension	55.6 × 55.5 × 32.5 cm (21.89 × 21.85 × 12.8 inches)
Carton Gross Weight	EU: 17.1 kg (37.7 lbs)
Carton Net Weight	EU: 15.8 kg (34.83 lbs)
Power Output	4.5W

Software Specification

Specification	Details
Model Version	WR3000H 1.0
Wireless Standard	Wi-Fi 6
Maximum Wi-Fi Modulation	1024-QAM
Wi-Fi Efficiency	OFDMA, MU-MIMO, BSS Color
Maximum Client Capacity	512
Recommended Client Upper Limit	200
Wi-Fi Channel Width	Auto / 20 / 40 / 80 / 160 MHz
Wi-Fi Security	WPA / WPA2 / WPA3
Guest Network	2.4 GHz, 5 GHz
WPS	Supported
Operation Modes	Wi-Fi Router, Access Point, Range Extender, WISP, Client
Mesh Technology	Cudy Mesh
Mesh Backhaul	Wireless Backhaul, Wired Backhaul
Multi-Band Backhaul	Supported
WAN Mode	DHCP, Static IP, PPPoE, PPTP, L2TP
QoS	Per-User Rate Limiting, Guest Network Rate Limiting
DHCP	Address Reservation, DHCP Client List, DHCP Server
IP Versions	IPv4 / IPv6
IPv6 Protocols	Relay, Dynamic (SLAAC/DHCPv6), Static IP, Passthrough, 464XLAT, MAP-E, DS-Lite
Multicast	Supported
IPTV/VLAN	Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN
TTL Customization	Extend, Spoof, Custom
IGMP	IGMP Proxy, IGMP Snooping
Forwarding	Port Forwarding, Port Triggering, UPnP, DMZ
Firewall	SPI Firewall, DoS Protection, Block PING
Application Layer Gateway	IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
VPN Server	WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Client	WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
OpenVPN Client Performance	UL/DL: 90 / 120 Mbps
OpenVPN Server Performance	UL/DL: 180 / 160 Mbps
WireGuard Client Performance	UL/DL: 224 / 230 Mbps
WireGuard Server Performance	UL/DL: 360 / 314 Mbps
DNS Options	DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS
DNS over TLS Providers	Cloudflare, Google, Quad9, Custom
Captive Portal	Supported
Wake on LAN	Supported
Online Detection	Supported
Parental Controls	Profiles Settings, Offline Time, Online Time, Pause Internet, Web Filter
Device Management	Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding
Per Device Management	Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
Content Management	Domain Filter, IP Filter
LED Control	Supported
Local Control Method	Config Web Page, App Control
Remote Control Method	HTTPS Config Page, App Control, TR069/TR098/TR111/TR143/TR181
Firmware Upgrade	Local Update, App OTA, Online Update
Reliability	Timed Reboot, Backup and Restore
Diagnostic Tools	Diagnosis, Ping, Traceroute, NSLookup, System Log
Languages	English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese
Dashboard Panel	Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
Charts	Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
