RB912UAG-5HPnD-OUT – BaseBox 5 (RouterBOARD 912UAG with 600Mhz Atheros CPU, 64MB RAM, 1xGigabit LAN, USB, miniPCIe, built-in5Ghz 802.11a/n 2×2 two chain wireless with two RP-SMA connectors, RouterOS L4, outdoor enclosure, POE, PSU,pole mount, rail mount)

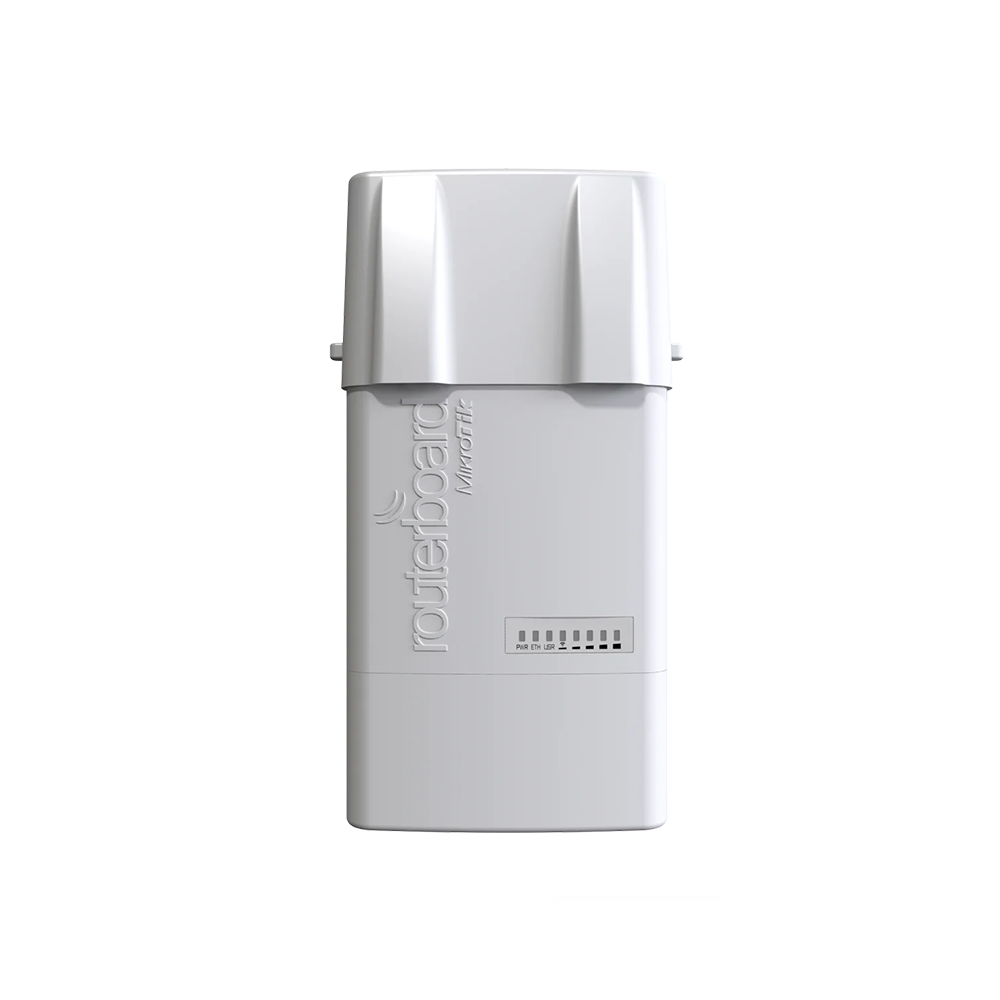

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
| Details | |
|---|---|
| Product code | RB912UAG-5HPnD-OUT |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| Architecture | MIPS-BE |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI-e slots | 1 |
| Wireless chip model | AR9342 |
| Wireless standards | 802.11a/n |
| Number of USB ports | 1 |
| Supported input voltage | 8 V – 30 V |
| PoE in | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 246x135x50mm |
| Operating System | RouterOS |
| Tested ambient temperature | -30C to +60C |
| License level | 4 |
| CPU | AR9342 |
| Max Power consumption | 14W at 24v |
| USB slot type | USB type A |
| Number of chains | 2 |
| Storage type | NAND |
| Storage size | 64 MB |
