RB493AH

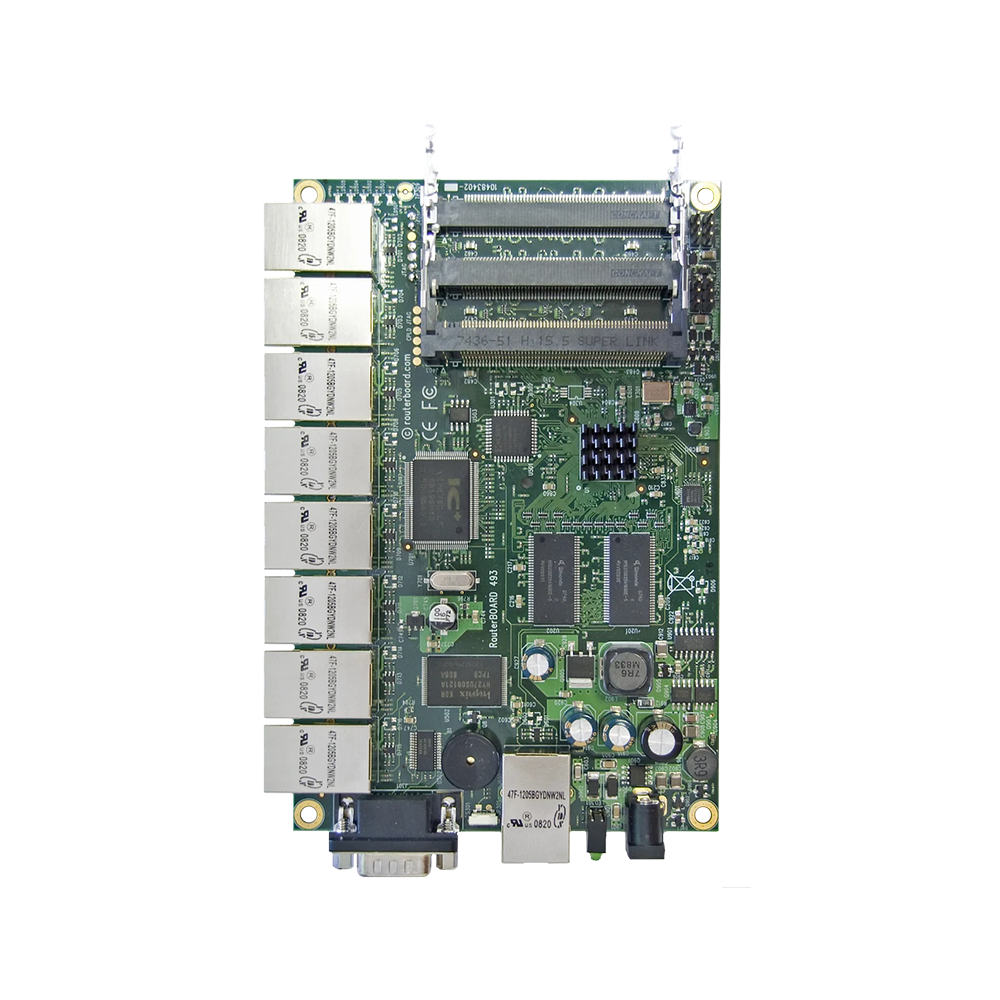

RouterBOARD 493 with 680MHz Atheros CPU, 128MB RAM, 9 LAN, 3 miniPCI, RouterOS L5

The RB493 has nine ethernet ports and three miniPCI slots, it also has a switch chip, so the ethernet ports 2-9 can be grouped together to make it act as a switch.

RB493 includes RouterOS – the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

The RB493AH model includes the higher speed Atheros 680MHz CPU, more memory, and a Level5 license for more simultaneous tunnel interfaces and hotspot users.

Product specifications

Details
Product code RB493AH
10/100 Ethernet ports 9
Architecture MIPS-BE
CPU AR7161
CPU core count 1
CPU nominal frequency 680 MHz
License level 5
MiniPCI slots 3
Operating System RouterOS
PoE in Yes
Power Jack 1
Serial port RS232
Size of RAM 128 MB
Storage size 64 MB
Storage type NAND
Supported input voltage 8 V – 28 V
Tested ambient temperature -40°C .. +70°C tested

RB493AH
