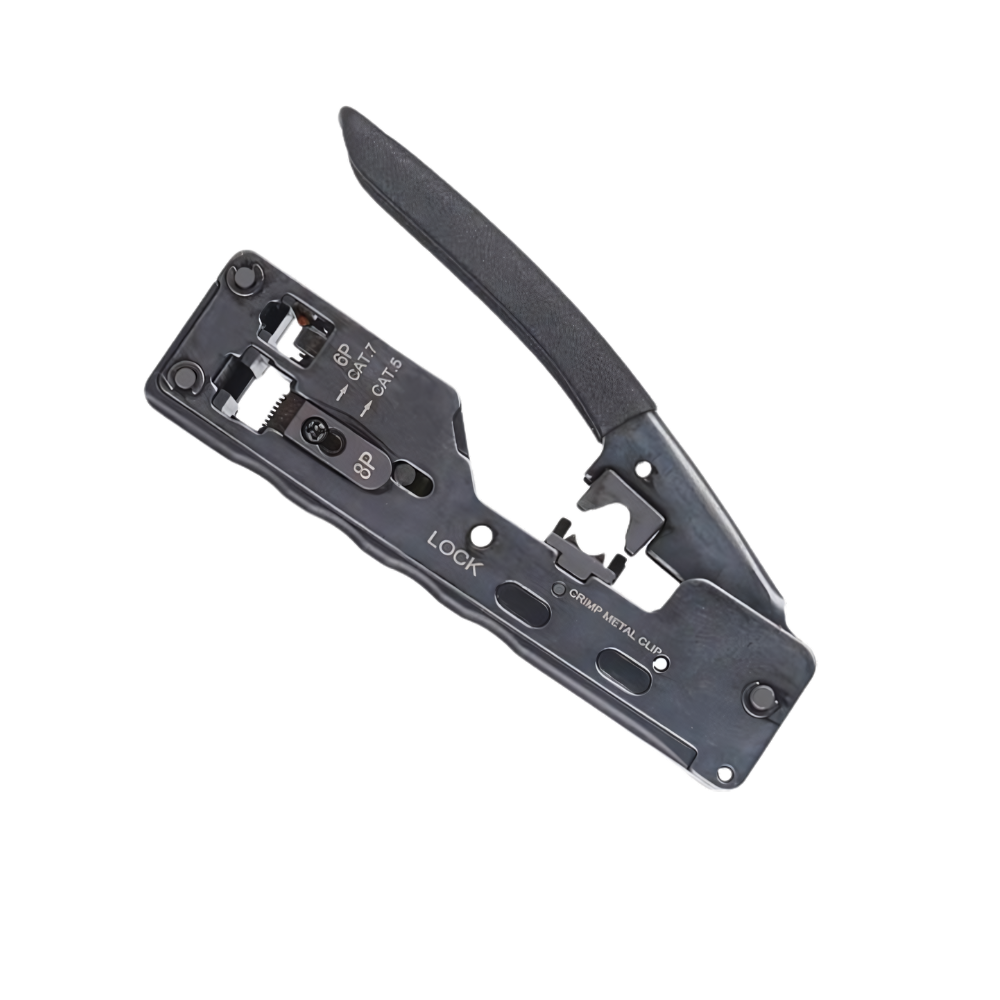

MODULAR JACK CRIMPING TOOL
1.For Crimping Modular Plug: RJ12, RJ45(CAT5E/CAT6/CAT7)
2.With Crimp Metal Clip
– Squeeze the handle and push the rear lock
cylinder to unlock the safety lock. – Put the network connector into the corresponding crimping port. – Press the handle to the end. – Remove the network connector to complete the crimp. About crimp Rj45 CAT.7
– Crimp the network connector by the same way. – Clamp the pressed network connector into the tail clamp groove. – Squeeze the handle and tighten the tail clamp. – Remove the network connector to complete the crimp
