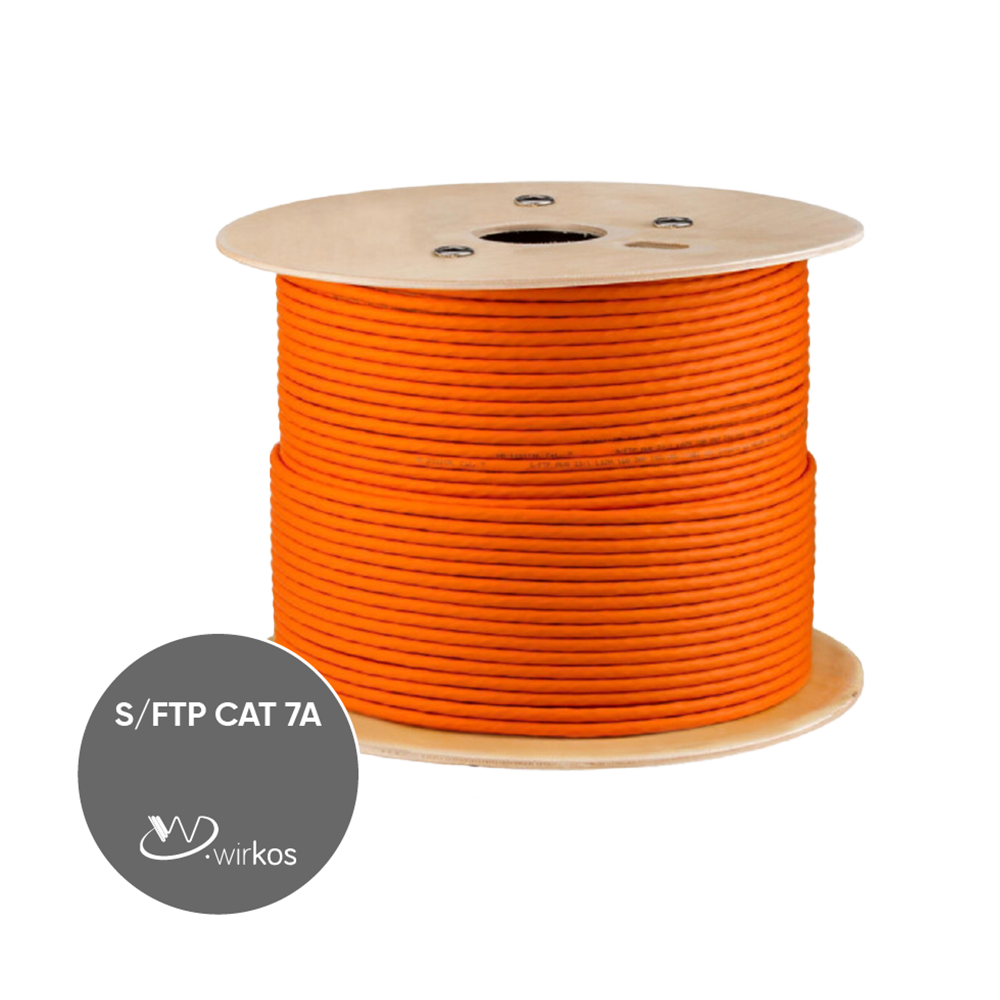

SFTP Cat 7A CU (Copper) cable is an advanced Ethernet cable designed for high-performance network installations requiring exceptional shielding against electromagnetic interference (EMI). Compliant with Category 7A standards, it supports ultra-high-speed data transmission up to 10 Gbps or higher over extended distances, making it ideal for data-intensive applications in environments such as data centers, industrial facilities, and areas with high EMI.
This cable features pure copper conductors, ensuring superior conductivity and durability for maximum performance and reliability. It utilizes advanced shielding technology including overall foil shielding (FTP – Foil Twisted Pair) and an additional braided shield (S – Shielded), effectively reducing EMI and crosstalk to maintain signal integrity and minimize signal degradation.
Packaged in a robust wooden drum, SFTP Cat 7A CU cable provides secure storage and convenient handling during installation, ensuring optimal protection and longevity. It is the preferred choice for demanding applications where superior performance, reliability, and stringent EMI shielding are critical considerations.
Application
Suitable for structured premises cabling
For transmission of digital and analogue voice and data signals.
Especially suitable for all Class FA applications.
ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3)
Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5 )
Standard
IEC 61156-5
ISO/IEC 11801
Construction
Conductors
Material ———- Solid Bare Copper
Conductors Size mm 0.58+/-0.01
Insulation
Material ———- PE(Skin-Foam-Skin)
Diameter mm 1.38+/-0.05
Average Thickness mm 0.40+/-0.05
Cabling
Direction ———- S
No. of Insulation Pair 4
Shielding Material ———- Al-Foil Screened
Drain wire Material ———- 26AWG TC
Braid Material ———- 16*6*0.12ALM
Jacket
Material ———- PVC
Diameter mm 7.7+/-0.3
Average Thickness mm 0.60+/-0.1
Flame Rate ———- ———-
