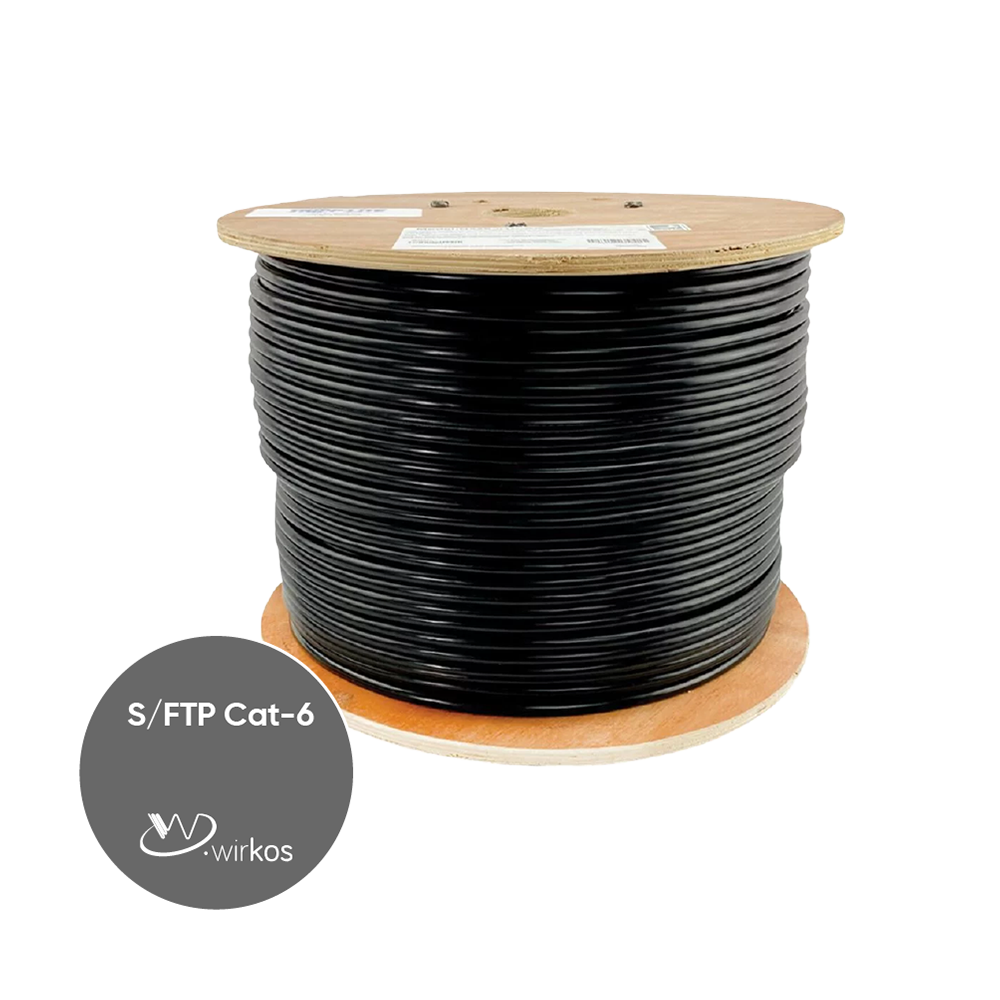

Wirkos LAN CABLE SFTP Cat-6 4Pair/0.56 Cu,


SFTP Cat 6 CU (Copper) cable is an advanced Ethernet cable designed for robust network installations requiring superior shielding against electromagnetic interference (EMI). Compliant with Category 6 standards, it supports high-speed data transmission up to 1 Gbps or higher over extended distances, making it suitable for demanding environments such as data centers, industrial settings, and areas with high EMI.

This cable features pure copper conductors, ensuring excellent conductivity and durability for optimal performance and reliability. It incorporates overall foil shielding (FTP – Foil Twisted Pair) and an additional braided shield (S – Shielded) to minimize EMI and crosstalk, enhancing signal integrity and reducing the risk of signal degradation.

Packaged in a sturdy wooden drum, SFTP Cat 6 CU cable provides ample length for extensive installations, facilitating easy handling and ensuring protection during storage and transportation. It is an ideal choice for applications where robust performance, reliability, and EMI protection are essential requirements.

Kodi i produktit : 3289 Kategori:

CABLE CONSTRUCTION
Solid bare copper / 4Pairs
O.D.: 0.56±0.008m
INSULATION:
HDPE
Electrical Characteristics(20℃)
O.D.: 1.10±0.05mm PE
4 twisted pairs: Orange/white-orange; Blue/white-blue; Resistance unbalance ≤ 2%
Green/white-green; Brown/white-brown
CENTER CROSS : YES
PET : YES
DRAIN WIRE : 0.40MM
AI FOIL SCREEN : YES
BRAIDING SCREEN : YES
RIP CORD : YES
JACKET
:
PVC
O.D.: 7.5+-0.2MM
Thickness : 0.6+- 0.1mm
APPLICATION
Primary(Campus),Secondary(Riser),Tertiary(Horizontal)
IEEE802.3: 10 Base-T ; 100 Base-T ; 1000 Base-t ; 1G Base-t ;
IEEE802.5 16MB ; RDSI/ISDN; 100 Mbps TPDDI; 155 Mbps ATM
