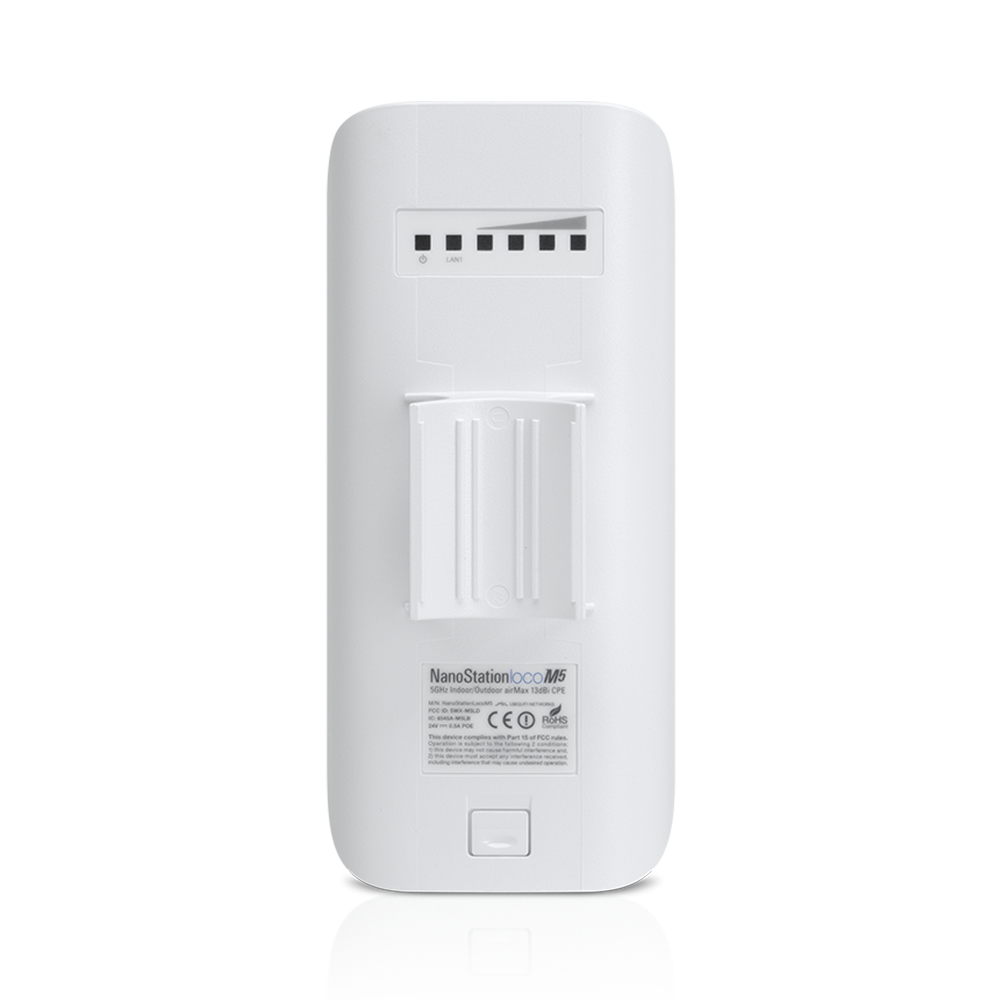

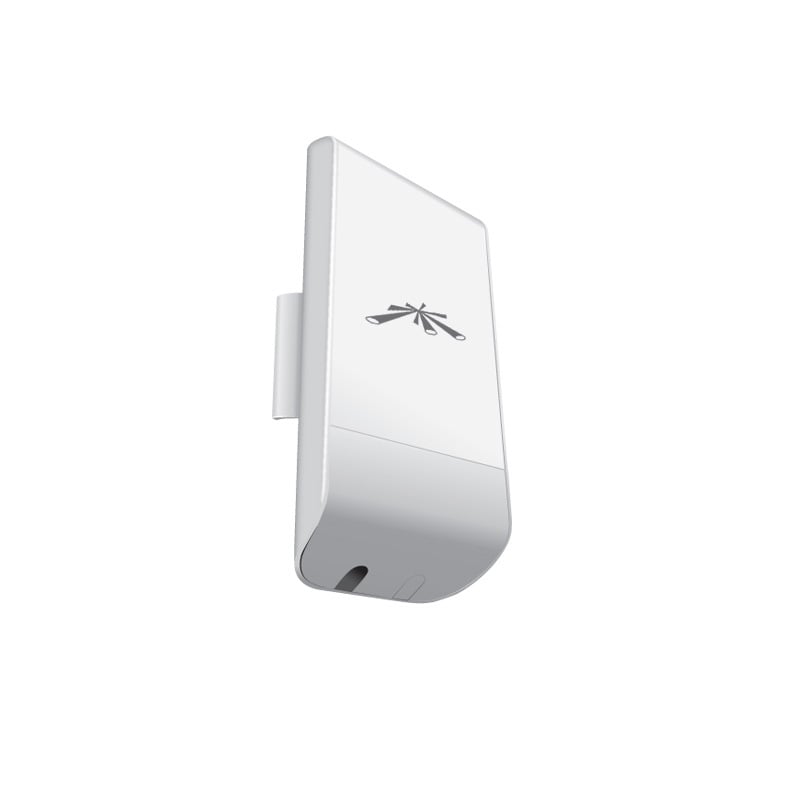

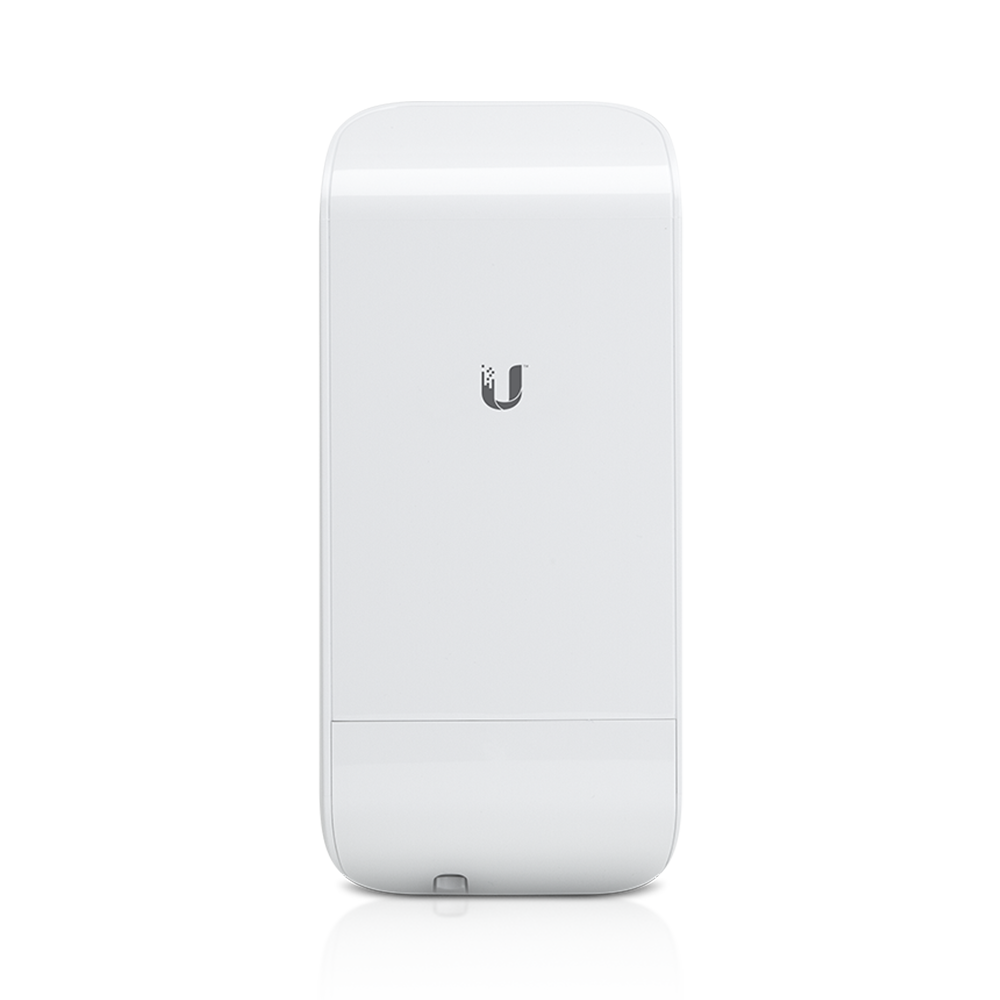

NanoStation Loco M5
69.23 €
LOCO-M5
- 5 GHz Operating Frequency

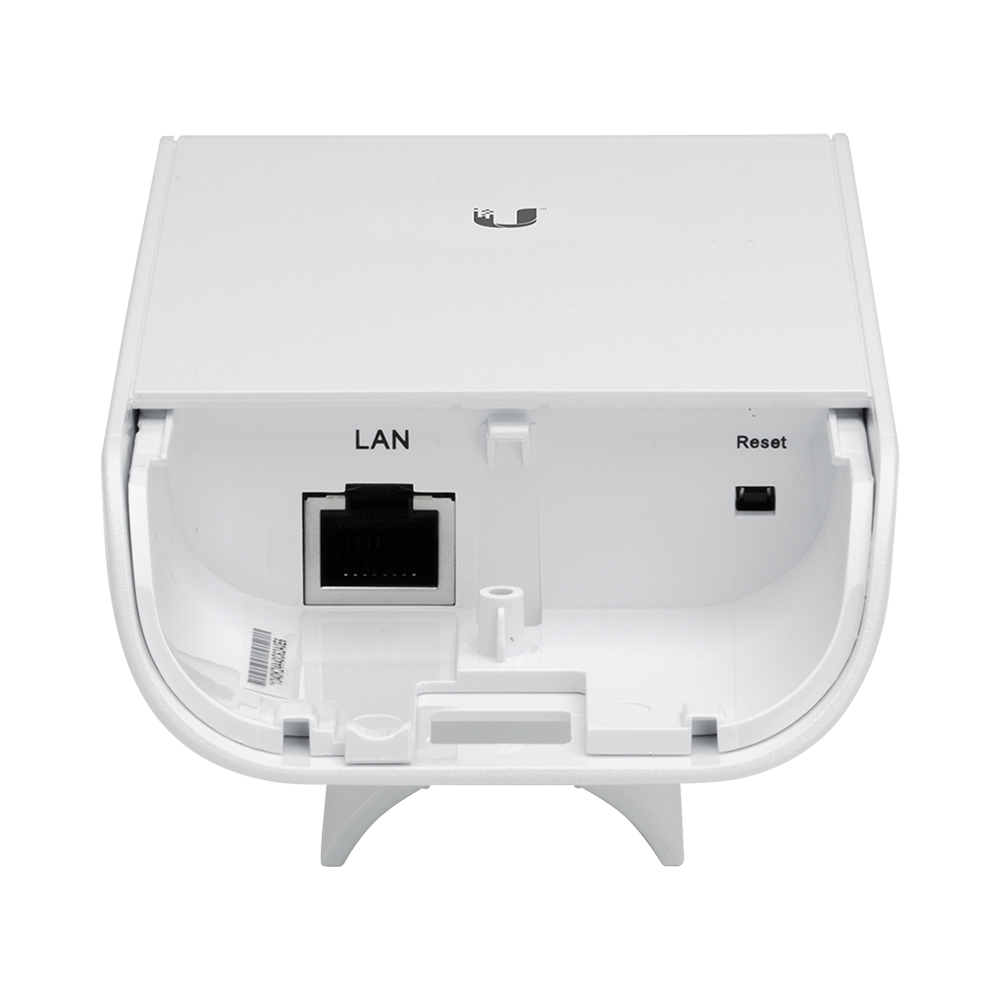

- 1 x 10/100 Ethernet Port
- 13 dBi Antenna Gain
- Supports Point-to-Multipoint Setup
- 560 MHz Atheros Processor
- 64MB DDR2 RAM | 8MB Flash Memory
- PoE Adapter Included
- Outdoor UV-Stabilized Plastic Enclosure
- Includes Pole Mount
With the 5 GHz airMAX NanoStationlocoM from Ubiquiti Networks, you can provide your clients with reliable long-range network connections. Designed to support both Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) configurations, this Customer Premises Equipment (CPE) loco station features a panel antenna with dual-polarity 13 dBi gain to communicate with wireless devices over the 5 GHz signal band frequency. It also includes a 560 MHz Atheros MIPS 74Kc processor with 64MB of DDR2 memory and 8MB of flash storage, which can all be powered by connecting the included power-over-Ethernet (PoE) adapter to the 10/100 Mb/s Ethernet port to carry both data and power over a single cable. With its UV-stabilized plastic enclosure, the airMAX NanoStationloco M2 may be attached onto a pole with the included mount. Use the airOS software to configure and manage the airMAX NanoStationlocoM and its connected devices.
| Category | Specification |
|---|---|
| Dimensions | 161 × 31 × 80 mm (6.3 × 1.2 × 3.2") |
| Weight | 180 g (6.4 oz) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount (kit included) |
| Networking Interface | 1 × 10/100 MbE RJ45 port |
| Power Method | Passive PoE 2-pair (4,5+; 7,8 return) |
| Power Supply | 24V, 0.5A PoE adapter (included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 5.5 W |
| Operating Temperature | -30 to 75 °C (-22 to 167 °F) |
| Operating Humidity | 5–95% non-condensing |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | FCC, IC, CE, RoHS |
| NDAA Compliant | Yes |
| Operating Frequency Band | 5 GHz |
| Frequency Range (Worldwide) | 5170–5875 MHz |
| Frequency Range (US) | 5725–5850 MHz |
| Frequency Range (USA DFS) | 5250–5850 MHz |
| Antenna Gain | 13 dBi |
| Cross-Polar Isolation | ≥ 20 dB |
| Max. VSWR | 1.4 : 1 |
| Beamwidth | 45° (H) / 45° (V) / 45° (Elevation) |
| Polarization | Dual linear |
