Mikrotik, RouterBoard
RB433GL

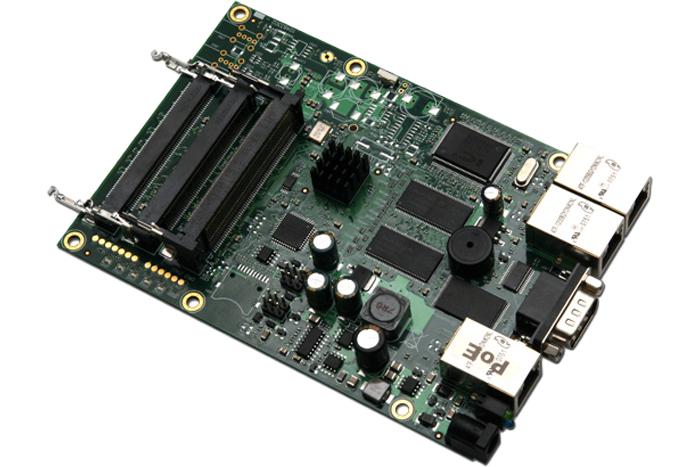

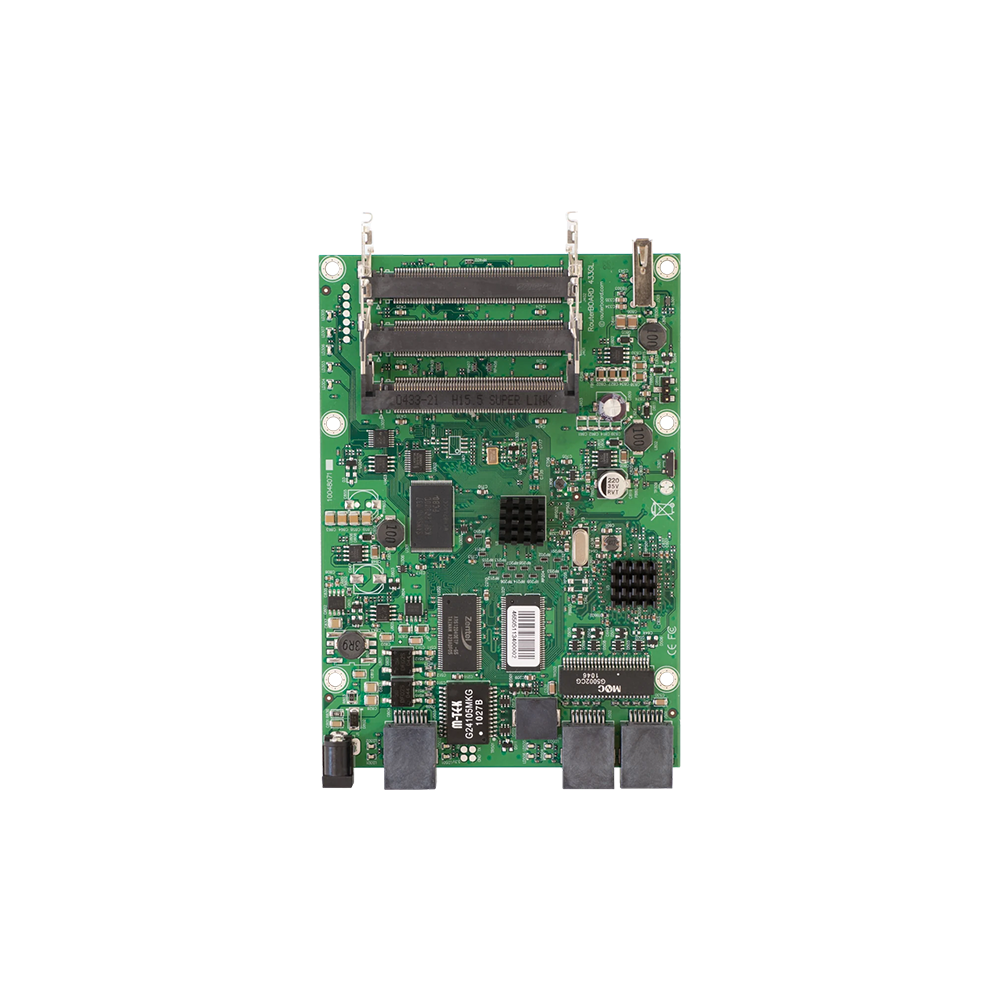

RB433GL – RouterBOARD 433GL with 680MHz Atheros CPU, 128MB RAM, 3 Gigabit LAN, 3 miniPCI, USB, RouterOS L5
The RB433GL has three miniPCI slots, three Gigabit Ethernet ports and one USB port for storage or a 3G modem.
Three Gigabit Ethernet ports and three miniPCI slots gives you plenty of options- it can be high speed Gigabit Router, sector AP, wireless backhaul, firewall etc. Powerful Atheros 680MHz CPU, 128MB of RAM and Level5 RouterOS license provides required horsepower.
Differences between RB433GL and RB433AH can be seen in the file (RB411L differences) in the left hand menu.
Product specifications
| Details | |
|---|---|
| Product code | RB433GL |
| CPU nominal frequency | 680 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| Architecture | AR7161 |
| 10/100/1000 Ethernet ports | 3 |
| MiniPCI slots | 3 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 8 V – 28 V |
| Voltage Monitor | Yes |
| Dimensions | 105 mm x 154 mm, |
| Operating System | RouterOS |
| Tested ambient temperature | -40°C .. 70°C tested |
| License level | 5 |
| CPU | AR7161 |
| USB slot type | USB type A |
| Storage type | NAND |
| Storage size | 64 MB |
